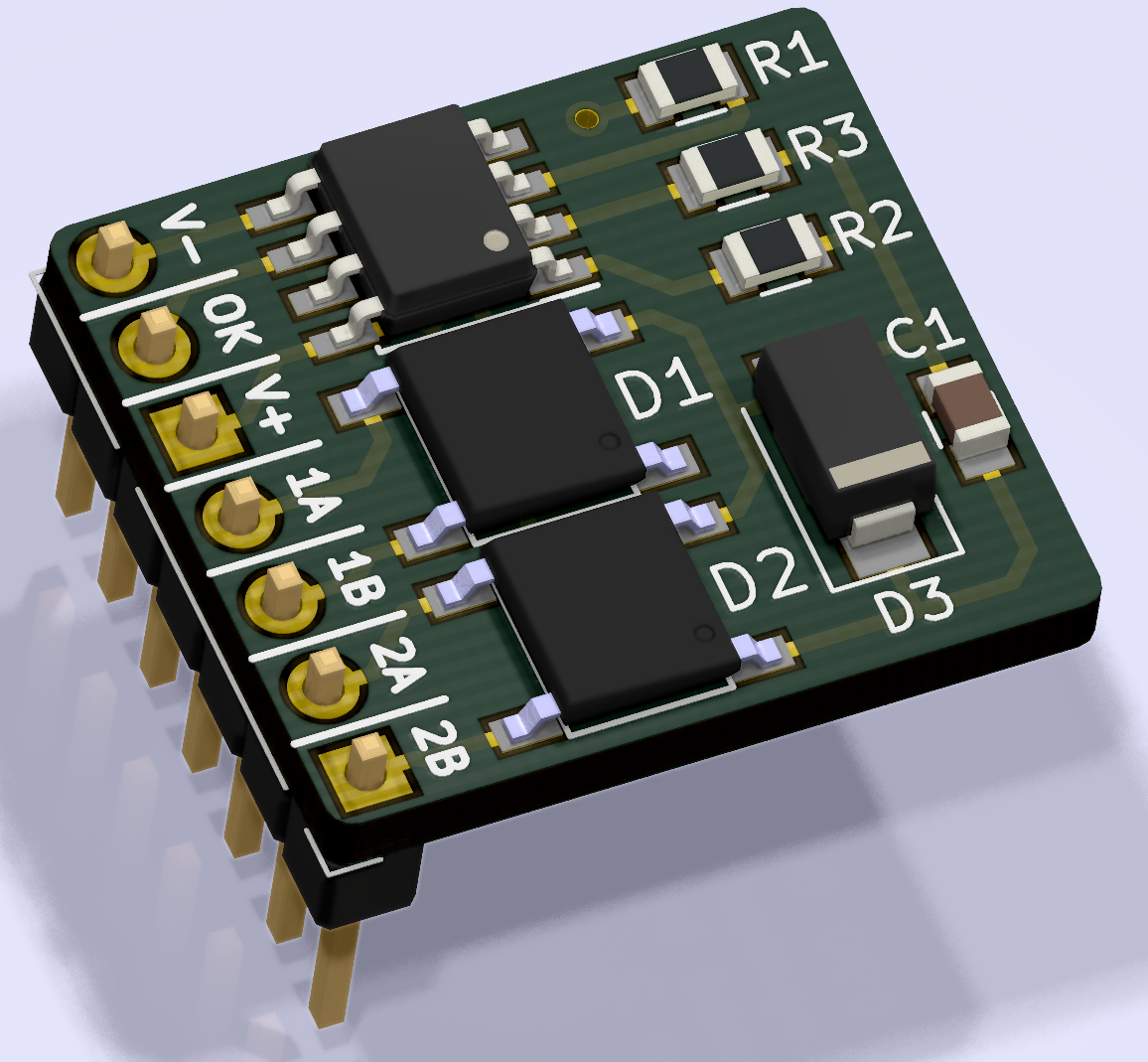

About the DevBoard NCP1090 PCB
DevBoard NCP1090 is an open source PCB design by newAM, published on GitHub under the MIT license. It is a 2-layer board measuring 19.7 × 17.8 mm, with 10 components from 9 distinct parts.
Other key parts include the NCP1090. By type, the board carries 3 diodes, 3 resistors, 2 crystals, 1 IC and 1 capacitor.
It belongs with the dev boards & breakouts designs in this gallery.
From the project
NCP1090 802.3af power over Ethernet development board
This project is a development board for the NCP1090 802.3af power over Ethernet controller.

Main components on the DevBoard NCP1090
DevBoard NCP1090 bill of materials (BOM)
10 components, 9 distinct parts.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | NCP1090 | SOIC-8_3.9x4.9mm_Pitch1.27mm | U1 |
| 1 | Conn_01x04 | Pin_Header_Straight_1x04_Pitch2.54mm | X1 |
| 1 | Conn_01x03 | Pin_Header_Straight_1x03_Pitch2.54mm | X2 |
| 2 | MDB6S | Micro-DIP-4 | D1, D2 |
| 1 | SMAJ58A | D_SMA | D3 |
| 1 | 100n | C_0805 | C1 |
| 1 | 24.9k | R_0805 | R1 |
| 1 | 178k | R_0805 | R2 |
| 1 | 4420 | R_0805 | R3 |
DevBoard NCP1090 design files
The KiCad project lives in the newAM/DevBoard_NCP1090 repository on GitHub; these links point at the commit this page was built from.
DevBoard NCP1090: common questions
How big is the DevBoard NCP1090 PCB?
The DevBoard NCP1090 measures 19.7 × 17.8 mm, has 2 copper layers and is 1.6 mm thick.
How many components are on the DevBoard NCP1090?
10 components, from 9 distinct parts. The full bill of materials is listed on this page.
Where can I download the DevBoard NCP1090 design files?
From the newAM/DevBoard_NCP1090 repository on GitHub, which has the KiCad layout; the links under Design files point to each one.
Can I use the DevBoard NCP1090 design in my own project?
Yes, under the terms of its MIT license, which newAM chose for the repository.
