About the Poe addon PCB
Poe addon is an open source PCB design by newAM, published on GitHub under the CERN-OHL-P-2.0 license. It is a 2-layer board measuring 52.3 × 28.4 mm, with 38 components from 24 distinct parts.
Other key parts include the 25AA02E48T-I_OT, NCP1090, PG02S4803A and W5500. By type, the board carries 15 capacitors, 11 resistors, 4 ICs, 4 crystals, 3 diodes and 1 inductor.
From the project

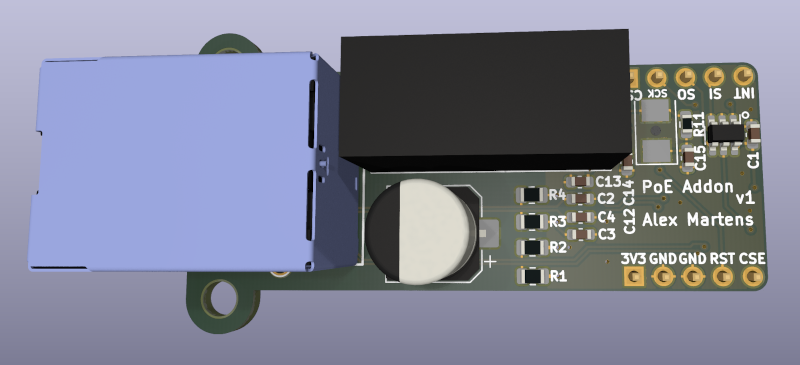

Simple board to add power over Ethernet to a project
Simple board to add power over Ethernet to a project.
This uses the [Wiznet W5500] for TCP/IP offload, and a [Microchip 25AA02E48] for a valid EUI-48 MAC address.
A bill of materials generated by [InteractiveHtmlBom] can be viewed at
[InteractiveHtmlBom]: https://github.com/openscopeproject/InteractiveHtmlBom/issues [Wiznet W5500]: https://www.wiznet.io/product-item/w5500/ [Microchip 25AA02E48]: http://ww1.microchip.com/downloads/en/devicedoc/22123a.pdf
Main components on the Poe addon
Poe addon bill of materials (BOM)
38 components, 24 distinct parts.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | 25AA02E48T-I_OT | SOT-23-6 | U1 |
| 1 | NCP1090 | SOIC-8_3.9x4.9mm_P1.27mm | U2 |
| 1 | PG02S4803A | PG02S | U3 |
| 1 | W5500 | LQFP-48_7x7mm_P0.5mm | U4 |
| 1 | ARJM11-104 | ARJM11D7-104-AB-EW2 | X1 |
| 2 | Conn_01x05_Male | PinHeader_1x05_P2.54mm_Vertical | X2, X3 |
| 1 | 25MHz | Crystal_SMD_5032-2Pin_5.0x3.2mm | Y1 |
| 2 | MDB6S | Micro-DIP-4 | D1, D2 |
| 1 | SMAJ58A | D_SMA | D3 |
| 1 | 1u | L_0603_1608Metric | L1 |
| 6 | 100n | C_0603_1608Metric | C1, C3, C5, C9, C10, C11 |
| 3 | 10n | C_0603_1608Metric | C2, C4, C12 |
| 1 | 100n | C_0805_2012Metric | C6 |
| 1 | 27u | CP_Elec_8x10.5 | C7 |
| 1 | 10u | C_0805_2012Metric | C8 |
| 1 | 4.7u | C_0603_1608Metric | C13 |
| 2 | 20p | C_0603_1608Metric | C14, C15 |
| 4 | 49.9 | R_0805_2012Metric | R1, R2, R3, R4 |
| 1 | 24.9k | R_0603_1608Metric | R5 |
| 1 | 178k | R_0603_1608Metric | R6 |
Show 4 more
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | 4420 | R_0603_1608Metric | R7 |
| 1 | 12.4k | R_0603_1608Metric | R8 |
| 2 | 2.2k | R_0603_1608Metric | R9, R10 |
| 1 | 1M | R_0603_1608Metric | R11 |
Poe addon design files
The KiCad project lives in the newAM/poe-addon repository on GitHub; these links point at the commit this page was built from.
- Layoutpoe-addon.kicad_pcb
- Schematicpoe-addon.kicad_sch
