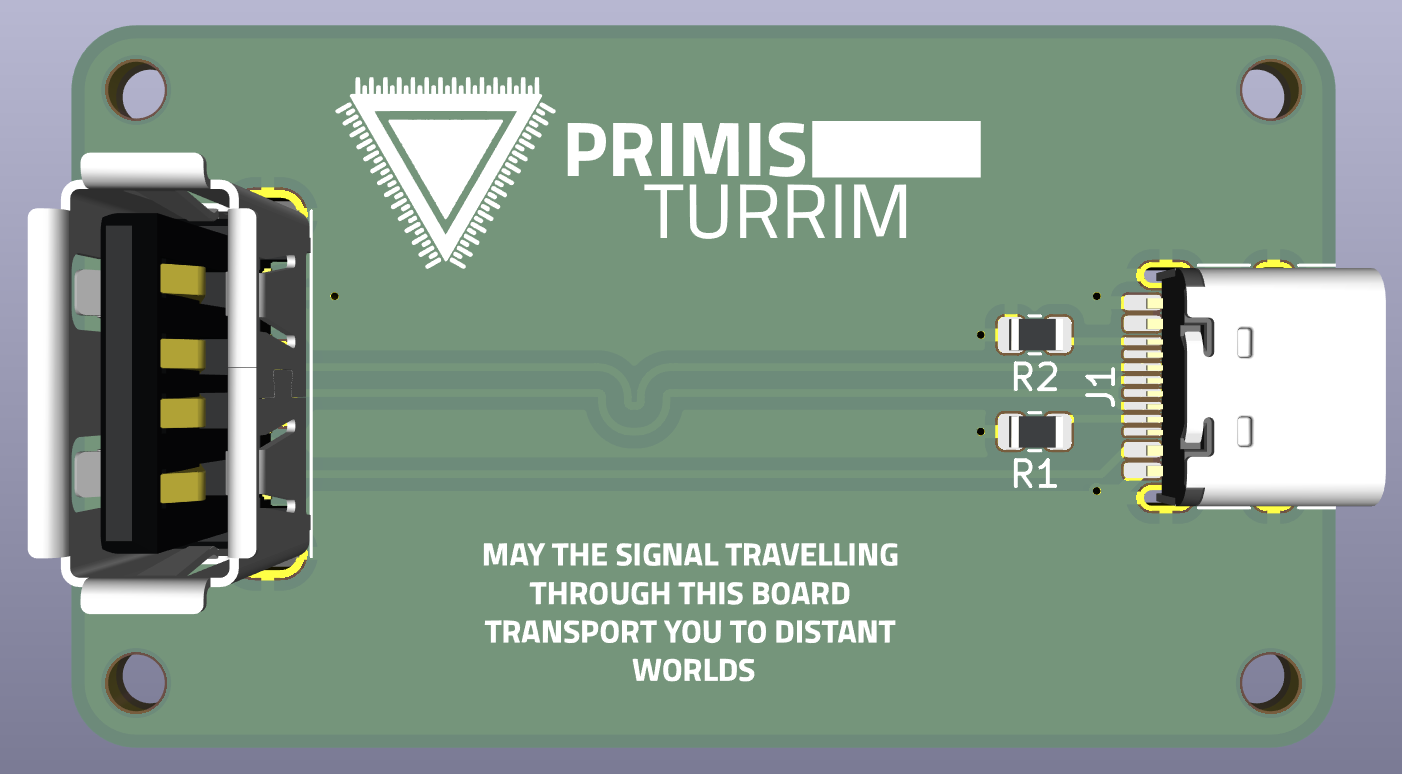

TurrimX1
About the TurrimX1 PCB
TurrimX1 is an open source PCB design by Nieko27, published on GitHub under the CERN-OHL-S-2.0 license. It is a 2-layer board measuring 49 × 28 mm, with 4 components from 3 distinct parts.
By type, the board carries 2 connectors and 2 resistors.
From the project
A repo for all things steam frame hardware.
TurrimX1 bill of materials (BOM)
4 components, 3 distinct parts — part numbers from the project's BOM.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | USB_C_RECEPTACLE_USB2.0_16P USB_C_Receptacle_USB2.0_16P | USB_C_Receptacle_HRO_TYPE-C-31-M-12 | J1 |
| 1 | USB_A | USB_A_Molex_105057_Vertical | J2 |
| 2 | 5.1K | R_0805_2012Metric | R1, R2 |
TurrimX1 design files
The KiCad project lives in the Nieko27/Frame-Workshop repository on GitHub; these links point at the commit this page was built from.
TurrimX1: common questions
How big is the TurrimX1 PCB?
The TurrimX1 measures 49 × 28 mm, has 2 copper layers and is 1.6 mm thick.
How many components are on the TurrimX1?
4 components, from 3 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.
Where can I download the TurrimX1 design files?
From the Nieko27/Frame-Workshop repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.
Can I use the TurrimX1 design in my own project?
Yes, under the terms of its CERN-OHL-S-2.0 license, which Nieko27 chose for the repository.
