Primis Versipellis
Nieko27·Frame-Workshop·KICAD Projects/Primis_Versipellis/Primis_Versipellis.kicad_pcb
About the Primis Versipellis PCB

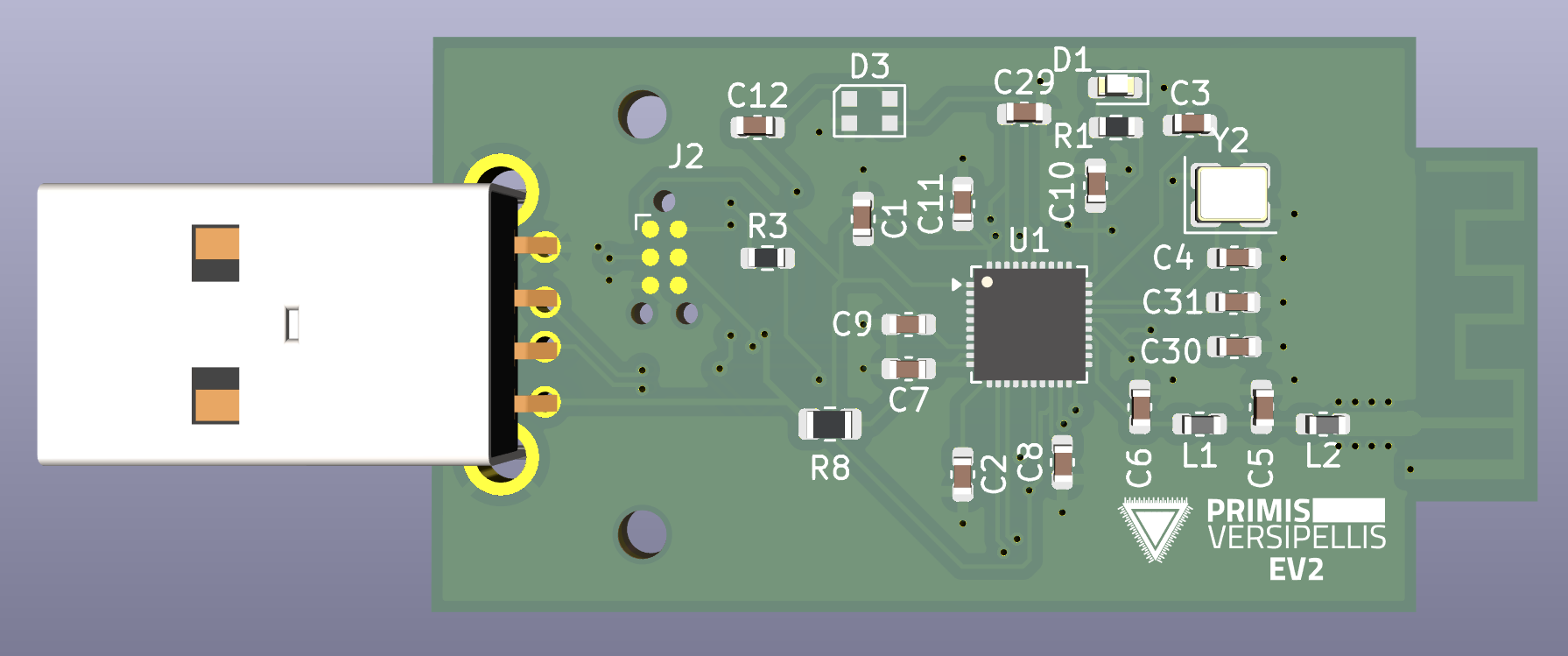

Primis Versipellis is an open source Nordic nRF PCB design by Nieko27, published on GitHub under the CERN-OHL-S-2.0 license. It is a 2-layer board measuring 50 × 26 mm, with 25 components from 18 distinct parts.
Its main chip is the NRF52833_QDXX, from the Nordic nRF family. By type, the board carries 15 capacitors, 3 resistors, 2 diodes, 2 inductors, 1 IC and 1 crystal.
From the project
A repo for all things steam frame hardware.

Main components on the Primis Versipellis
Primis Versipellis bill of materials (BOM)
25 components, 18 distinct parts — part numbers from the project's BOM.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | NRF52833_QDXX nRF52833_QDxx | QFN-40-1EP_5x5mm_P0.4mm_EP3.6x3.6mm | U1 |
| 1 | CRYSTAL_GND24 Crystal_GND24 | Crystal_SMD_Abracon_ABM8G-4Pin_3.2x2.5mm | Y2 |
| 1 | USB-05 | USB05 | J1 |
| 1 | LED | LED_0603_1608Metric | D1 |
| 1 | WS2812B-2020 | LED_WS2812B-2020_PLCC4_2.0x2.0mm | D3 |
| 1 | 4.7NH 4.7nH | L_0603_1608Metric | L1 |
| 1 | 2.2NH 2.2nH | L_0603_1608Metric | L2 |
| 4 | 100NF 100nF | C_0603_1608Metric | C1, C8, C10, C12 |
| 3 | 4.7UF 4.7uF | C_0603_1608Metric | C2, C7, C9 |
| 2 | 12PF 12pF | C_0603_1608Metric | C3, C4 |
| 1 | 1.2PF 1.2pF | C_0603_1608Metric | C5 |
| 1 | 1.0PF 1.0pF | C_0603_1608Metric | C6 |
| 2 | 1.0UF 1.0uF | C_0603_1608Metric | C11, C29 |
| 1 | N.C. | C_0603_1608Metric | C30 |
| 1 | 100PF 100pF | C_0603_1608Metric | C31 |
| 1 | 1.0K 1.0k | R_0603_1608Metric | R1 |
| 1 | 10K 10k | R_0603_1608Metric | R3 |
| 1 | 2R2 | R_0805_2012Metric | R8 |
Primis Versipellis design files
The KiCad project lives in the Nieko27/Frame-Workshop repository on GitHub; these links point at the commit this page was built from.
Primis Versipellis: common questions
What microcontroller does the Primis Versipellis use?
The Primis Versipellis is built around the NRF52833_QDXX, from the Nordic nRF family.
How big is the Primis Versipellis PCB?
The Primis Versipellis measures 50 × 26 mm, has 2 copper layers and is 1.6 mm thick.
How many components are on the Primis Versipellis?
25 components, from 18 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.
Where can I download the Primis Versipellis design files?
From the Nieko27/Frame-Workshop repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.
Can I use the Primis Versipellis design in my own project?
Yes, under the terms of its CERN-OHL-S-2.0 license, which Nieko27 chose for the repository.
Can I test firmware for the Primis Versipellis without the hardware?
Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug Nordic nRF firmware against it before you order a PCB.
