Primis VeriMini PCB layout, top view — open source Nordic nRF board by Nieko27
Simulate this board

About the Primis VeriMini PCB

Primis VeriMini is an open source Nordic nRF PCB design by Nieko27, published on GitHub under the CERN-OHL-S-2.0 license. It is a 2-layer board measuring 40.9 × 24.5 mm, with 25 components from 18 distinct parts.

Its main chip is the NRF52833_QDXX, from the Nordic nRF family. By type, the board carries 15 capacitors, 3 resistors, 2 diodes, 2 inductors, 1 IC and 1 crystal.

From the project

A repo for all things steam frame hardware.

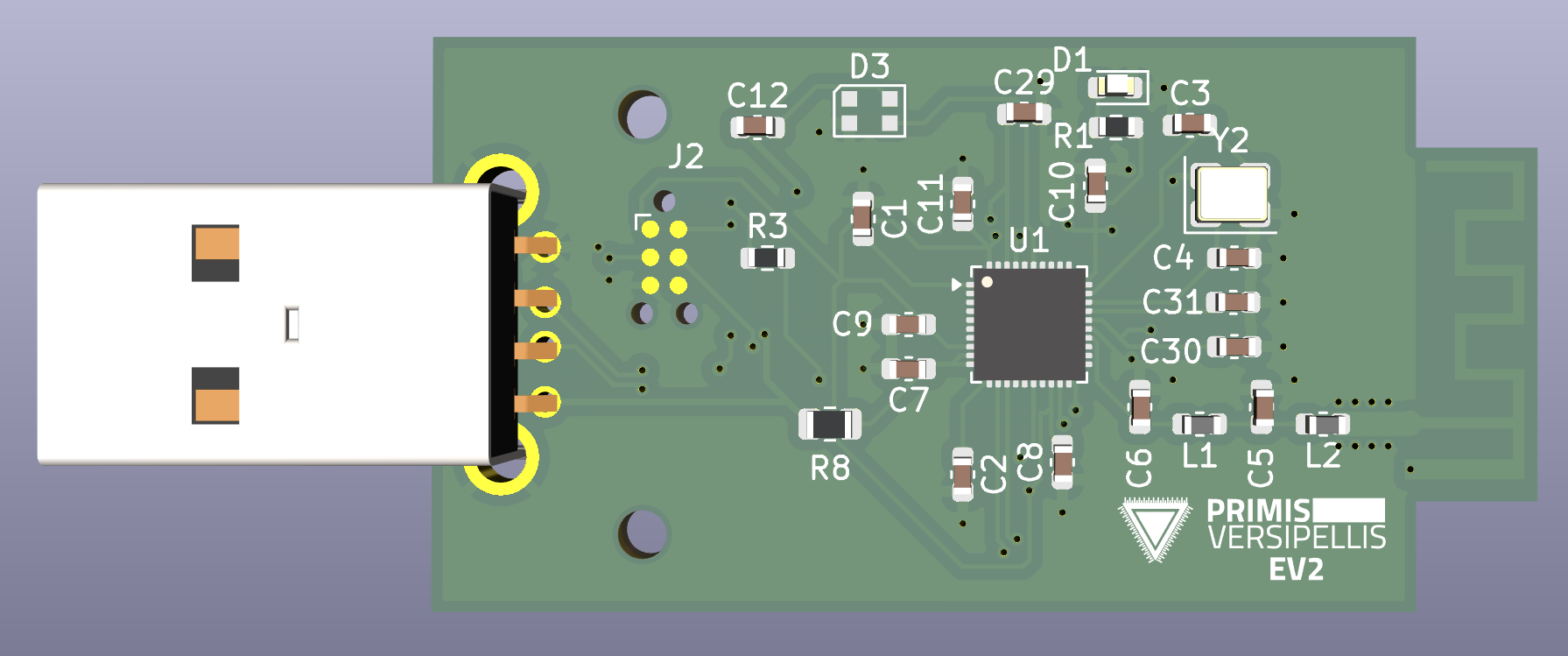

Primis VeriMini, from the project README
From the project README

Main components on the Primis VeriMini

NRF52833_QDXX

Primis VeriMini bill of materials (BOM)

25 components, 18 distinct parts — part numbers from the project's BOM.

QtyPartRefs
1
NRF52833_QDXX
nRF52833_QDxx
U1
1
CRYSTAL_GND24
Crystal_GND24
Y2
1
USB-05
J1
1
LED
D1
1
WS2812B-2020
D3
1
4.7NH
4.7nH
L1
1
2.2NH
2.2nH
L2
4
100NF
100nF
C1, C8, C10, C12
3
4.7UF
4.7uF
C2, C7, C9
2
12PF
12pF
C3, C4
1
1.2PF
1.2pF
C5
1
1.0PF
1.0pF
C6
2
1.0UF
1.0uF
C11, C29
1
N.C.
C30
1
100PF
100pF
C31
1
1.0K
1.0k
R1
1
10K
10k
R3
1
2R2
R8

Primis VeriMini design files

The KiCad project lives in the Nieko27/Frame-Workshop repository on GitHub; these links point at the commit this page was built from.

Primis VeriMini: common questions

What microcontroller does the Primis VeriMini use?

The Primis VeriMini is built around the NRF52833_QDXX, from the Nordic nRF family.

How big is the Primis VeriMini PCB?

The Primis VeriMini measures 40.9 × 24.5 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the Primis VeriMini?

25 components, from 18 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.

Where can I download the Primis VeriMini design files?

From the Nieko27/Frame-Workshop repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.

Can I use the Primis VeriMini design in my own project?

Yes, under the terms of its CERN-OHL-S-2.0 license, which Nieko27 chose for the repository.

Can I test firmware for the Primis VeriMini without the hardware?

Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug Nordic nRF firmware against it before you order a PCB.
