NC-IFM
About the NC-IFM PCB

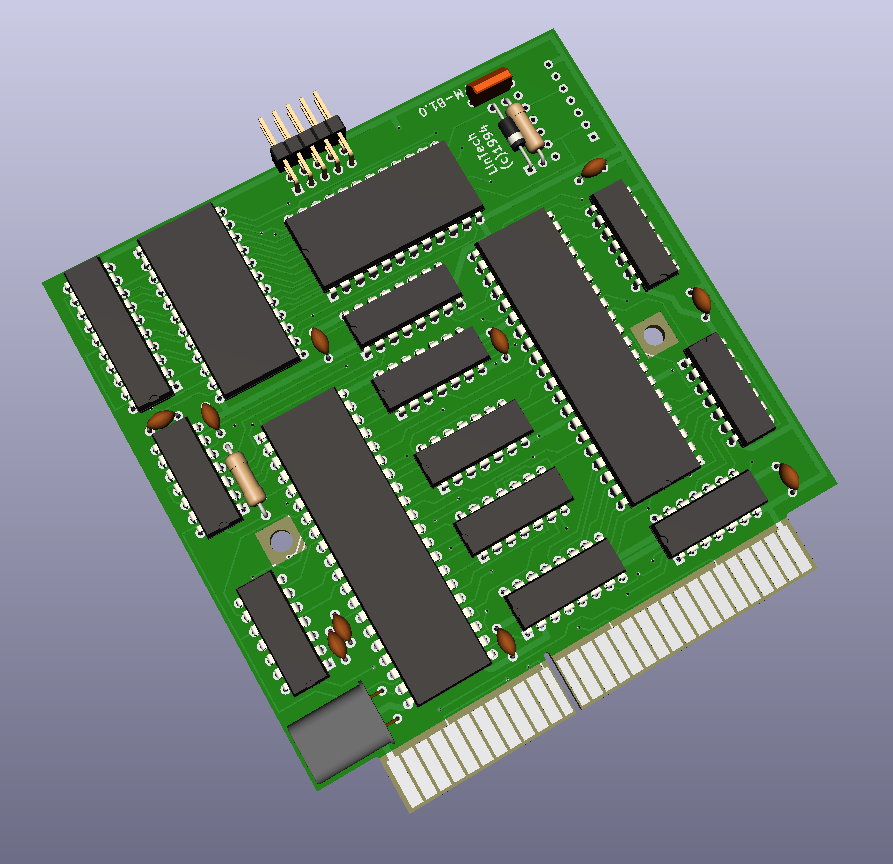

NC-IFM is an open source PCB design by nightgryphon, published on GitHub under the Apache-2.0 license. It is a 2-layer board measuring 97 × 102.5 mm, with 34 components from 27 distinct parts.
By type, the board carries 10 capacitors, 2 resistors, 1 transistor, 1 crystal, 1 connector and 1 jumper.
It belongs with the retro computing designs in this gallery.
From the project
Reconstructing USSR school retro PC network by LInTech
Плата воссоздана Night Gryphon по имеющемуся у него в наличии оригиналу платы.
Прошивка платы маркирована "КЛС-ТМ-BD1 П1 В1 Т03"
Содержание: - KiCad - исходный проект реконструкции платы в формате KiCad - Gerbers - GERBER файлы для изготовления реплики - LinTech-UKNC-board-BOM.html - BOM, список компонентов - LinTech-UKNC-board.pdf - реконструированая схема платы - Firmware - микропрограмма контроллера Intel 8031 - Reference_Photo - фото платы
NC-IFM bill of materials (BOM)
34 components, 27 distinct parts.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | КТ315Г | PinHeader_1x03_P2.54mm_Vertical | Q1 |
| 1 | 12MHz | Crystal_HC18-U_Horizontal | Y1 |
| 1 | ~ | UKNC-CA | J1 |
| 1 | i8031 | DIP-40_W15.24mm | DD1 |
| 1 | 1533LA3 | DIP-14_W7.62mm | DD2 |
| 1 | 1533LA9 | DIP-14_W7.62mm | DD3 |
| 1 | 537RU10 | DIP-24_W15.24mm | DD5 |
| 1 | 573RF5 | DIP-24_W15.24mm | DD6 |
| 1 | 555ID4 | DIP-16_W7.62mm | DD7 |
| 1 | 1533LN1 | DIP-14_W7.62mm | DD8 |
| 1 | 1533IR22 | DIP-20_W7.62mm | DD9 |
| 1 | 555TM2 | DIP-14_W7.62mm | DD10 |
| 1 | 555LN1 | DIP-14_W7.62mm | DD11 |
| 1 | 1533KP11 | DIP-16_W7.62mm | DD12 |
| 1 | 580VV55A | DIP-40_W15.24mm | DD13 |
| 1 | 1533LA2 | DIP-14_W7.62mm | DD14 |
| 1 | 155LP9 | DIP-14_W7.62mm | DD15 |
| 1 | 1533LE4 | DIP-14_W7.62mm | DD16 |
| 1 | Jumper_3_Bridged12 | Jumper_3_Bridged12 | JP1 |
| 1 | ОНП-КГ-56-10/33х7,4-В53 | PinHeader_2x05_P2.54mm_Horizontal | LAN1 |
Show 7 more
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | ~ | DIP-14_W7.62mm | WS1 |
| 1 | КД522Б | D_A-405_P12.70mm_Horizontal | D1 |
| 2 | 18pf | C_Disc_D5.0mm_W2.5mm_P5.00mm | C1, C2 |
| 1 | 160pf | C_Disc_D5.0mm_W2.5mm_P5.00mm | C3 |
| 7 | 150nf | C_Disc_D5.0mm_W2.5mm_P5.00mm | C4, C5, C6, C7, C8, C9, C10 |
| 1 | 15K | R_Axial_DIN0309_L9.0mm_D3.2mm_P12.70mm_Horizontal | R1 |
| 1 | 4K3 | R_Axial_DIN0309_L9.0mm_D3.2mm_P12.70mm_Horizontal | R2 |
NC-IFM design files
The KiCad project lives in the nightgryphon/LInTech-network repository on GitHub; these links point at the commit this page was built from.
NC-IFM: common questions
How big is the NC-IFM PCB?
The NC-IFM measures 97 × 102.5 mm, has 2 copper layers and is 1.6 mm thick.
How many components are on the NC-IFM?
34 components, from 27 distinct parts. The full bill of materials is listed on this page.
Where can I download the NC-IFM design files?
From the nightgryphon/LInTech-network repository on GitHub, which has the KiCad layout; the links under Design files point to each one.
Can I use the NC-IFM design in my own project?
Yes, under the terms of its Apache-2.0 license, which nightgryphon chose for the repository.
