Ir spoke link.

niklasdathe·IRBicycleWheelSpeedSensor·hardware/ir_spoke_link/ir_spoke_link.layout.kicad_pcb

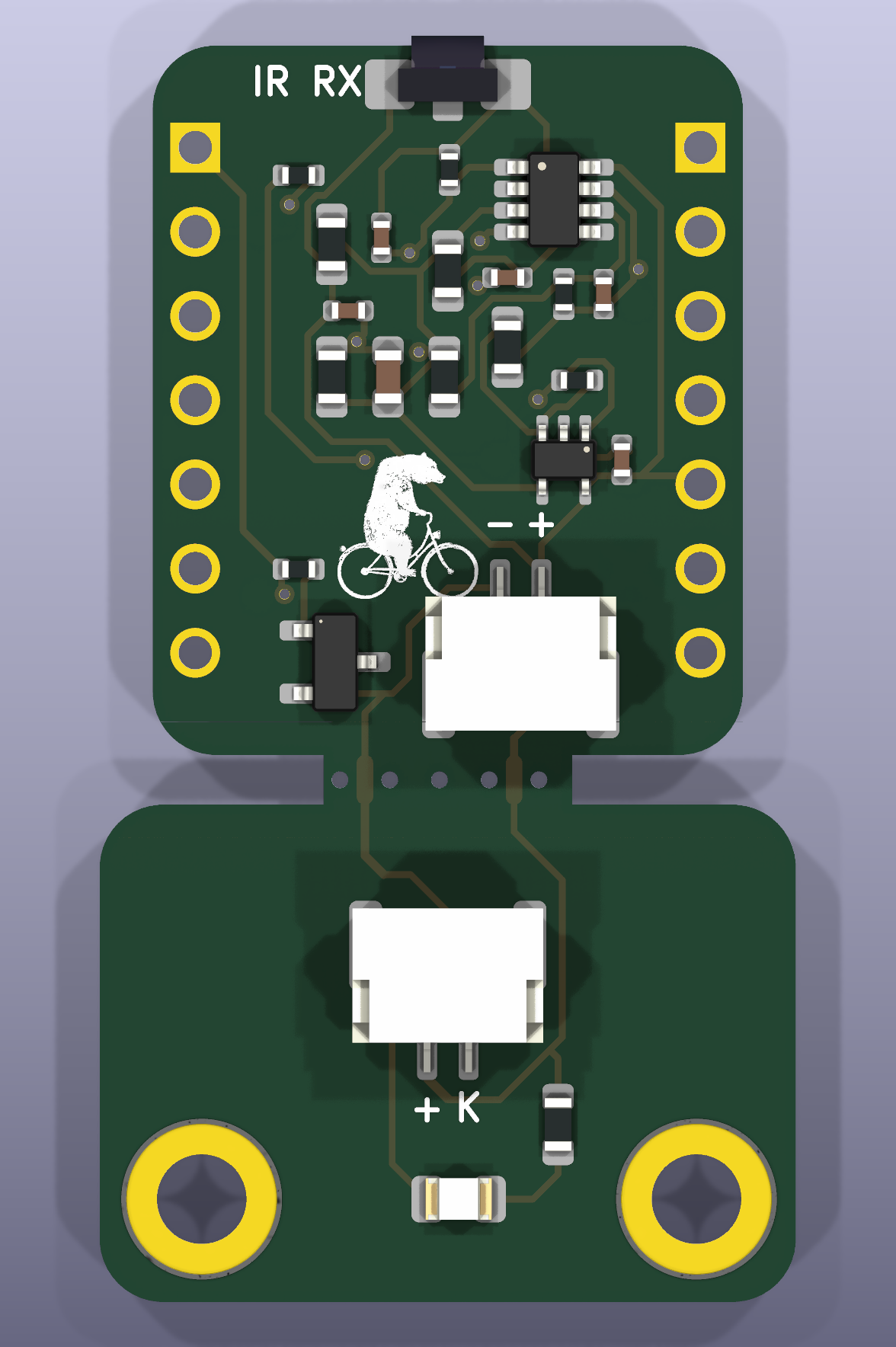

Ir spoke link. PCB layout, top view — open source board by niklasdathe

About the Ir spoke link. PCB

Ir spoke link. is an open source PCB design by niklasdathe, published on GitHub. It is a 2-layer board measuring 21 × 37.9 mm, with 26 components from 22 distinct parts.

Other key parts include the TLV9062IDDFR and TLV7011DCKR. By type, the board carries 11 resistors, 6 capacitors, 4 connectors, 2 ICs, 2 diodes and 1 transistor.

It belongs with the sensors and iot & wireless designs in this gallery.

From the project

Configurable 940 nm IR spoke sensor with KiCad 10 hardware, linked Python/ngspice simulation, ESP-IDF RMT firmware, and JLCPCB exports.

Configurable 940 nm through-beam spoke sensor for a Seeed Studio XIAO ESP32-S3. A discrete analog front end restores a 25-50 kHz optical carrier; ESP-IDF RMT detects its interruption and learns the wheel's spoke pattern.

This repository is the wheel-speed-sensor subsystem of BicycleOBU. The online Interactive BOM is generated directly from the authoritative KiCad PCB.

Ir spoke link., from the project README
From the project README

Main components on the Ir spoke link.

TLV9062IDDFRTLV7011DCKR

Ir spoke link. bill of materials (BOM)

26 components, 22 distinct parts — part numbers from the project's BOM.
