Spotify macro pad thingy

nikunj-Swarnkar·Spotify_macro_pad_thingy·pcb/hackerpad_9000.kicad_pcb

Spotify macro pad thingy PCB layout, top view — open source board by nikunj-Swarnkar

About the Spotify macro pad thingy PCB

Spotify macro pad thingy is an open source PCB design by nikunj-Swarnkar, published on GitHub. It is a 2-layer board measuring 82.6 × 55.6 mm, with 16 components from 5 distinct parts.

Other key parts include the MOUDLE-SEEEDUINO-XIAO. By type, the board carries 8 switches, 6 diodes, 1 IC and 1 connector.

It belongs with the keyboards and displays & leds designs in this gallery.

From the project

hackerpad 9000 is a custom keypad w two rotating dials and 6 customisable keys

A custom key macropad with two rotating dials, 6 customisable keys, and an OLED screen. Basically my iteration of the Spotify car thing — but for your desk.

Project by nikunj-Swarnkar — Firmware by Nitin-2468-dev

- Two-part case, easy to assemble - 128×32 OLED display - 2 × EC11 rotary encoders - 4 heat-set inserts and bolted case - 6 mechanical keys

Made in Fusion360. Everything fits together using 4 × M3 bolts and heat-set inserts. The case has two parts: a main body and a front lid.

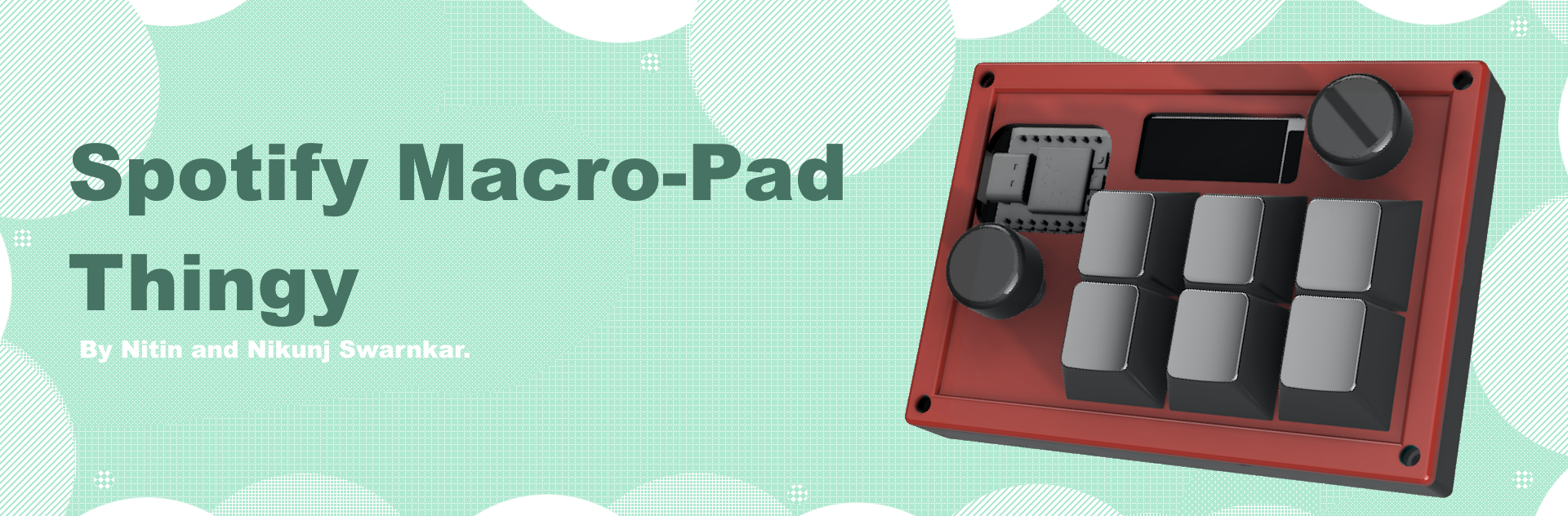

Spotify macro pad thingy, from the project README — From the project README

Main components on the Spotify macro pad thingy

MOUDLE-SEEEDUINO-XIAO

Spotify macro pad thingy bill of materials (BOM)

16 components, 5 distinct parts.

Qty	Part	Footprint	Refs
1	MOUDLE-SEEEDUINO-XIAO	XIAO-Generic-Hybrid-14P-2.54-21X17.8MM	U1
1	OLED_display	SSD1306-0.91-OLED-4pin-128x32	J1
6	SW_Push	SW_Cherry_MX_1.00u_PCB	SW1, SW2, SW3, SW4, SW5, SW6
2	RotaryEncoder_Switch_MP	RotaryEncoder_Alps_EC11E-Switch_Vertical_H20mm	SW7, SW13
6	1N4148	D_DO-35_SOD27_P7.62mm_Horizontal	D2, D3, D4, D5, D6, D7

Spotify macro pad thingy design files

The KiCad project lives in the nikunj-Swarnkar/Spotify_macro_pad_thingy repository on GitHub; these links point at the commit this page was built from.

Layoutpcb/hackerpad_9000.kicad_pcb
Schematicpcb/hackerpad_9000.kicad_sch

Spotify macro pad thingy: common questions

How big is the Spotify macro pad thingy PCB?

The Spotify macro pad thingy measures 82.6 × 55.6 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the Spotify macro pad thingy?

16 components, from 5 distinct parts. The full bill of materials is listed on this page.

Where can I download the Spotify macro pad thingy design files?

From the nikunj-Swarnkar/Spotify_macro_pad_thingy repository on GitHub, which has the KiCad layout and the schematic; the links under Design files point to each one.

Can I use the Spotify macro pad thingy design in my own project?

The repository has no license, so all rights stay with nikunj-Swarnkar. Use it as a reference, and ask the author before reusing the design.
