Servo tester
Noraiz963·Servo-tester·PCB layout/servo tester.kicad_pcb
About the Servo tester PCB
Servo tester is an open source PCB design by Noraiz963, published on GitHub. It is a 2-layer board measuring 30.4 × 25.9 mm, with 10 components from 10 distinct parts.
Other key parts include the NE555P. By type, the board carries 3 resistors, 2 connectors, 2 diodes, 1 IC and 1 capacitor.
It belongs with the robotics & motion designs in this gallery.
From the project

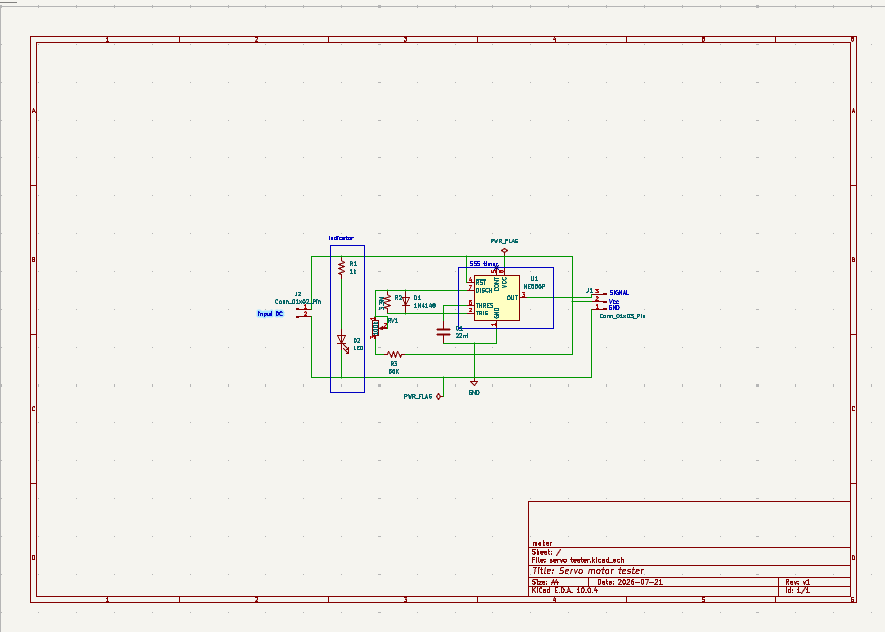

A simple 555-timer-based servo tester designed in KiCad — generates a variable-width pulse signal to manually test and center RC servo motors without needing a microcontroller or transmitter.
A simple 555-timer-based servo tester designed in KiCad — generates a variable-width pulse signal to manually test and center RC servo motors without needing a microcontroller or transmitter.
- Pulse generator: NE555P timer IC (U1) configured to output a PWM-style signal on the SIGNAL pin - Pulse width adjustment: Potentiometer (RV1) lets you sweep the servo across its range by hand - Timing components: Resistors (R2, R3) and capacitor (C1, 22nF) set the timer's frequency and pulse characteristics - Reverse polarity protection: Diode (D1, 1N4148) on the power input - Power indicator: LED…

Main components on the Servo tester
Servo tester bill of materials (BOM)
10 components, 10 distinct parts.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | NE555P | DIP-8_W7.62mm | U1 |
| 1 | Conn_01x03_Pin | PinHeader_1x03_P2.54mm_Horizontal | J1 |
| 1 | Conn_01x02_Pin | PinHeader_1x02_P2.54mm_Horizontal | J2 |
| 1 | 100k | Potentiometer_Alps_RK163_Single_Horizontal | RV1 |
| 1 | 1N4148 | D_DO-35_SOD27_P7.62mm_Horizontal | D1 |
| 1 | LED | LED_D3.0mm | D2 |
| 1 | 22nf | C_Disc_D4.3mm_W1.9mm_P5.00mm | C1 |
| 1 | 1k | R_Axial_DIN0204_L3.6mm_D1.6mm_P7.62mm_Horizontal | R1 |
| 1 | 3.3M | R_Axial_DIN0204_L3.6mm_D1.6mm_P7.62mm_Horizontal | R2 |
| 1 | 56K | R_Axial_DIN0204_L3.6mm_D1.6mm_P7.62mm_Horizontal | R3 |
Servo tester design files
The KiCad project lives in the Noraiz963/Servo-tester repository on GitHub; these links point at the commit this page was built from.
Servo tester: common questions
How big is the Servo tester PCB?
The Servo tester measures 30.4 × 25.9 mm, has 2 copper layers and is 1.6 mm thick.
How many components are on the Servo tester?
10 components, from 10 distinct parts. The full bill of materials is listed on this page.
Where can I download the Servo tester design files?
From the Noraiz963/Servo-tester repository on GitHub, which has the KiCad layout; the links under Design files point to each one.
Can I use the Servo tester design in my own project?
The repository has no license, so all rights stay with Noraiz963. Use it as a reference, and ask the author before reusing the design.
