Camp PCB layout, top view — open source AVR/Arduino board by notazizelse

About the Camp PCB

Camp is an open source AVR/Arduino PCB design by notazizelse, published on GitHub. It is a 2-layer board measuring 80 × 80 mm, with 16 components from 8 distinct parts.

Its main chip is the Arduino_Nano, from the AVR/Arduino family. Other key parts include the DG301-5.0-02P-12-00A(H). By type, the board carries 6 resistors, 3 switches, 2 LEDs, 1 IC and 1 connector.

It belongs with the sensors and displays & leds designs in this gallery.

From the project

Circuits

A CubeSat payload computer you can build in a weekend.

An 80 × 80 mm Arduino Nano carrier board that turns a handful of loose sensor modules into one tidy instrument: it reads the temperature, the humidity and the carbon-monoxide level of the air around it, shows them on a small screen, and reports them over USB — the same job the payload computer of a real CubeSat does.

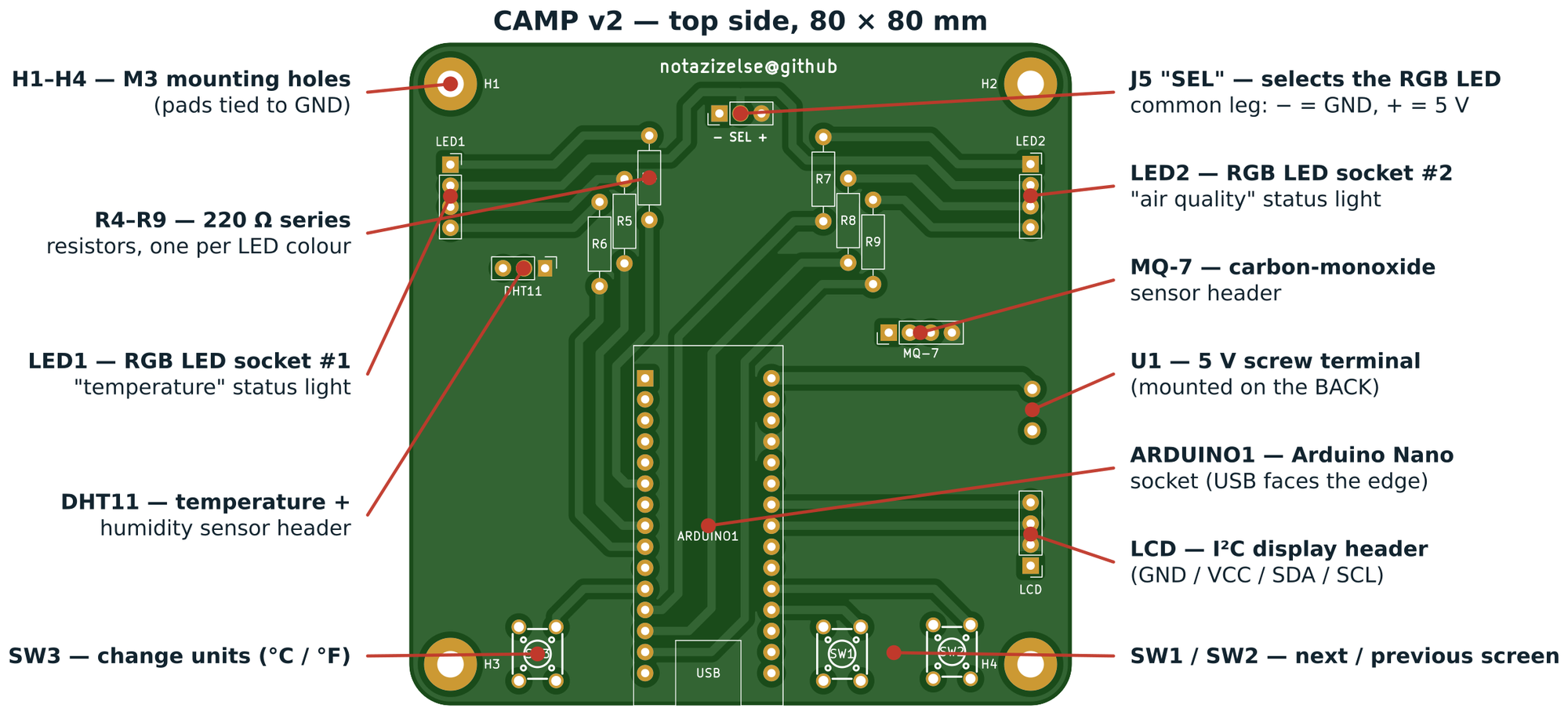

Camp, from the project README
From the project README

Main components on the Camp

DG301-5.0-02P-12-00A(H)

Camp bill of materials (BOM)

16 components, 8 distinct parts — part numbers from the project's BOM.

QtyPartRefs
1
DG301-5.0-02P-12-00A(H)
screw terminal
DEGSON(高正/高松)
U1
1
LED_SEL
J5
1
Arduino_Nano
ARDUINO1
1
DHT11
DHT11
1
MQ-7
MQ-7
3
KH-6X6X5H-TJ
button
kinghelm(金航标)
SW1, SW2, SW3
2
TJ-L5FCMXHTCSLCRGB-A5
TOGIALED(统佳)
LED1, LED2
6
220
R4, R5, R6, R7, R8, R9

Camp design files

The KiCad project lives in the notazizelse/camp repository on GitHub; these links point at the commit this page was built from.

Camp: common questions

What microcontroller does the Camp use?

The Camp is built around the Arduino_Nano, from the AVR/Arduino family.

How big is the Camp PCB?

The Camp measures 80 × 80 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the Camp?

16 components, from 8 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.

Where can I download the Camp design files?

From the notazizelse/camp repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.

Can I use the Camp design in my own project?

The repository has no license, so all rights stay with notazizelse. Use it as a reference, and ask the author before reusing the design.

Can I test firmware for the Camp without the hardware?

Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug AVR/Arduino firmware against it before you order a PCB.
