Pico board
About the Pico board
Pico board is an open source PCB design by nwasr, published on GitHub. It is a 2-layer board measuring 24 × 51 mm, with 46 components from 28 distinct parts.
Other key parts include the W25Q16JVUXIQ TR, RT6150B-33GQW and CORRECT_RP2040. By type, the board carries 18 capacitors, 15 resistors, 4 connectors, 3 ICs, 2 diodes and 1 transistor.

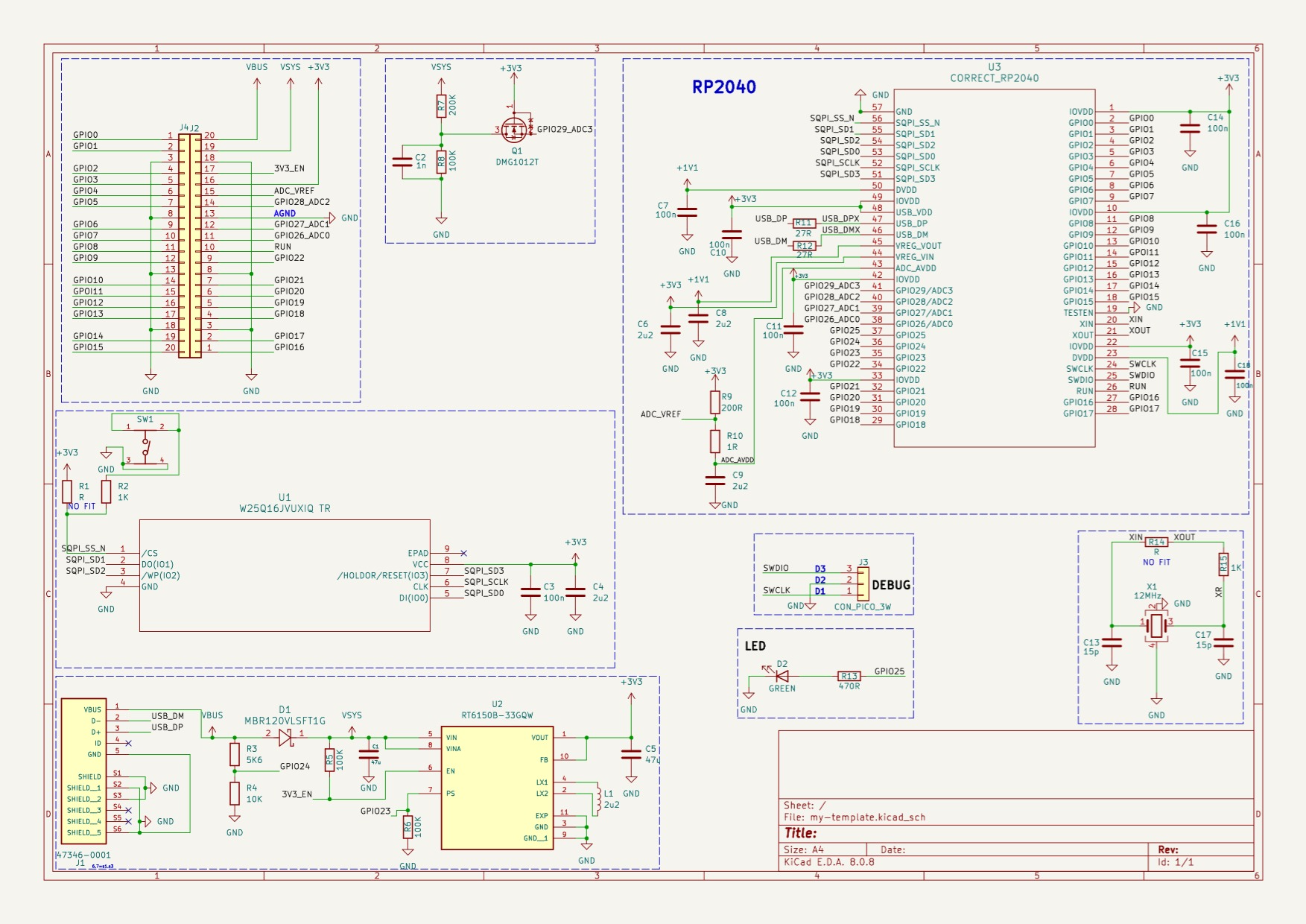

From the project
Designed Pico Board from scratch
Main components on the Pico board
Pico board bill of materials (BOM)
46 components, 28 distinct parts.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | W25Q16JVUXIQ TR | W25Q16JVUXIQ | U1 |
| 1 | RT6150B-33GQW | RT6150B-33GQW | U2 |
| 1 | CORRECT_RP2040 | CORRECT_RP2040 | U3 |
| 1 | DMG1012T | SOT-523 | Q1 |
| 1 | 12MHz | Oscillator_SMD_SeikoEpson_SG210-4Pin_2.5x2.0mm | X1 |
| 1 | 47346-0001 | MOLEX_47346-0001 | J1 |
| 1 | Conn_01x20 | part_2_40_pin | J2 |
| 1 | CON_PICO_3W | 3_pin_connector | J3 |
| 1 | Conn_01x20 | part_1_40_pin | J4 |
| 1 | 434133025816 | 434133025816 | SW1 |
| 1 | MBR120VLSFT1G | MBR120VLSFT1G | D1 |
| 1 | GREEN | LED_0402_1005Metric | D2 |
| 1 | 2u2 | L_0402_1005Metric | L1 |
| 2 | 47u | C_0805_2012Metric | C1, C5 |
| 1 | 1n | C_0201_0603Metric | C2 |
| 9 | 100n | C_0201_0603Metric | C3, C7, C10, C11, C12, C14, C15, C16 +1 |
| 4 | 2u2 | C_0402_1005Metric | C4, C6, C8, C9 |
| 2 | 15p | C_0201_0603Metric | C13, C17 |
| 2 | R | R_0402_1005Metric | R1, R14 |
| 2 | 1K | R_0402_1005Metric | R2, R15 |
Show 8 more
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | 5K6 | R_0402_1005Metric | R3 |
| 1 | 10K | R_0402_1005Metric | R4 |
| 3 | 100K | R_0402_1005Metric | R5, R6, R8 |
| 1 | 200K | R_0402_1005Metric | R7 |
| 1 | 200R | R_0603_1608Metric | R9 |
| 1 | 1R | R_0402_1005Metric | R10 |
| 2 | 27R | R_0402_1005Metric | R11, R12 |
| 1 | 470R | R_0402_1005Metric | R13 |
Pico board design files
The KiCad project lives in the nwasr/Pico-board repository on GitHub; these links point at the commit this page was built from.
- Layoutmy-template.kicad_pcb
- Schematicmy-template.kicad_sch
Pico board: common questions
How big is the Pico board?
The Pico board measures 24 × 51 mm, has 2 copper layers and is 1.6 mm thick.
How many components are on the Pico board?
46 components, from 28 distinct parts. The full bill of materials is listed on this page.
Where can I download the Pico board design files?
From the nwasr/Pico-board repository on GitHub, which has the KiCad layout and the schematic; the links under Design files point to each one.
Can I use the Pico board design in my own project?
The repository has no license, so all rights stay with nwasr. Use it as a reference, and ask the author before reusing the design.
