About the MR-NAVQ95 PCB
MR-NAVQ95 is an open source PCB design by NXP-Robotics, published on GitHub under the SHL-2.1 license. It is a board, with 1 components from 1 distinct parts.
It belongs with the iot & wireless and sensors designs in this gallery.
From the project
Proof of concept design files

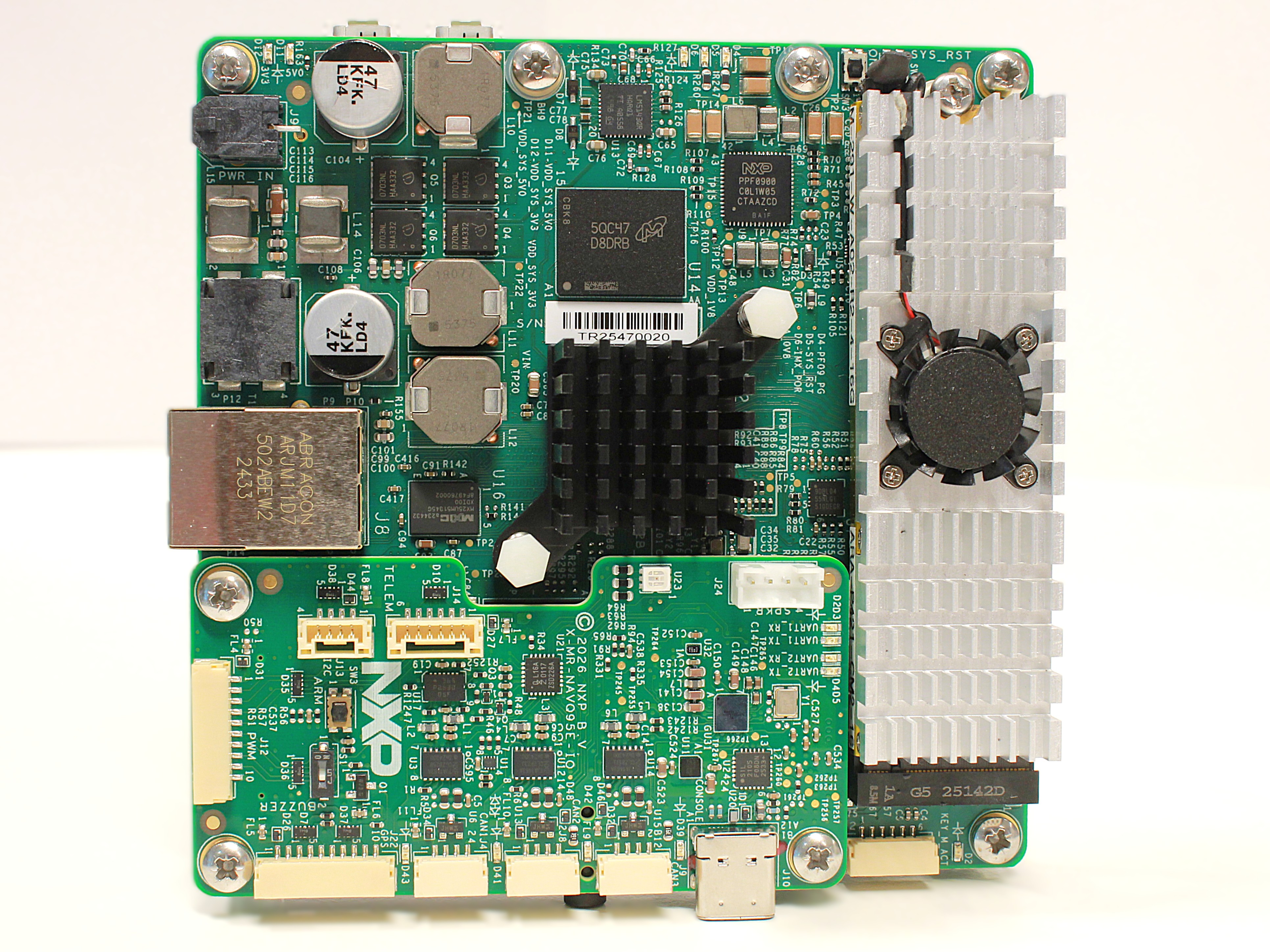

Welcome to the documentation for the NavQ95, a vehicle computer reference design designed around the NXP i.MX95 developed by NXP Mobile Robotics. Please note that this board is currently a Proof of Concept only and is considered not supported by NXP.
The NavQ95 features a single main board with a small form factor and is designed to merge a Vehicle Management Unit and a Vehicle Companion Computer into one unified, heterogeneous MCU/MPU device.
MR-NAVQ95 bill of materials (BOM)
1 components, 1 distinct parts — part numbers from the project's BOM.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | 280-10222 MOUNTING HOLE DRILL 3.7MM PAD 6MM PLATED TH NO PART TO ORDER | BH1 |
MR-NAVQ95 design files
The KiCad project lives in the NXP-Robotics/MR-NAVQ95 repository on GitHub; these links point at the commit this page was built from.
MR-NAVQ95: common questions
How many components are on the MR-NAVQ95?
1 components, from 1 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.
Where can I download the MR-NAVQ95 design files?
From the NXP-Robotics/MR-NAVQ95 repository on GitHub, which has a netlist and the BOM; the links under Design files point to each one.
Can I use the MR-NAVQ95 design in my own project?
It is published under SHL-2.1, which limits how it may be reused; read the license before building on it.
