TDA7265 Stereo Amplifier
About the TDA7265 Stereo Amplifier PCB
TDA7265 Stereo Amplifier is an open source PCB design by ObaraEmmanuel, published on GitHub. It is a 2-layer board measuring 70.5 × 49 mm, with 20 components from 13 distinct parts.
Other key parts include the TDA7265. By type, the board carries 9 capacitors, 7 resistors, 3 connectors and 1 IC.
It belongs with the audio designs in this gallery.
From the project
DIY TDA7265 Stereo Amplifier
Main components on the TDA7265 Stereo Amplifier

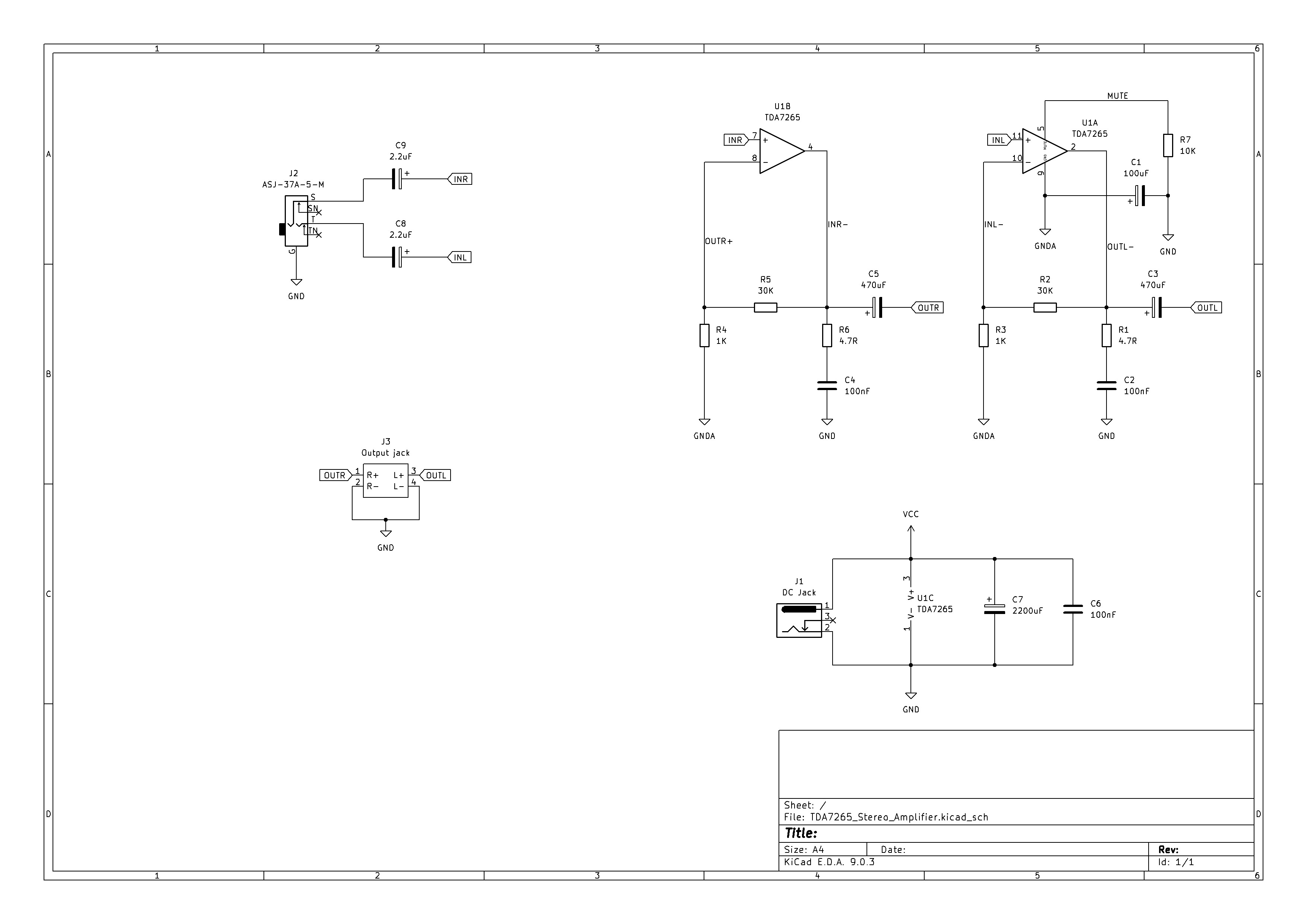

TDA7265 Stereo Amplifier bill of materials (BOM)
20 components, 13 distinct parts.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | TDA7265 | TO-220-11_P3.4x5.08mm_StaggerOdd_Lead4.58mm_Vertical | U1 |
| 1 | DC Jack | BarrelJack_Horizontal | J1 |
| 1 | ASJ-37A-5-M | ASJ-37A-5-M | J2 |
| 1 | Output jack | RCJ-21X00 | J3 |
| 1 | 100uF | CP_Radial_D5.0mm_P2.00mm | C1 |
| 3 | 100nF | C_Disc_D5.0mm_W2.5mm_P5.00mm | C2, C4, C6 |
| 2 | 470uF | CP_Radial_D5.0mm_P2.50mm | C3, C5 |
| 1 | 2200uF | CP_Radial_D12.5mm_P5.00mm | C7 |
| 2 | 2.2uF | CP_Radial_D4.0mm_P2.00mm | C8, C9 |
| 2 | 4.7R | R_Axial_DIN0207_L6.3mm_D2.5mm_P7.62mm_Horizontal | R1, R6 |
| 2 | 30K | R_Axial_DIN0207_L6.3mm_D2.5mm_P7.62mm_Horizontal | R2, R5 |
| 2 | 1K | R_Axial_DIN0207_L6.3mm_D2.5mm_P7.62mm_Horizontal | R3, R4 |
| 1 | 10K | R_Axial_DIN0207_L6.3mm_D2.5mm_P7.62mm_Horizontal | R7 |
TDA7265 Stereo Amplifier design files
The KiCad project lives in the ObaraEmmanuel/TDA7265_Stereo_Amplifier repository on GitHub; these links point at the commit this page was built from.
TDA7265 Stereo Amplifier: common questions
How big is the TDA7265 Stereo Amplifier PCB?
The TDA7265 Stereo Amplifier measures 70.5 × 49 mm, has 2 copper layers and is 1.6 mm thick.
How many components are on the TDA7265 Stereo Amplifier?
20 components, from 13 distinct parts. The full bill of materials is listed on this page.
Where can I download the TDA7265 Stereo Amplifier design files?
From the ObaraEmmanuel/TDA7265_Stereo_Amplifier repository on GitHub, which has the KiCad layout and the schematic; the links under Design files point to each one.
Can I use the TDA7265 Stereo Amplifier design in my own project?
The repository has no license, so all rights stay with ObaraEmmanuel. Use it as a reference, and ask the author before reusing the design.
