About the OpenTKL PCB
OpenTKL is an open source AVR/Arduino PCB design by ojthetiny, published on GitHub under the GPL-3.0 license. It is a 2-layer board measuring 344 × 124 mm, with 175 components from 33 distinct parts.
Its main chip is the ATMEGA32U4-M, from the AVR/Arduino family. By type, the board carries 99 LEDs, 49 diodes, 4 connectors, 1 IC, 1 crystal and 1 fuse.
It belongs with the keyboards designs in this gallery.
From the project

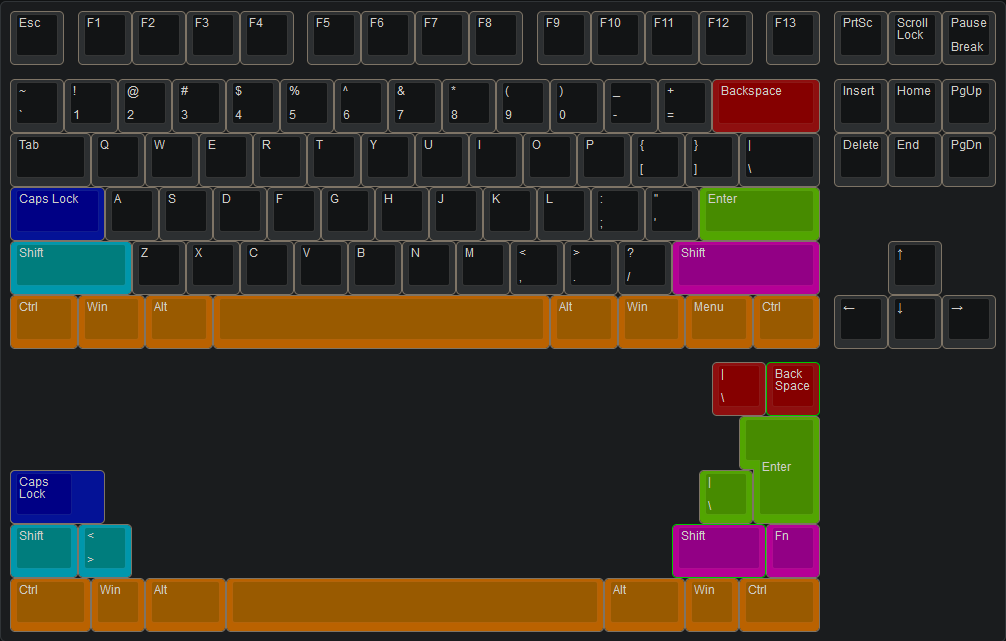

Fully Open source TKL keyboard
Features: - Top Mount USB-C or Unified Daughterboard. - In switch indicator lights for Caps Lock, Scroll Lock, and Layer on Esc. - Atmega 32u4-mu MCU - Support for both MX and Alps switches - Support for gummy worm mount boards, tabs in the same spaces as Hineys h88 pcb - RGB breakout between the nav and arrow clusters for 1.2og like designs - ISP breakout for if you know what you're doing ;)

Main components on the OpenTKL
OpenTKL bill of materials (BOM)
175 components, 33 distinct parts — part numbers from the project's BOM.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | ATMEGA32U4-M ATmega32U4-M | QFN-44-1EP_7x7mm_P0.5mm_EP5.2x5.2mm | U1 |
| 1 | C32180 Resonator_Small | Resonator_SMD_Murata_CSTxExxV-3Pin_3.0x1.1mm | Y1 |
| 1 | Reset Jumper | SW_SPST_TL3342 | J1 |
| 1 | CONN_RGB | PinHeader_1x03_P2.54mm_Vertical | J2 |
| 1 | C160404 CONN_DB | JST_SH_SM04B-SRSS-TB_1x04-1MP_P1.00mm_Horizontal | J3 |
| 1 | ISP_Breakout | PinHeader_2x03_P2.54mm_Vertical | J4 |
| 3 | .1u | C_0402_1005Metric | C_DECOUP1, C_DECOUP2, C_DECOUP3 |
| 1 | 10u | C_0402_1005Metric | C_DECOUP4 |
| 1 | 1u | C_0402_1005Metric | C_UCAP1 |
| 1 | C151162 Polyfuse_Small | Fuse_0805_2012Metric | F1 |
| 1 | MX-LED | MX-1.25U | MX1 |
| 2 | MX-LED | MX-1U | MX4, MX95 |
| 1 | MX-LED | MX-1.75U | MX7 |
| 1 | MX-NoLED | MX-ISO-ReversedStabilizers | MX80 |
| 2 | 22 | R_0402_1005Metric | R_DATA1, R_DATA2 |
| 2 | 10k | R_0402_1005Metric | R_HWB1, R_RST1 |
| 3 | 220 | R_0402_1005Metric | R_INDICATOR1, R_INDICATOR2, R_INDICATOR3 |
| 2 | 5k1 | R_0402_1005Metric | R_USB1, R_USB2 |
| 1 | HRO-TYPE-C-31-M-12 | HRO-TYPE-C-31-M-12-Assembly | USB1 |
| 8 | MX-NoLED | MX-1.25U-NoLED | MX2, MX3, MX10, MX17, MX60, MX61, MX73, MX81 |
Show 13 more
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 78 | MX-NoLED | MX-1U-NoLED | MX5, MX11, MX12, MX13, MX14, MX15, MX16, MX18 +70 |
| 6 | MX-NoLED | MX-1.5U-NoLED | MX6, MX9, MX23, MX67, MX86, MX90 |
| 1 | MX-NoLED | MX-2.25U-NoLED | MX8 |
| 1 | MX-NoLED | MX-6.25U-ReversedStabilizers-NoLED | MX39 |
| 1 | MX-NoLED | MX-7U-ReversedStabilizers-NoLED | MX45 |
| 1 | MX-NoLED | MX-2.75U-NoLED | MX72 |
| 1 | MX-NoLED | MX-1.75U_NoLED | MX78 |
| 1 | MX-NoLED | MX-2.25U-ReversedStabilizers-NoLED | MX84 |
| 1 | MX-NoLED | MX-2U-NoLED | MX89 |
| 44 | BAV70_SMALL BAV70_Small | SOT-23 | D1, D2, D3, D4, D5, D6, D7, D8 +36 |
| 1 | PRTR5V0U2X | SOT-143 | D18 |
| 3 | C64898 D_Small | D_SOD-123 | D46, D47, D48 |
| 1 | D_Small | D_SOD-123 | D79 |
OpenTKL design files
The KiCad project lives in the ojthetiny/OpenTKL repository on GitHub; these links point at the commit this page was built from.
OpenTKL: common questions
What microcontroller does the OpenTKL use?
The OpenTKL is built around the ATMEGA32U4-M, from the AVR/Arduino family.
How big is the OpenTKL PCB?
The OpenTKL measures 344 × 124 mm, has 2 copper layers and is 1.6 mm thick.
How many components are on the OpenTKL?
175 components, from 33 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.
Where can I download the OpenTKL design files?
From the ojthetiny/OpenTKL repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.
Can I use the OpenTKL design in my own project?
Yes, under the terms of its GPL-3.0 license, which ojthetiny chose for the repository.
