Memory
About the Memory PCB
Memory is an open source PCB design by OldTrail, published on GitHub. It is a 2-layer board measuring 237.5 × 102.9 mm, with 53 components from 9 distinct parts.
Other key parts include the 74LS32, 74LS00, 74LS377, 28C16 and W24512A. By type, the board carries 32 resistors, 9 ICs, 9 capacitors and 3 connectors.
From the project

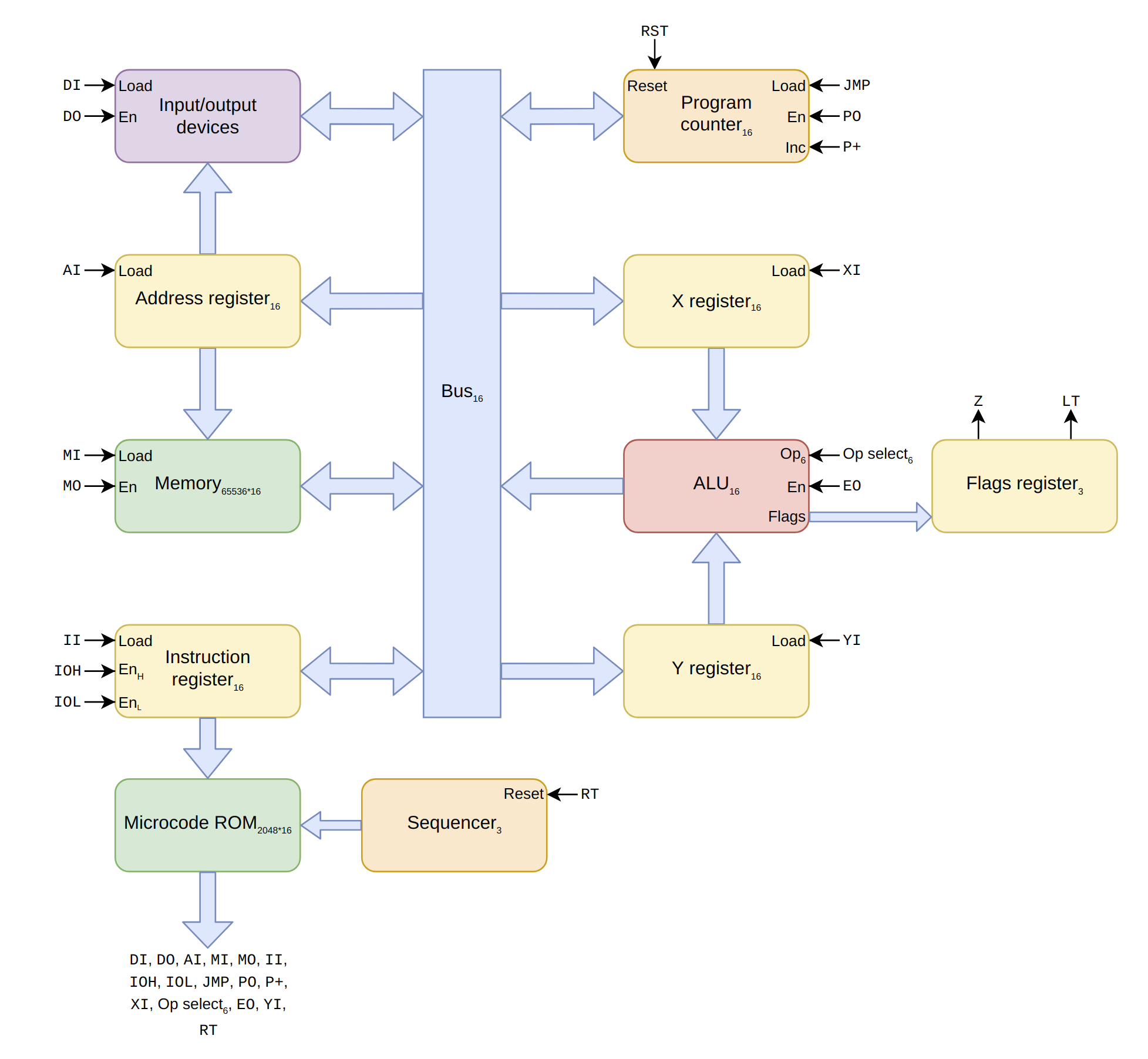

SCAMP is my homebrew 16-bit CPU. It stands for something like "Simple Computing and Arithmetic Microcoded Processor".
SCAMP is my homebrew 16-bit CPU. It stands for something like "Simple Computing and Arithmetic Microcoded Processor".
The CPU is very primitive. It doesn't support interrupts, and has no MMU, and no concept of privilege levels. It currently runs at 1 MHz, above that the CompactFlash interface falls over. It runs a homebrew operating system, with a homebrew programming language and compiler, and can self-host the kernel and all of the system utilities. The environment tastes a bit like an early Unix, but works like CP/M. I plan to use the computer to complete as much as possible of this…
Main components on the Memory
Memory bill of materials (BOM)
53 components, 9 distinct parts.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 2 | 74LS32 | DIP-14_W7.62mm_Socket | U1, U3 |
| 1 | 74LS00 | DIP-14_W7.62mm_Socket | U2 |
| 2 | 74LS377 | DIP-20_W7.62mm_Socket | U4, U5 |
| 2 | 28C16 | DIP-24_W15.24mm_Socket | U6, U7 |
| 2 | W24512A | DIP-32_W7.62mm | U8, U9 |
| 1 | Conn_02x30_Counter_Clockwise | PinSocket_2x30_P2.54mm_Horizontal | J1 |
| 2 | Conn_01x17_Male | PinHeader_1x17_P2.54mm_Vertical | J2, J3 |
| 9 | C | C_Disc_D5.0mm_W2.5mm_P2.50mm | C1, C2, C3, C4, C5, C6, C7, C8 +1 |
| 32 | R | R_Axial_DIN0207_L6.3mm_D2.5mm_P7.62mm_Horizontal | R1, R2, R3, R4, R5, R6, R7, R8 +24 |
