MIPI-HDMI
About the MIPI-HDMI PCB

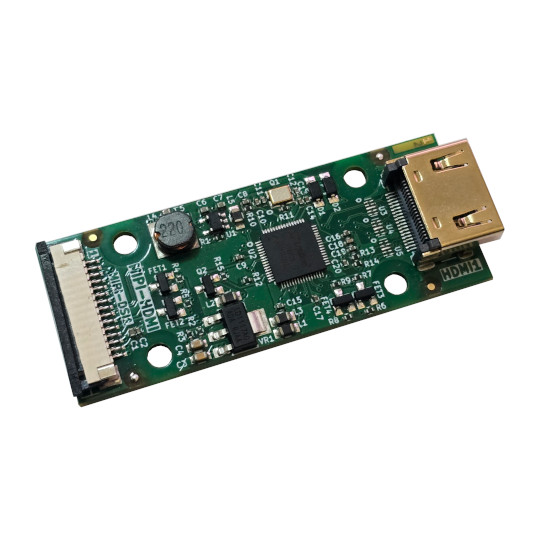

MIPI-HDMI is an open source PCB design by OLIMEX, published on GitHub. It is a 4-layer board measuring 24 × 60 mm, with 59 components from 27 distinct parts.
Other key parts include the ME2188C50M5G(SOT23-5), LT8912B(QFN64) and NA(RCLAMP0524P(SLP2510P8)). By type, the board carries 20 capacitors, 15 resistors, 5 ICs, 4 inductors, 2 transistors and 2 diodes.
From the project
MIPI to HDMI converter
https://www.olimex.com/Products/IoT/ESP32-P4/MIPI-HDMI/open-source-hardware
15 pin FPC connector pin to pin compatible with ESP32-P4-DevKit and Raspberry PI MIPI HDMI connector One-Channel MIPI DSI Receiver Compliant with D-PHY1.1 and DSI1.02 1 clock lane and 1~4 configurable data lanes 80Mbps~1.5Gbps per data lane Only Continuous clock mode supported HDMI Transmitter Support HDMI1.4 Up to 60Hz 1080p 8-bit HDMI output * Dimensions: 60 x 24 mm
Main components on the MIPI-HDMI
MIPI-HDMI bill of materials (BOM)
59 components, 27 distinct parts — part numbers from the project's BOM.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | ME2188C50M5G(SOT23-5) | SOT-23-5 | U1 |
| 1 | LT8912B(QFN64) | QFN64_7.5x7.5mm_Pitch_0.4mm | U2 |
| 3 | NA(RCLAMP0524P(SLP2510P8)) | SLP2510P8_TEST | U3, U4, U5 |
| 1 | Q25MHz/18pF/30ppm/4P/3.2x2.5mm(ABM8-25.000MHZ-D2Y-T) | TSX-3.2x2.5mm_GND(3) | Q1 |
| 1 | BC817-40 | SOT23 | Q2 |
| 4 | BSS138(SOT-23) | SOT23 | FET1, FET2, FET3, FET4 |
| 1 | HDMI-SWM-19 | HDMI-SWM-19_Paste | HDMI1 |
| 4 | Mounting_Hole_NPTH | Mounting_Hole_Drill-3.3mm_Clerance-7mm | MH1, MH2, MH3, MH4 |
| 1 | AFA07-S15FCC-00 | FPC-15P-1mm-Right_Angle(AFA07-S15FCC-00) | MIPI-DSI1 |
| 1 | LD1117AG-AD-AA3-A-R | SOT223 | VR1 |
| 2 | 1N5819S4(SOD123) | SOD-123_1C-2A_KA | D1, D2 |
| 3 | 600OHM/2A/UPZ2012E-601-2R0TF/0805 | L_0805_5MIL_DWS | L1, L2, L3 |
| 1 | 22uH/CD53/YS53-220M | CD53(54) | L4 |
| 1 | 10uF/6.3V/20%/X5R/C0402 | C_0402_5MIL_DWS | C1 |
| 11 | 100nF/10V/20%/X5R/C0402 | C_0402_5MIL_DWS | C2, C8, C9, C10, C13, C14, C15, C16 +3 |
| 2 | 22uF/6.3V/20%/X5R/C0603 | C_0603_5MIL_DWS | C3, C4 |
| 1 | 10uF/6.3V/X5R/20%/C0402 | C_0402_5MIL_DWS | C5 |
| 2 | 47uF/6.3V/20%/X5R/C0805 | C_0805_5MIL_DWS | C6, C7 |
| 2 | 27pF/50V/5%/C0G/C0402 | C_0402_5MIL_DWS | C11, C12 |
| 1 | 2.2nF/50V/10%/X7R/C0402 | C_0402_5MIL_DWS | C18 |
Show 7 more
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 4 | 10k/R0402 | R_0402_5MIL_DWS | R1, R6, R8, R10 |
| 1 | 240R/1%/R0402 | R_0402_5MIL_DWS | R2 |
| 1 | 110R/1%/R0402 | R_0402_5MIL_DWS | R3 |
| 4 | 2.2k/R0402 | R_0402_5MIL_DWS | R4, R5, R7, R9 |
| 1 | 1M/R0402 | R_0402_5MIL_DWS | R11 |
| 1 | 6.04k/1%/R0402 | R_0402_5MIL_DWS | R12 |
| 3 | 100k/R0402 | R_0402_5MIL_DWS | R13, R14, R15 |
MIPI-HDMI design files
The KiCad project lives in the OLIMEX/MIPI-HDMI repository on GitHub; these links point at the commit this page was built from.
MIPI-HDMI: common questions
How big is the MIPI-HDMI PCB?
The MIPI-HDMI measures 24 × 60 mm, has 4 copper layers and is 1.578 mm thick.
How many components are on the MIPI-HDMI?
59 components, from 27 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.
Where can I download the MIPI-HDMI design files?
From the OLIMEX/MIPI-HDMI repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.
Can I use the MIPI-HDMI design in my own project?
The repository has no license, so all rights stay with OLIMEX. Use it as a reference, and ask the author before reusing the design.
