Kicad homeatic minimal

olliiiver·kicad_homeatic_minimal·pcb/minimal.kicad_pcb

Kicad homeatic minimal PCB layout, top view — open source AVR/Arduino board by olliiiver

About the Kicad homeatic minimal PCB

Kicad homeatic minimal is an open source AVR/Arduino PCB design by olliiiver, published on GitHub under the MIT license. It is a 2-layer board measuring 43 × 28 mm, with 19 components from 15 distinct parts.

Its main chip is the ATmega328P-AU, from the AVR/Arduino family. Other key parts include the Homebrew_CC1101. By type, the board carries 5 capacitors, 4 connectors, 3 resistors, 2 ICs, 2 LEDs and 1 crystal.

It belongs with the rf & radio designs in this gallery.

From the project

Minimal PCB for Homematic / BidCoS prototyping

A minimal PCB to build hardware devices for Homematic / BidCoS networks.

PINs (A0x - D0x, GND, 3v3) are compatible to 2.54mm prototype perfboards.

Upload is possible via Serial (FTDI,etc) and ISP (J3).

- Case: RND 455-00192 https://www.reichelt.de/polycarbonate-box-w-clear-lid-rnd-455-00192-p193406.html

- ATmega328P-AU http://ww1.microchip.com/downloads/en/DeviceDoc/Atmel-7810-Automotive-Microcontrollers-ATmega328P_Datasheet.pdf https://www.reichelt.de/atmega-avr-risc-controller-tqfp-32-atmega-328p-au-p119684.html

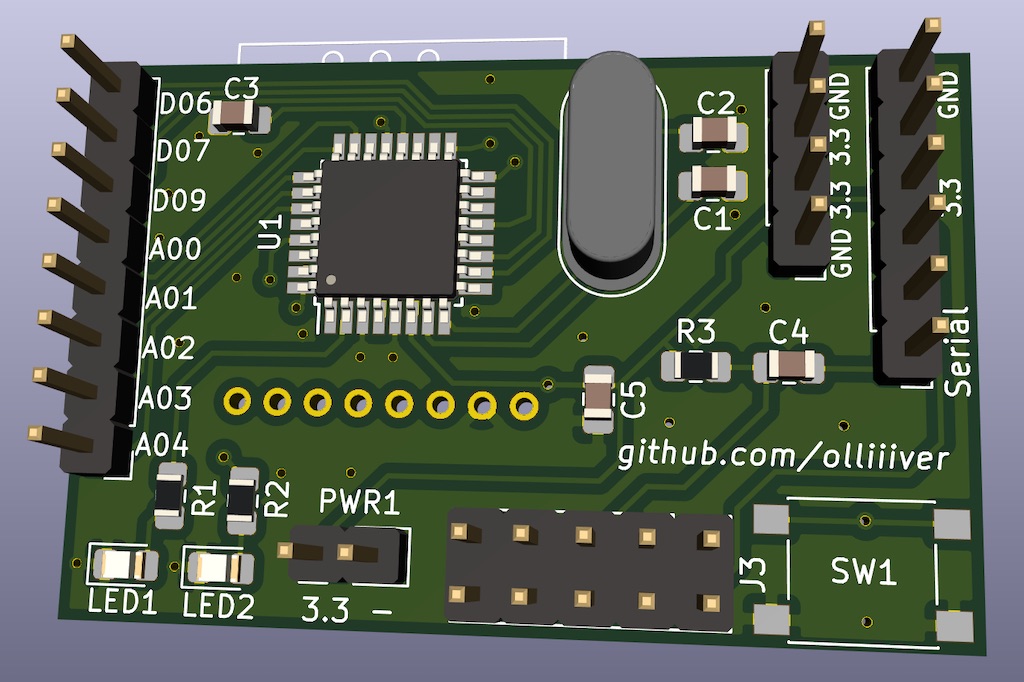

Kicad homeatic minimal, from the project README
From the project README

Main components on the Kicad homeatic minimal

ATmega328P-AUHomebrew_CC1101

Kicad homeatic minimal bill of materials (BOM)

19 components, 15 distinct parts.

QtyPartRefs
1
ATmega328P-AU
U1
1
Homebrew_CC1101
U2
1
Crystal
Y1
1
Serial
J1
1
Conn_01x08_Male
J2
1
ISP
J3
1
Conn_01x04_Male
J4
1
Conn_01x02_Male
PWR1
1
SW_Push
SW1
2
LED
LED1, LED2
2
22p
C1, C2
2
0.1 uF
C3, C4
1
100nF
C5
2
330
R1, R2
1
1k
R3

Kicad homeatic minimal design files

The KiCad project lives in the olliiiver/kicad_homeatic_minimal repository on GitHub; these links point at the commit this page was built from.

Kicad homeatic minimal: common questions

What microcontroller does the Kicad homeatic minimal use?

The Kicad homeatic minimal is built around the ATmega328P-AU, from the AVR/Arduino family.

How big is the Kicad homeatic minimal PCB?

The Kicad homeatic minimal measures 43 × 28 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the Kicad homeatic minimal?

19 components, from 15 distinct parts. The full bill of materials is listed on this page.

Where can I download the Kicad homeatic minimal design files?

From the olliiiver/kicad_homeatic_minimal repository on GitHub, which has the KiCad layout; the links under Design files point to each one.

Can I use the Kicad homeatic minimal design in my own project?

Yes, under the terms of its MIT license, which olliiiver chose for the repository.

Can I test firmware for the Kicad homeatic minimal without the hardware?

Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug AVR/Arduino firmware against it before you order a PCB.
