PCB Fujitora morro

OPRobots·FujitoraBot·pcb/sensors/kicad_project/PCB_Fujitora_morro.kicad_pcb

PCB Fujitora morro layout, top view — open source board by OPRobots

Simulate this board

About the PCB Fujitora morro

PCB Fujitora morro is an open source PCB design by OPRobots, published on GitHub under the GPL-3.0 license. It is a 2-layer board measuring 83 × 99.9 mm, with 59 components from 13 distinct parts.

Other key parts include the Barra_anti-Flex. By type, the board carries 18 resistors, 12 switches, 12 capacitors and 2 ICs.

It belongs with the robotics & motion designs in this gallery.

From the project

Robotracer - siguelíneas de alto rendimiento; con succión, tracción brushless en sistema tetra y procesador STM32F4

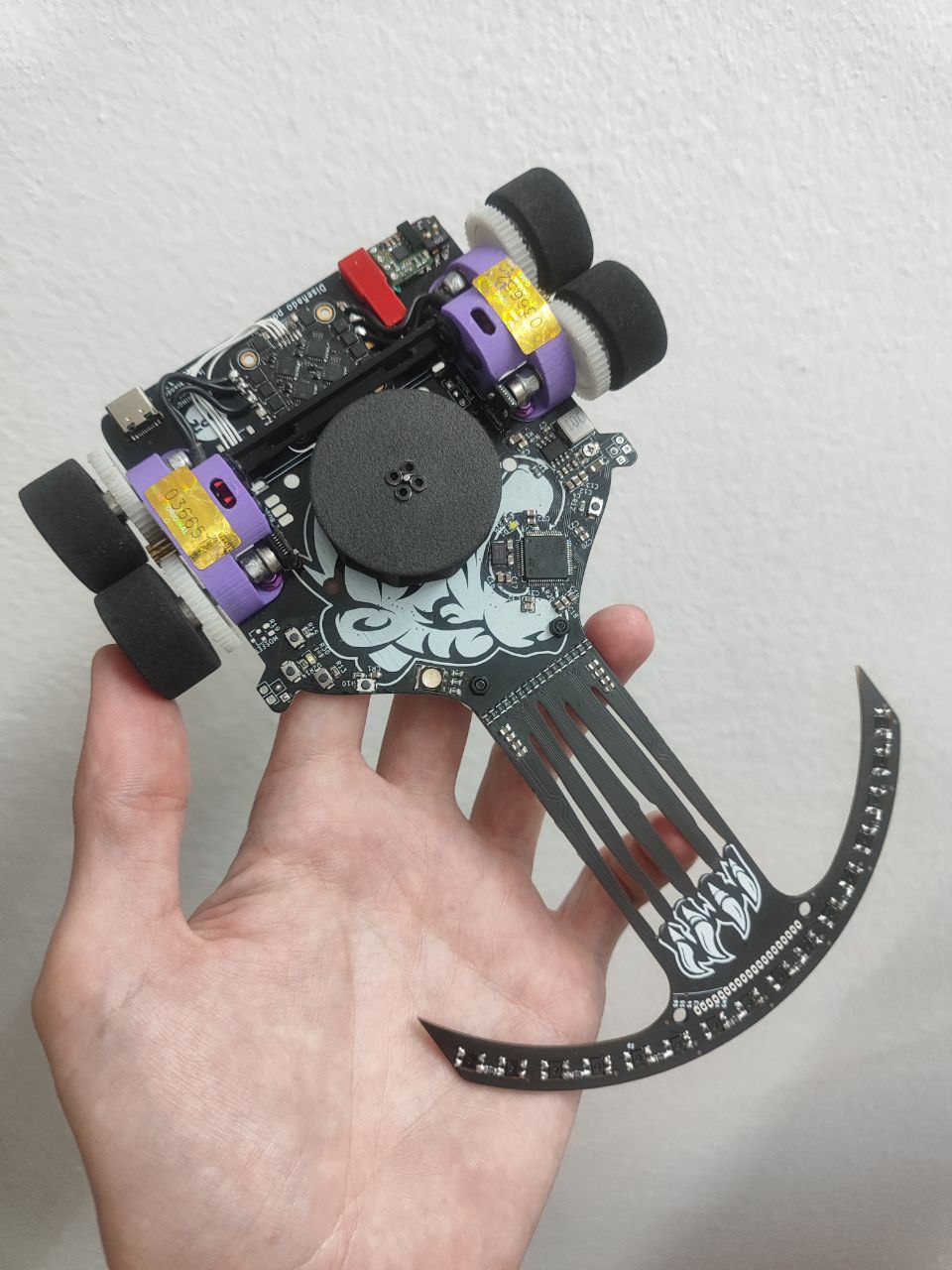

PCB Fujitora morro, from the project README — From the project README

Main components on the PCB Fujitora morro

Barra_anti-Flex

PCB Fujitora morro bill of materials (BOM)

59 components, 13 distinct parts.

Qty	Part	Footprint	Refs
2	Barra_anti-Flex	Barra Anti-Flex2	U1, U2
1	Conn_01x14_Female	conn_morro_fuji_new	MORRO1
4	Conn_01x02_Female	PinSocket_2x01_P2.54mm_Vertical	Marcas_D_1, Marcas_D_2, Marcas_I_1, Marcas_I_2
4	20K	R_0805_2012Metric	RM1, RM2, RM3, RM4
2	47	R_0805_2012Metric	RM5, RM6
12	QRE1113	QRE1113GR-inv	S1, S2, S3, S4, S5, S6, S7, S8 +4
4	QRE1113	QRE1113GR-inv	SM1, SM2, SM3, SM4
6	0.1uF	C_0805_2012Metric	C1, C2, C12, C13, C14, C15
2	1uF	C_0805_2012Metric	C3, C4
2	22uF	C_0805_2012Metric	C5, C6
2	47uF	C_0805_2012Metric	C7, C8
12	20K	R_0805_2012Metric	R1, R2, R3, R4, R5, R6, R7, R8 +4
6	47	R_0805_2012Metric	R13, R14, R15, R16, R17, R18

PCB Fujitora morro design files

The KiCad project lives in the OPRobots/FujitoraBot repository on GitHub; these links point at the commit this page was built from.

Layoutpcb/sensors/kicad_project/PCB_Fujitora_morro.kicad_pcb

PCB Fujitora morro: common questions

How big is the PCB Fujitora morro?

The PCB Fujitora morro measures 83 × 99.9 mm, has 2 copper layers and is 0.8 mm thick.

How many components are on the PCB Fujitora morro?

59 components, from 13 distinct parts. The full bill of materials is listed on this page.

Where can I download the PCB Fujitora morro design files?

From the OPRobots/FujitoraBot repository on GitHub, which has the KiCad layout; the links under Design files point to each one.

Can I use the PCB Fujitora morro design in my own project?

Yes, under the terms of its GPL-3.0 license, which OPRobots chose for the repository.
