TPS56A37RPAR-11V-22V-to-6V-6A PCB layout, top view — open source board by OptimusCoderr

About the TPS56A37RPAR-11V-22V-to-6V-6A PCB

TPS56A37RPAR-11V-22V-to-6V-6A is an open source PCB design by OptimusCoderr, published on GitHub. It is a 2-layer board measuring 42.2 × 23.8 mm, with 20 components from 17 distinct parts.

Other key parts include the TPS56A37RPAR. By type, the board carries 8 capacitors, 7 resistors, 2 connectors, 2 inductors and 1 IC.

It belongs with the power & battery and test & measurement designs in this gallery.

From the project

I have completed the schematic and PCB layout for a high-current buck converter using the Texas Instruments TPS56A37RPAR, designed to deliver 6.0V at 6.0A from an input range of 11.0V to 22.0V.

🚀 Complete 6A Synchronous Buck Converter — Now Available on GitHub!

I’m pleased to share my fully completed power delivery design: a high-efficiency, robust buck converter based on the Texas Instruments TPS56A37RPAR, engineered to deliver 6.0 V at 6.0 A from an input voltage range of 11.0 V to 22.0 V.

This project represents a complete end-to-end hardware development cycle—from initial simulation in TI WEBENCH® to final PCB layout in Altium Designer—and is designed for reliable performance and straightforward manufacturability.

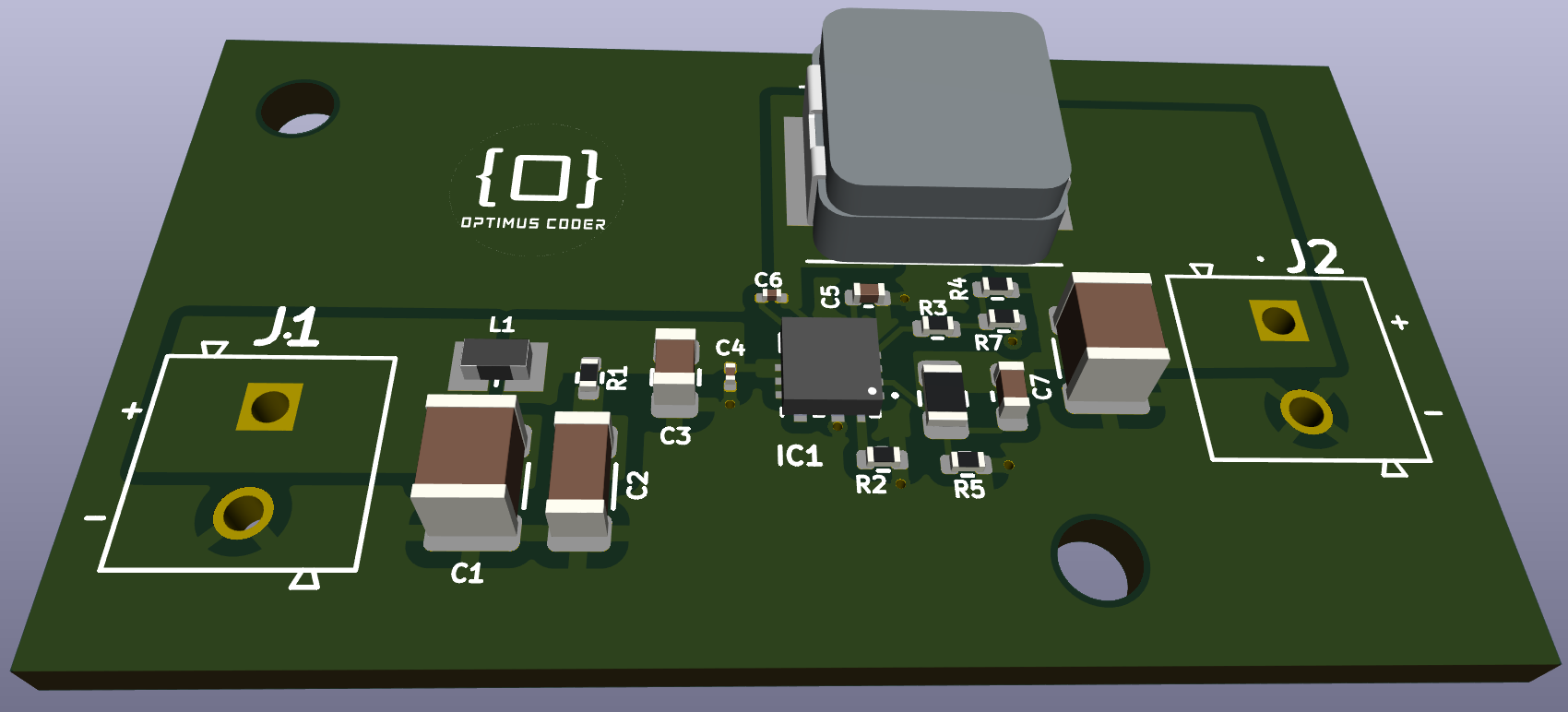

TPS56A37RPAR-11V-22V-to-6V-6A, from the project README — From the project README

Main components on the TPS56A37RPAR-11V-22V-to-6V-6A

TPS56A37RPAR-11V-22V-to-6V-6A bill of materials (BOM)

20 components, 17 distinct parts.

Qty	Part	Footprint	Refs
1	TPS56A37RPAR	TPS56A37RPAR	IC1
2	Screw_Terminal_01x02	TB001135002GR	J1, J2
1	0.68uH 4A 49mOhms	74479276168	L1
1	4.7uH 7.25A	INDPM8682X400N	L2
1	50V 4.7uF	C_1210_3225Metric	C1
1	50V 4.7uF	C_1206_3216Metric	C2
1	35V 15uF	C_0805_2012Metric	C3
1	35VDC 1uF	C_0201_0603Metric	C4
1	.022uF 16V	C_0402_1005Metric	C5
1	16V 0.1uF	C_0201_0603Metric	C6
1	25V 100pF	C_0603_1608Metric	C7
1	16V 15 uF	C_1210_3225Metric	C8
2	1.3ohms	R_0402_1005Metric	R1, R7
1	52.3Kohms	R_0402_1005Metric	R2
1	100Kohms	R_0402_1005Metric	R3
2	10Kohms	R_0402_1005Metric	R4, R5
1	90.9Kohms	R_0805_2012Metric	R6
