Jeaex right PCB layout, top view — open source NXP board by osenchenko
Simulate this board

About the Jeaex right PCB

Jeaex right is an open source NXP PCB design by osenchenko, published on GitHub under the GPL-3.0 license. It is a 2-layer board measuring 194.8 × 145.5 mm, with 76 components from 41 distinct parts.

Its main chip is the Teensy++2.0_(C), from the NXP family. By type, the board carries 35 switches, 35 diodes, 3 resistors, 2 connectors and 1 IC.

It belongs with the keyboards and displays & leds designs in this gallery.

From the project

assembled-keyboard.stl - 3d model of assembled keyboard.

assembled-keyboard.stl - 3d model of assembled keyboard.

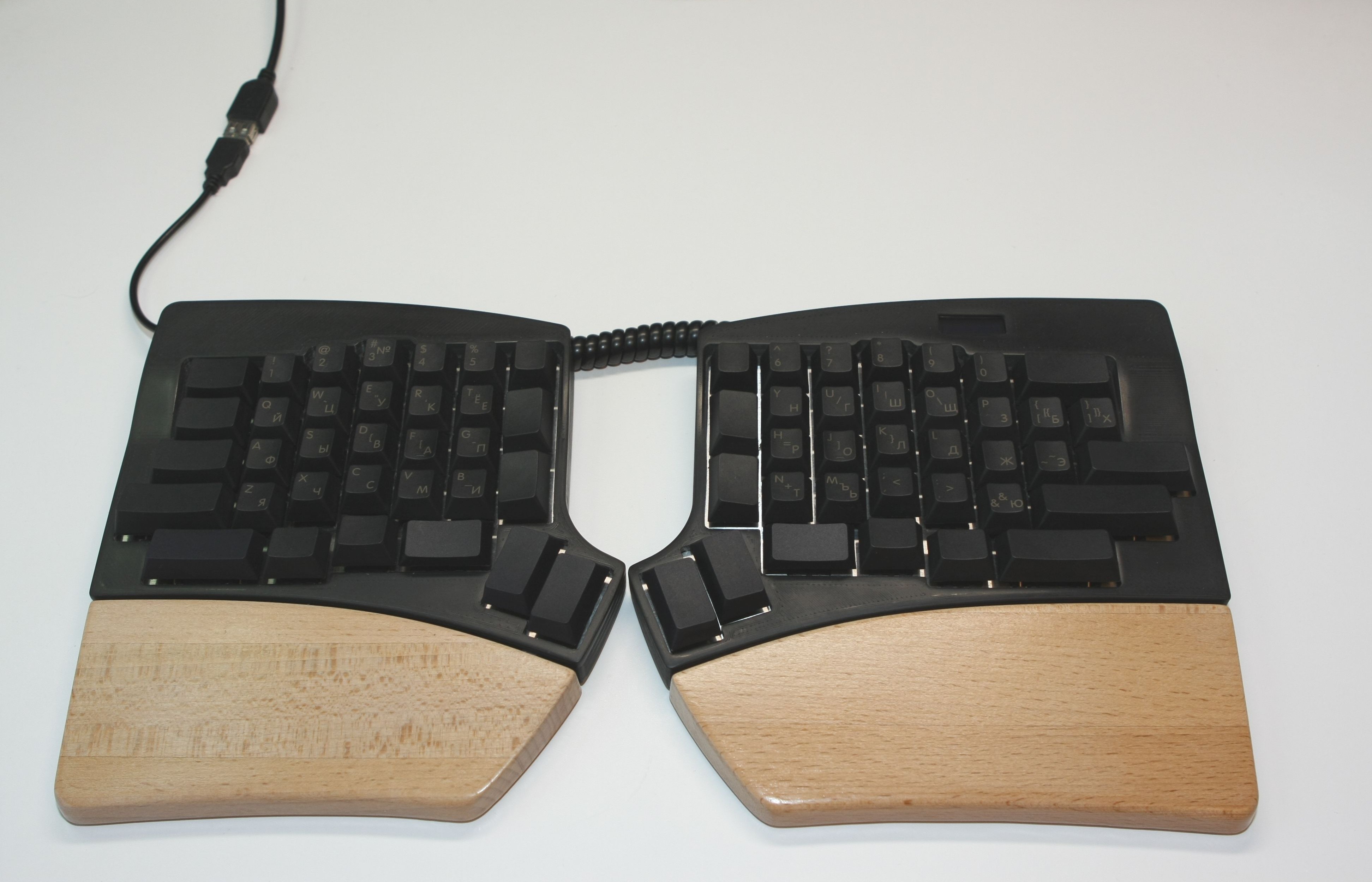

- enough keys for placing on base layer all letters for extended alphabets (alphabets with more than 26 letters). - plenty of keys for playing with different variants to find your best setup. - one keyboard for all operating systems. Switch between settings for different operating systems with a shortcut (currently settings for Linux and Windows are implemented). - used AT90USB1286 with 128 KB memory. No limits for storing settings. - wide choice of keycaps. The keyboard is designed for maximum use of keycap sets from standard…

Jeaex right, from the project README
From the project README

Main components on the Jeaex right

Teensy++2.0_(C)

Jeaex right bill of materials (BOM)

76 components, 41 distinct parts.
