Clock module is an open source PCB design by Ottoputer, published on GitHub under the GPL-3.0 license. It is a 2-layer board measuring 61.4 × 53.3 mm, with 26 components from 15 distinct parts.
Other key parts include the NE555P and 74LS00. By type, the board carries 9 resistors, 8 capacitors, 4 ICs, 2 switches, 1 connector and 1 diode.
From the project

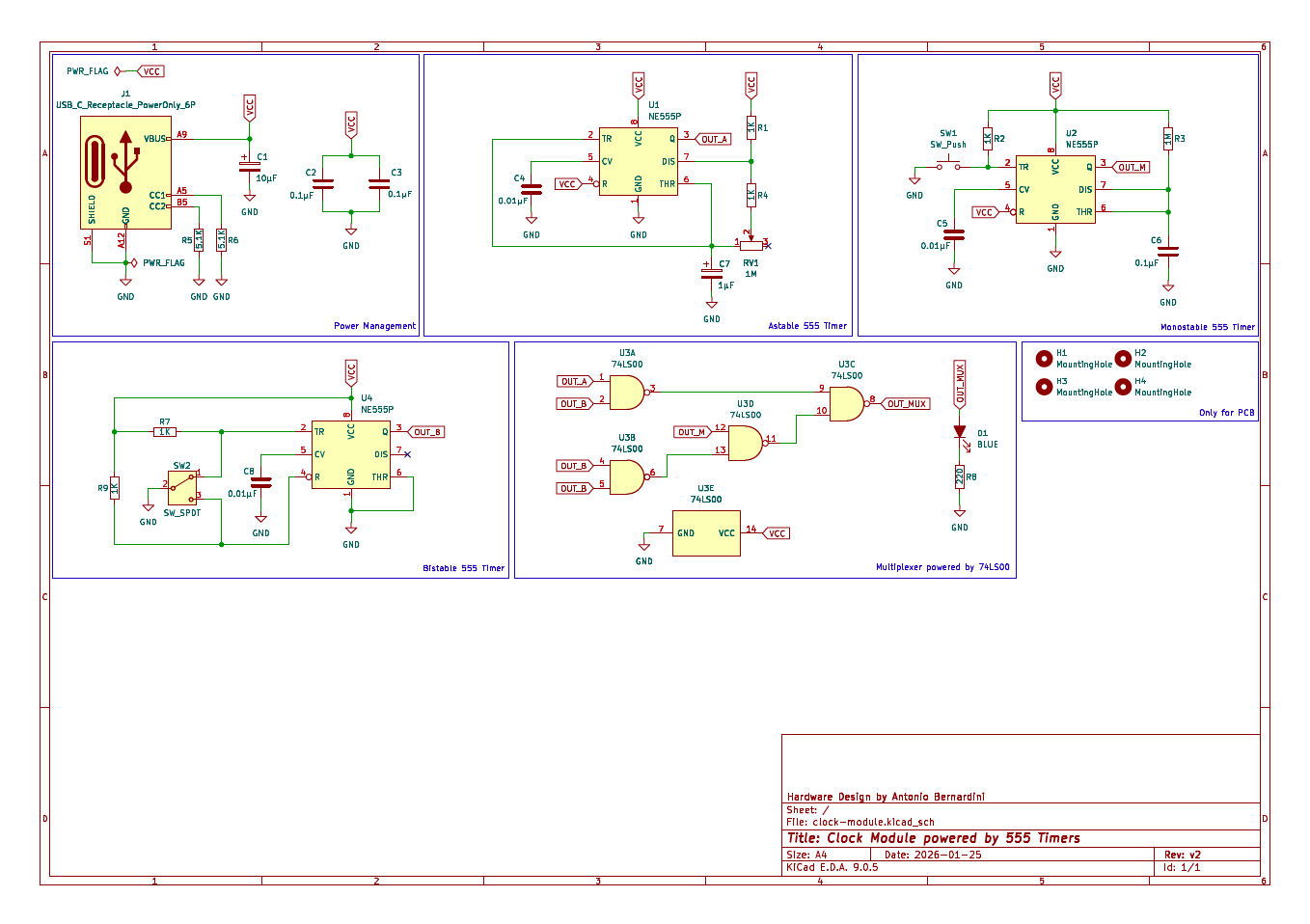

DIY Clock Module powered by 555 Timers
https://github.com/user-attachments/assets/6f4d9207-cf31-4d4b-aec3-0dd87077b01e
Main components on the Clock module
Clock module bill of materials (BOM)
26 components, 15 distinct parts.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 3 | NE555P | DIP-8_W7.62mm | U1, U2, U4 |
| 1 | 74LS00 | DIP-14_W7.62mm | U3 |
| 1 | USB_C_Receptacle_PowerOnly_6P | USB_C_Receptacle_GCT_USB4135-GF-A_6P_TopMnt_Horizontal | J1 |
| 1 | 1M | Potentiometer_Bourns_PTV09A-1_Single_Vertical | RV1 |
| 1 | SW_Push | SW_PUSH_6mm_H5mm | SW1 |
| 1 | SW_SPDT | DPDT-pushbutton | SW2 |
| 1 | BLUE | LED_D5.0mm | D1 |
| 1 | 10µF | CP_Radial_D5.0mm_P2.00mm | C1 |
| 3 | 0.1µF | C_Disc_D4.3mm_W1.9mm_P5.00mm | C2, C3, C6 |
| 3 | 0.01µF | C_Disc_D4.3mm_W1.9mm_P5.00mm | C4, C5, C8 |
| 1 | 1µF | CP_Radial_D5.0mm_P2.00mm | C7 |
| 5 | 1K | R_Axial_DIN0207_L6.3mm_D2.5mm_P7.62mm_Horizontal | R1, R2, R4, R7, R9 |
| 1 | 1M | R_Axial_DIN0207_L6.3mm_D2.5mm_P7.62mm_Horizontal | R3 |
| 2 | 5.1K | R_Axial_DIN0207_L6.3mm_D2.5mm_P7.62mm_Horizontal | R5, R6 |
| 1 | 220 | R_Axial_DIN0207_L6.3mm_D2.5mm_P7.62mm_Horizontal | R8 |
