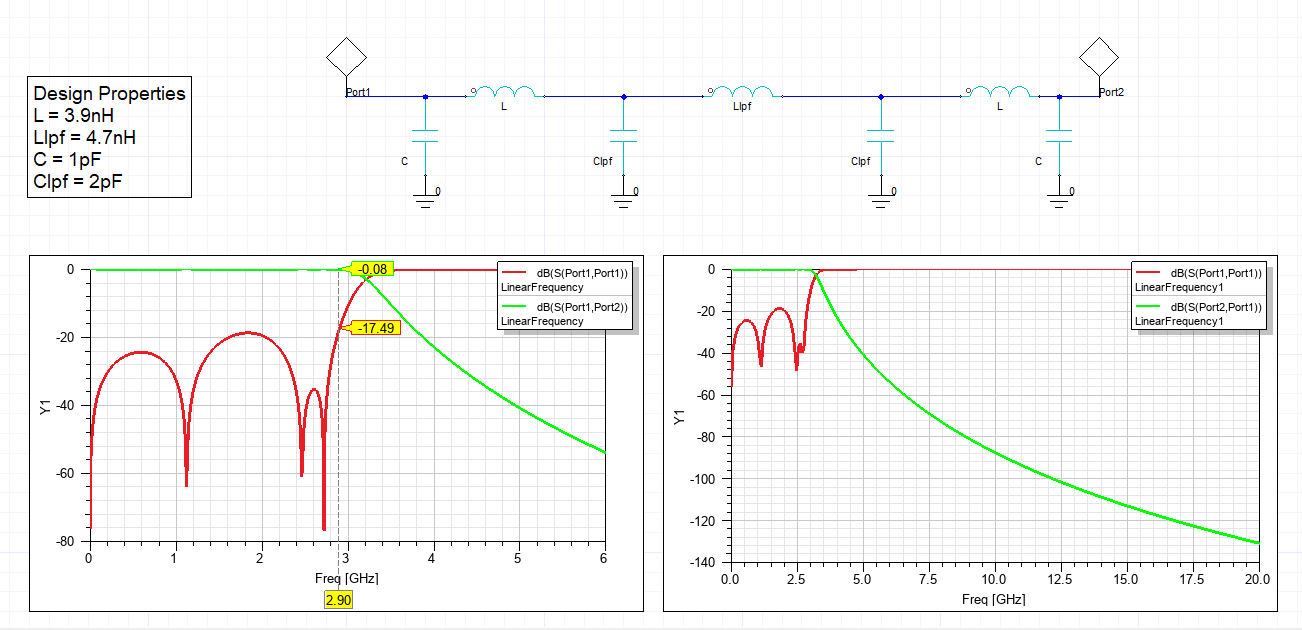

TG LPF 3GHz SIOS
About the TG LPF 3GHz SIOS PCB
TG LPF 3GHz SIOS is an open source PCB design by PA3AEF, published on GitHub under the MIT license. It is a 2-layer board measuring 19 × 19 mm, with 13 components from 8 distinct parts.
By type, the board carries 8 capacitors, 3 inductors and 2 connectors.
From the project
Homebrew tracking generator for base-band, 6cm, 3cm and 12mm bands
The Base‑Band module generates the 0–2.9 GHz portion of the Tracking Generator output. It uses the analyzer’s 1st LO as the swept RF input and mixes it with a locally generated LO_TG to recreate the analyzer’s RF sweep at the TG output.
This module contains the core RF building blocks for fundamental‑mode operation:
- clean LO_TG generation - LO driver amplification - fundamental mixer - post‑mix filtering - output leveling
TG LPF 3GHz SIOS bill of materials (BOM)
13 components, 8 distinct parts — part numbers from the project's BOM.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | CONN_01X02 IN | SMA_Samtec_SMA-J-P-H-ST-EM1_EdgeMount | J1 |
| 1 | OUT | SMA_Samtec_SMA-J-P-H-ST-EM1_EdgeMount | J2 |
| 1 | 22NH 3n9 | L_0805_2012Metric_Pad1.15x1.40mm_HandSolder | L1 |
| 1 | 4n7 | L_0805_2012Metric_Pad1.15x1.40mm_HandSolder | L2 |
| 1 | 3n9 | L_0805_2012Metric_Pad1.15x1.40mm_HandSolder | L3 |
| 5 | 100NF 1pF | C_0805_2012Metric_Pad1.18x1.45mm_HandSolder | C1, C3, C4, C5, C6 |
| 1 | 330NF 1pF | C_0805_2012Metric_Pad1.18x1.45mm_HandSolder | C2 |
| 2 | 100NF 0pF | C_0805_2012Metric_Pad1.18x1.45mm_HandSolder | C7, C8 |
TG LPF 3GHz SIOS design files
The KiCad project lives in the PA3AEF/HP8562A-Tracking-Generator repository on GitHub; these links point at the commit this page was built from.
TG LPF 3GHz SIOS: common questions
How big is the TG LPF 3GHz SIOS PCB?
The TG LPF 3GHz SIOS measures 19 × 19 mm, has 2 copper layers and is 0.79 mm thick.
How many components are on the TG LPF 3GHz SIOS?
13 components, from 8 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.
Where can I download the TG LPF 3GHz SIOS design files?
From the PA3AEF/HP8562A-Tracking-Generator repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.
Can I use the TG LPF 3GHz SIOS design in my own project?
Yes, under the terms of its MIT license, which PA3AEF chose for the repository.
