LEDMetaMatrix PCB layout, top view — open source AVR/Arduino board by PanoramixDeDruide

About the LEDMetaMatrix PCB

LEDMetaMatrix is an open source AVR/Arduino PCB design by PanoramixDeDruide, published on GitHub under the Unlicense license. It is a 2-layer board measuring 160 × 160 mm, with 52 components from 6 distinct parts.

Its main chip is the Arduino_Mega2560_R3_Shield, from the AVR/Arduino family. By type, the board carries 32 resistors, 18 connectors, 1 module and 1 switch.

From the project

KiCad & Arduino source files for a matrix of LED matrices.

Be sure to remove any comments from your .PBM source files!

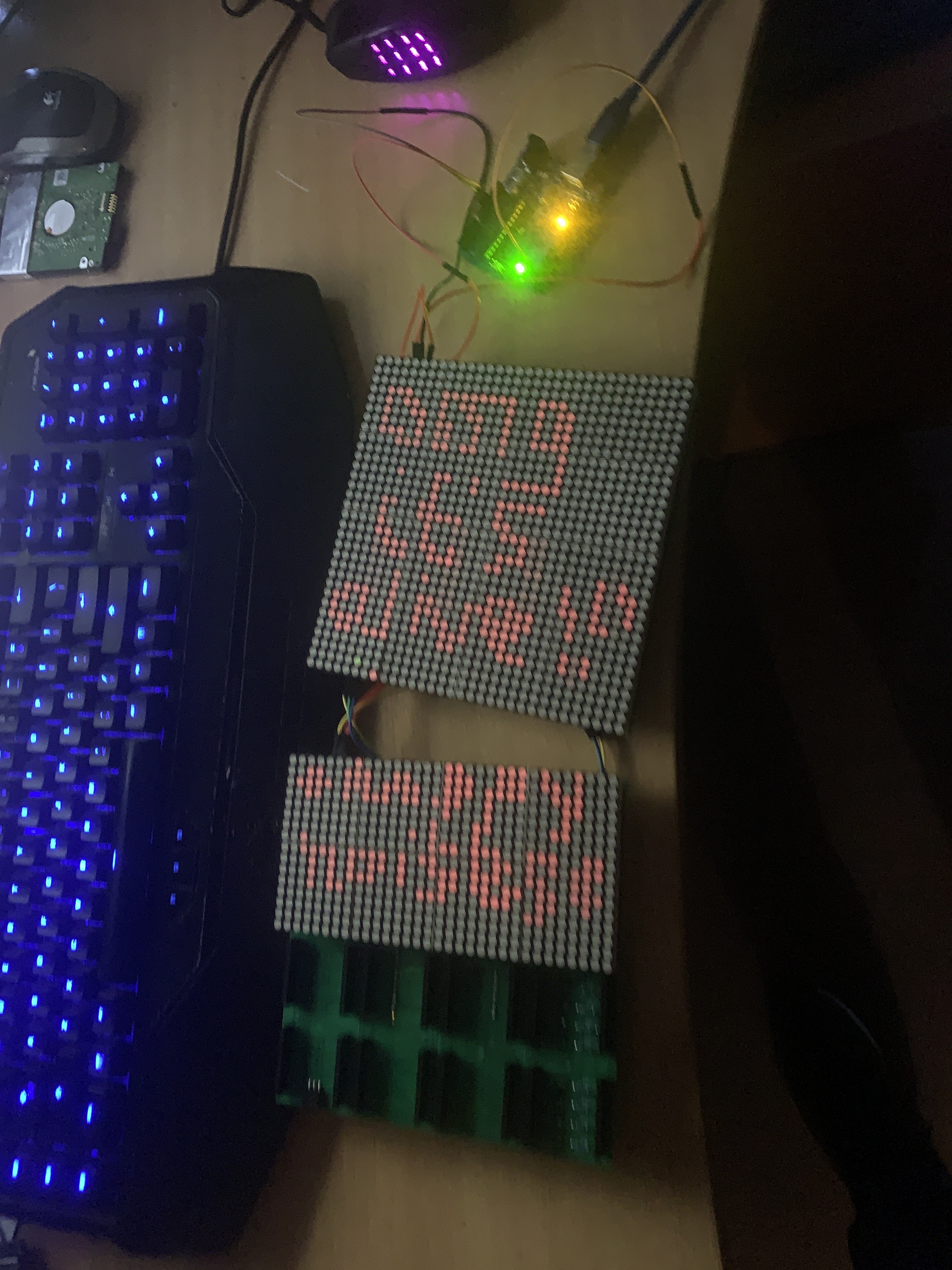

LEDMetaMatrix, from the project README
From the project README

Main components on the LEDMetaMatrix

Arduino_Mega2560_R3_Shield

LEDMetaMatrix bill of materials (BOM)

52 components, 6 distinct parts.

QtyPartRefs
1
Arduino_Mega2560_R3_Shield
A1
16
Conn_02x12_Socket
J1, J2, J3, J4, J5, J6, J8, J9 +8
1
Conn_01x03_Pin
J7
1
Conn_01x03_Socket
J13
1
SW_DIP_x03
SW1
32
R
R1, R2, R3, R4, R5, R6, R7, R8 +24

LEDMetaMatrix design files

The KiCad project lives in the PanoramixDeDruide/LEDMetaMatrix repository on GitHub; these links point at the commit this page was built from.

LEDMetaMatrix: common questions

What microcontroller does the LEDMetaMatrix use?

The LEDMetaMatrix is built around the Arduino_Mega2560_R3_Shield, from the AVR/Arduino family.

How big is the LEDMetaMatrix PCB?

The LEDMetaMatrix measures 160 × 160 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the LEDMetaMatrix?

52 components, from 6 distinct parts. The full bill of materials is listed on this page.

Where can I download the LEDMetaMatrix design files?

From the PanoramixDeDruide/LEDMetaMatrix repository on GitHub, which has the KiCad layout and the schematic; the links under Design files point to each one.

Can I use the LEDMetaMatrix design in my own project?

Yes, under the terms of its Unlicense license, which PanoramixDeDruide chose for the repository.

Can I test firmware for the LEDMetaMatrix without the hardware?

Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug AVR/Arduino firmware against it before you order a PCB.
