MSXgoauld fusion
Papipapito·MSXgoauld_fusion·goauld_1.8_norte/Sombrero_MSX_Goa'uld.kicad_pcb
About the MSXgoauld fusion PCB
MSXgoauld fusion is an open source PCB design by Papipapito, published on GitHub under the GPL-3.0 license. It is a 4-layer board measuring 32 × 66 mm, with 20 components from 12 distinct parts.
Other key parts include the C240801, C7848, C6779, Tang_Nano_20k and C2869734. By type, the board carries 7 ICs, 7 capacitors, 3 connectors and 3 resistors.
It belongs with the retro computing designs in this gallery.
From the project

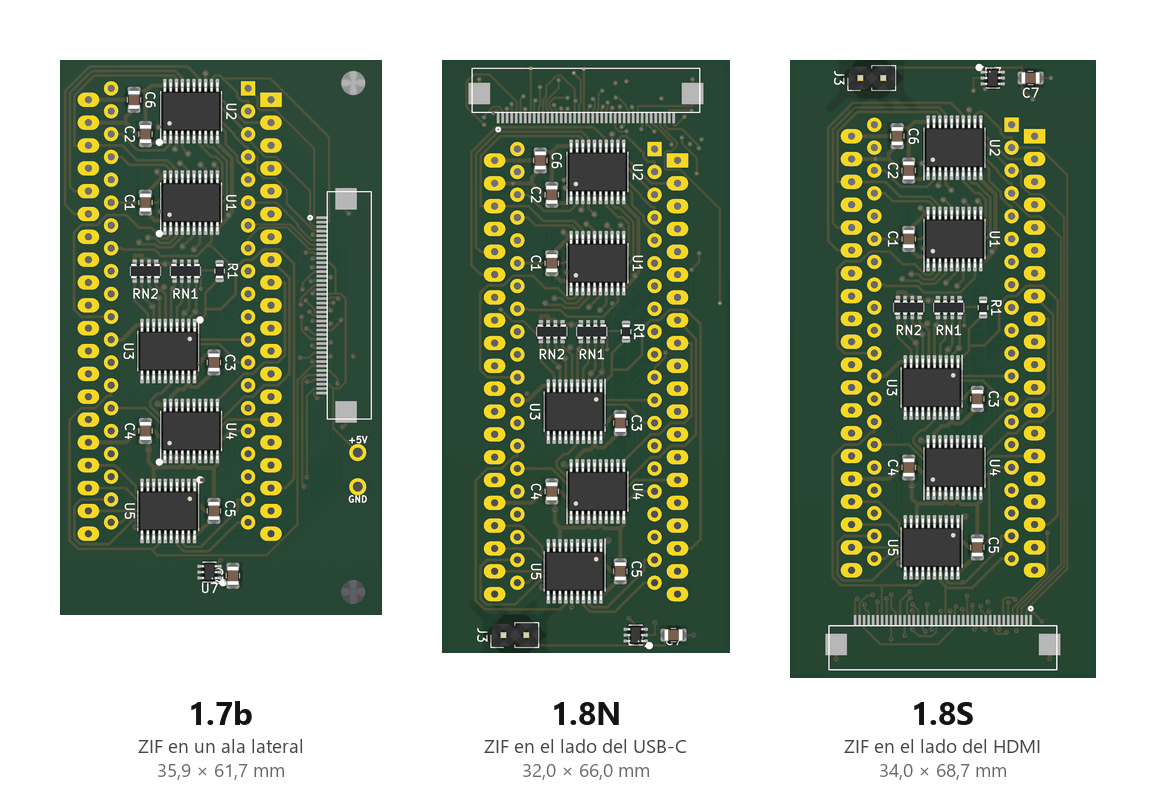

Placas MSX Goa'uld SD (Tang Nano 20K) con conector ZIF FFC de 40 vías: en el zócalo del Z80 o por cable con goauldext. Versiones 1.7b, 1.8N y 1.8S. Derivado de jabadiagm (GPL-3.0).
Placas MSX Goa'uld SD (Tang Nano 20K, proyecto de jabadiagm) que, además de pincharse en el zócalo del Z80, llevan un conector ZIF FFC de 40 vías y 0,5 mm. Con él la Goa'uld puede ir fuera del zócalo, unida por cable plano a la extensión goauldext de leomanes.
Las tres se usan igual: pinchadas en el zócalo del Z80 con sus pines DIP-40, o fuera de él con el cable. Solo cambia por dónde sale el cable.

Main components on the MSXgoauld fusion
MSXgoauld fusion bill of materials (BOM)
20 components, 12 distinct parts — part numbers from the project's BOM.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 2 | C240801 SN74HCT373PWR | TSSOP-20_4.4x6.5mm_P0.65mm | U1, U2 |
| 2 | C7848 SN74LVC245APWR | TSSOP-20_4.4x6.5mm_P0.65mm | U3, U4 |
| 1 | C6779 SN74HCT245PWR | TSSOP-20_4.4x6.5mm_P0.65mm | U5 |
| 1 | Tang_Nano_20k | Tang_Nano_20k | U6 |
| 1 | C2869734 LM66100DCK | SOT-363_SC-70-6 | U7 |
| 1 | Z80CPU | DIP-40_W15.24mm_Socket | J1 |
| 1 | C564070 FFC40_ZIF_54104-4031 | FFC40_ZIF_54104-4031 | J2 |
| 1 | +5V/GND | PinHeader_1x02_P2.54mm_Vertical | J3 |
| 6 | C49678 100n | C_0805_2012Metric | C1, C2, C3, C4, C5, C6 |
| 1 | C28323 1uF | C_0805_2012Metric | C7 |
| 1 | C25804 10K | R_0603_1608Metric | R1 |
| 2 | C107374 R_Pack04 | R_Array_Convex_4x0603 | RN1, RN2 |
MSXgoauld fusion design files
The KiCad project lives in the Papipapito/MSXgoauld_fusion repository on GitHub; these links point at the commit this page was built from.
MSXgoauld fusion: common questions
How big is the MSXgoauld fusion PCB?
The MSXgoauld fusion measures 32 × 66 mm, has 4 copper layers and is 1.06 mm thick.
How many components are on the MSXgoauld fusion?
20 components, from 12 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.
Where can I download the MSXgoauld fusion design files?
From the Papipapito/MSXgoauld_fusion repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.
Can I use the MSXgoauld fusion design in my own project?
Yes, under the terms of its GPL-3.0 license, which Papipapito chose for the repository.
