Parallella Porcupine Breakout Board, Ver. 2

parallella·parallella-hw·porcupine/porcupine.kicad_pcb

Parallella Porcupine Breakout Board, Ver. 2 layout, top view — open source board by parallella

About the Parallella Porcupine Breakout Board, Ver. 2

Parallella Porcupine Breakout Board, Ver. 2 is an open source PCB design by parallella, published on GitHub under the Custom license license. It is a 6-layer board measuring 80 × 49.3 mm, with 32 components from 11 distinct parts.

By type, the board carries 16 connectors, 10 resistors and 2 capacitors.

It belongs with the dev boards & breakouts designs in this gallery.

From the project

Parallella board design files

Porcupine =================================

PARALLELLA BREAKOUT BOARD UART I2C (5V) SPDIF ANALOG INPUT PMOD JTAG 0.1" GPIO HEADERS WITH ADJUSTABLE VOLTAGE RASPBERRY PI CAMERA INTERFACE ELINK HEADERS

Schematic BOM Gerbers Layout Source * Schematic Source

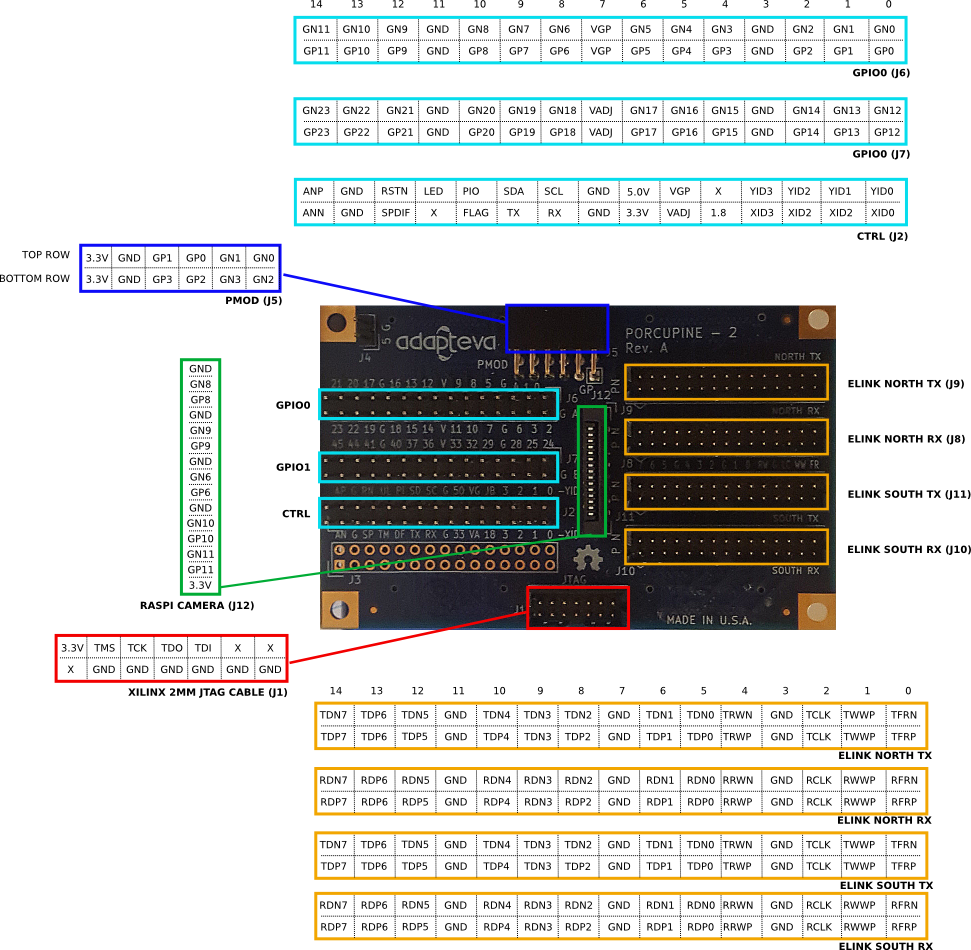

Parallella Porcupine Breakout Board, Ver. 2, from the project README
From the project README

Parallella Porcupine Breakout Board, Ver. 2 bill of materials (BOM)

32 components, 11 distinct parts — part numbers from the project's BOM.

QtyPartRefs
1
CONN\HDR\2MM\2R07\SHD
J1
4
CONN\HDR\P1\2R15
J2, J3, J6, J7
1
CONN\HDR\P1\1R02
J4
1
CONN\HDR\P1FRA\2R06
J5
4
CONN\HDR\2MM\2R15\SHD
J8, J9, J10, J11
1
CONN\FLEX\1MM\15
J12
4
CONN\SAMTEC\BTH\60
P1, P2, P3, P4
4
MTG\PTH\125\SQ
MH1, MH2, MH3, MH4
2
C\SMD0805\50V\104
MULTICOMP
C1, C2
8
200
YAGEO (PHYCOMP)
R1, R2, R3, R4, R5, R6, R7, R8
2
R\SMD0805\1PCT\10K0
WURTH ELEKTRONIK
R9, R10

Parallella Porcupine Breakout Board, Ver. 2 design files

The KiCad project lives in the parallella/parallella-hw repository on GitHub; these links point at the commit this page was built from.

Parallella Porcupine Breakout Board, Ver. 2: common questions

How big is the Parallella Porcupine Breakout Board, Ver. 2?

The Parallella Porcupine Breakout Board, Ver. 2 measures 80 × 49.3 mm, has 6 copper layers and is 1.6 mm thick.

How many components are on the Parallella Porcupine Breakout Board, Ver. 2?

32 components, from 11 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.

Where can I download the Parallella Porcupine Breakout Board, Ver. 2 design files?

From the parallella/parallella-hw repository on GitHub, which has the KiCad layout and the BOM; the links under Design files point to each one.

Can I use the Parallella Porcupine Breakout Board, Ver. 2 design in my own project?

It is published under Custom license, which limits how it may be reused; read the license before building on it.
