Mixed Signal Frequency Divider
About the Mixed Signal Frequency Divider PCB
Mixed Signal Frequency Divider is an open source PCB design by PatelVatsalB21, published on GitHub under the Apache-2.0 license. It is a board, with 8 components from 6 distinct parts.
Other key parts include the PORT. By type, the board carries 4 resistors, 1 IC, 1 crystal and 1 capacitor.
It belongs with the audio designs in this gallery.
From the project
Frequency Divider designed using eSim, Makerchip IDE and Ngspice

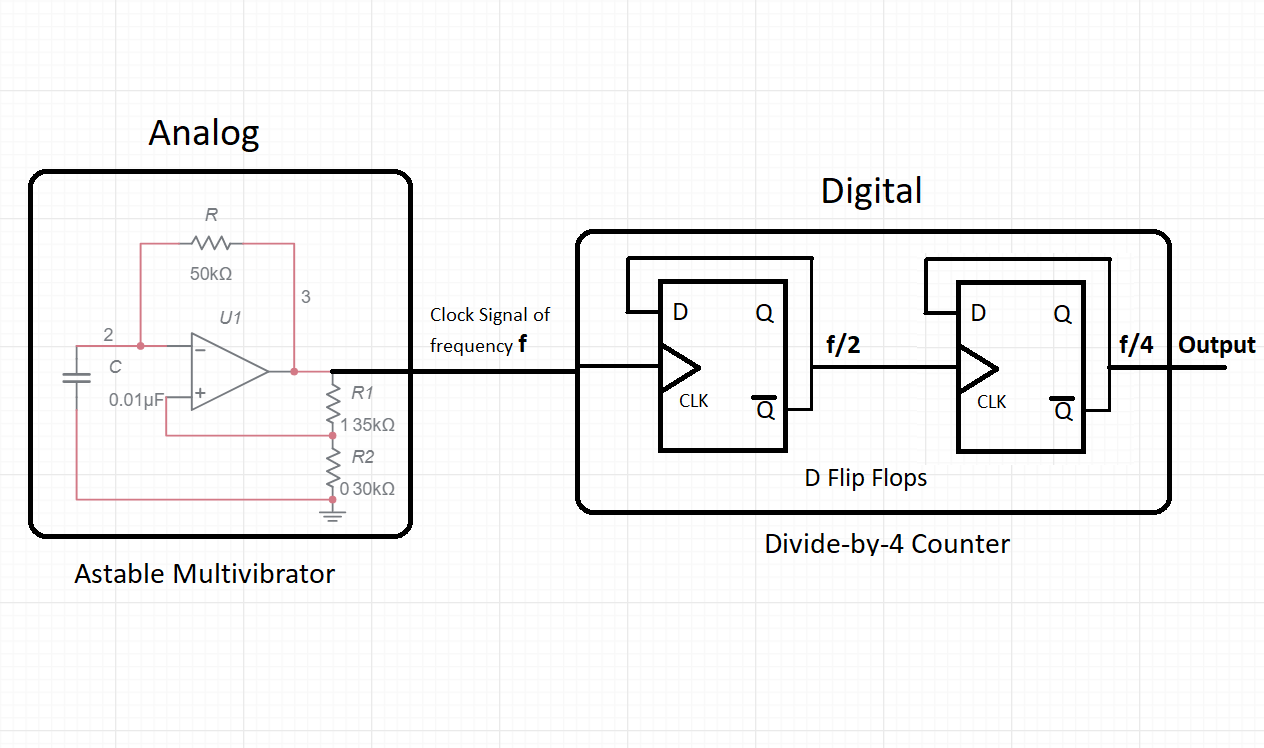

The Frequency Divider is made up of an astable multivibrator and a divide-by-4 counter. The astable multivibrator generates a clock signal of a specific frequency which is used as an input in the counter. Then the counter produces an output signal of a divide-by-4 frequency.
The Astable Multivibrator is also called a free-running multivibrator. It has two quasi-stable states and no external signal is required to produce the changes in state. The component values are used to decide the time for which circuit remains in each state. Usually, as the astable multivibrator oscillates between two…
Main components on the Mixed Signal Frequency Divider
Mixed Signal Frequency Divider bill of materials (BOM)
8 components, 6 distinct parts.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | PORT | U1 | |
| 1 | lm_741 | X1 | |
| 1 | 5V | R1 | v1 |
| 1 | 0.01u | C1 | |
| 2 | 10k | R1, R4 | |
| 2 | 1k | R2, R3 |
