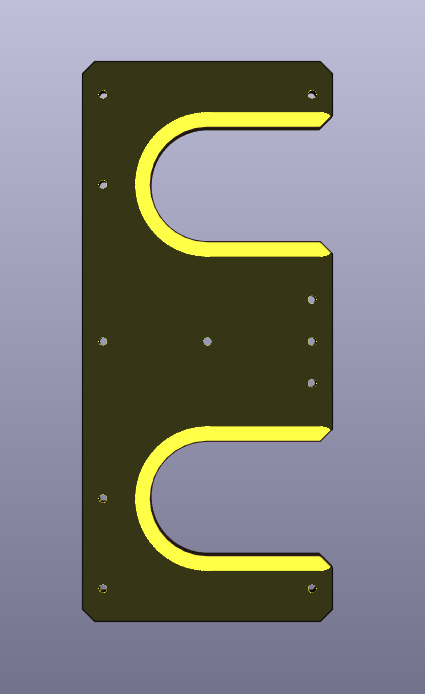

HP6632B shorting bar PCB layout, top view — open source board by PatrickBaus

About the HP6632B shorting bar PCB

HP6632B shorting bar is an open source PCB design by PatrickBaus, published on GitHub under the CERN-OHL-W-2.0 license. It is a 2-layer board measuring 15.2 × 34 mm, with 1 components from 1 distinct parts.

It belongs with the power & battery designs in this gallery.

From the project

A PCB shorting bar to connect the force to sense terminals.

I used a PCB which was plated to make sure no corrosion builds up on the surface.

- HP 66332A and HP 6632B-6634B Frontpanel Binding Post PCB

- MAJOR versions in this context mean a breaking change to the external interface of the hardware like different connectors or functions. - MINOR versions contain changes to the hardware that only affect the inner workings of the circuit, but otherwise the performance is unaffected. - PATCH versions do not affect the schematics or invalidate older bill of materials. These changes may include updated components (to replace obsolete parts for example)…

HP6632B shorting bar, from the project README
From the project README

HP6632B shorting bar bill of materials (BOM)

1 components, 1 distinct parts.

QtyPartRefs
1
Conn_01x01
J1

HP6632B shorting bar design files

The KiCad project lives in the PatrickBaus/HP6632B_shorting_bar repository on GitHub; these links point at the commit this page was built from.

HP6632B shorting bar: common questions

How big is the HP6632B shorting bar PCB?

The HP6632B shorting bar measures 15.2 × 34 mm, has 2 copper layers and is 0.82 mm thick.

How many components are on the HP6632B shorting bar?

1 components, from 1 distinct parts. The full bill of materials is listed on this page.

Where can I download the HP6632B shorting bar design files?

From the PatrickBaus/HP6632B_shorting_bar repository on GitHub, which has the KiCad layout and the schematic; the links under Design files point to each one.

Can I use the HP6632B shorting bar design in my own project?

Yes, under the terms of its CERN-OHL-W-2.0 license, which PatrickBaus chose for the repository.
