LT3032 breakout
PatrickBaus·LT3032_breakout
About the LT3032 breakout
LT3032 breakout is an open source PCB design by PatrickBaus, published on GitHub under the CERN-OHL-1.2 license. It is a 2-layer board measuring 26 × 15.4 mm, with 9 components from 5 distinct parts.
Other key parts include the LT3032-X. By type, the board carries 6 capacitors, 2 connectors and 1 IC.
It belongs with the dev boards & breakouts designs in this gallery.
From the project

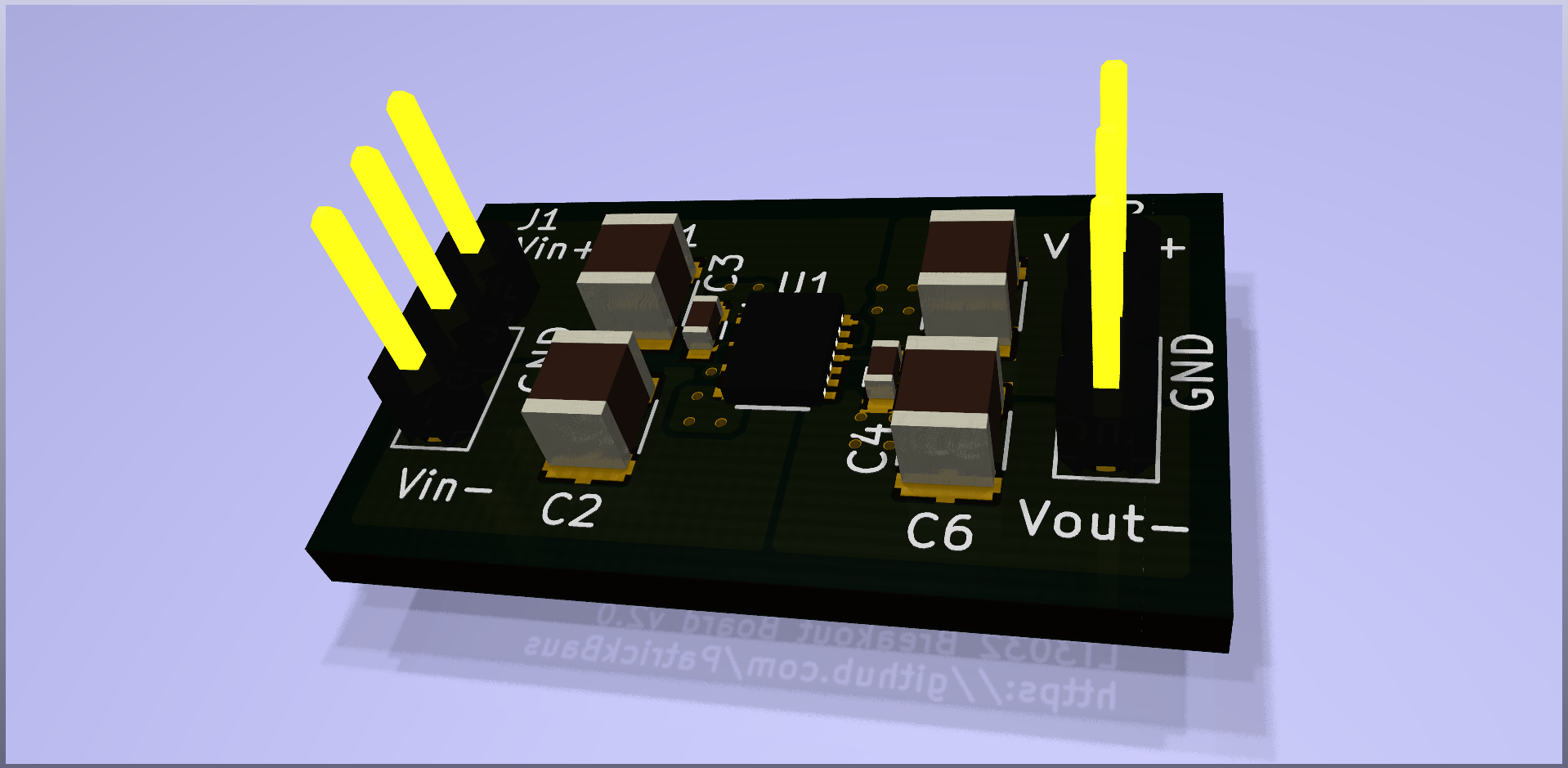

LT3032 Breakout Board
This repository contains the KiCAD PCB project files for a breakout board for the Linear Technologies LT3032 dual 150 mA, positive/negative, low noise, LDO (http://www.linear.com/product/LT3032).
About ----- This breakout board only supports the fixed voltage versions of the LT3032. There are 4 version available: ±3.3V ±5V ±12V ±15V
The root folder contains the KiCAD files and the bill of materials, while the gerber files can be found in the /gerber folder.

Main components on the LT3032 breakout
LT3032 breakout bill of materials (BOM)
9 components, 5 distinct parts — part numbers from the project's BOM.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | LT3032-X | Linear_DE14MA | U1 |
| 1 | Input | PinHeader_1x03_P2.54mm_Vertical | J1 |
| 1 | Output | PinHeader_1x03_P2.54mm_Vertical | J2 |
| 4 | 10u | C_1210_3225Metric | C1, C2, C5, C6 |
| 2 | 10n | C_0603_1608Metric | C3, C4 |
LT3032 breakout design files
The KiCad project lives in the PatrickBaus/LT3032_breakout repository on GitHub; these links point at the commit this page was built from.
- LayoutLT3032-breakout.kicad_pcb
- BOMBOM.csv
LT3032 breakout: common questions
How big is the LT3032 breakout?
The LT3032 breakout measures 26 × 15.4 mm, has 2 copper layers and is 1.6 mm thick.
How many components are on the LT3032 breakout?
9 components, from 5 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.
Where can I download the LT3032 breakout design files?
From the PatrickBaus/LT3032_breakout repository on GitHub, which has the KiCad layout and the BOM; the links under Design files point to each one.
Can I use the LT3032 breakout design in my own project?
Yes, under the terms of its CERN-OHL-1.2 license, which PatrickBaus chose for the repository.
