About the LT3045 breakout
LT3045 breakout is an open source PCB design by PatrickBaus, published on GitHub under the CERN-OHL-1.2 license. It is a 2-layer board measuring 10.2 × 14.6 mm, with 10 components from 8 distinct parts.
Other key parts include the LT3045EDD. By type, the board carries 4 resistors, 3 capacitors, 1 IC and 1 connector.
It belongs with the dev boards & breakouts designs in this gallery.
From the project

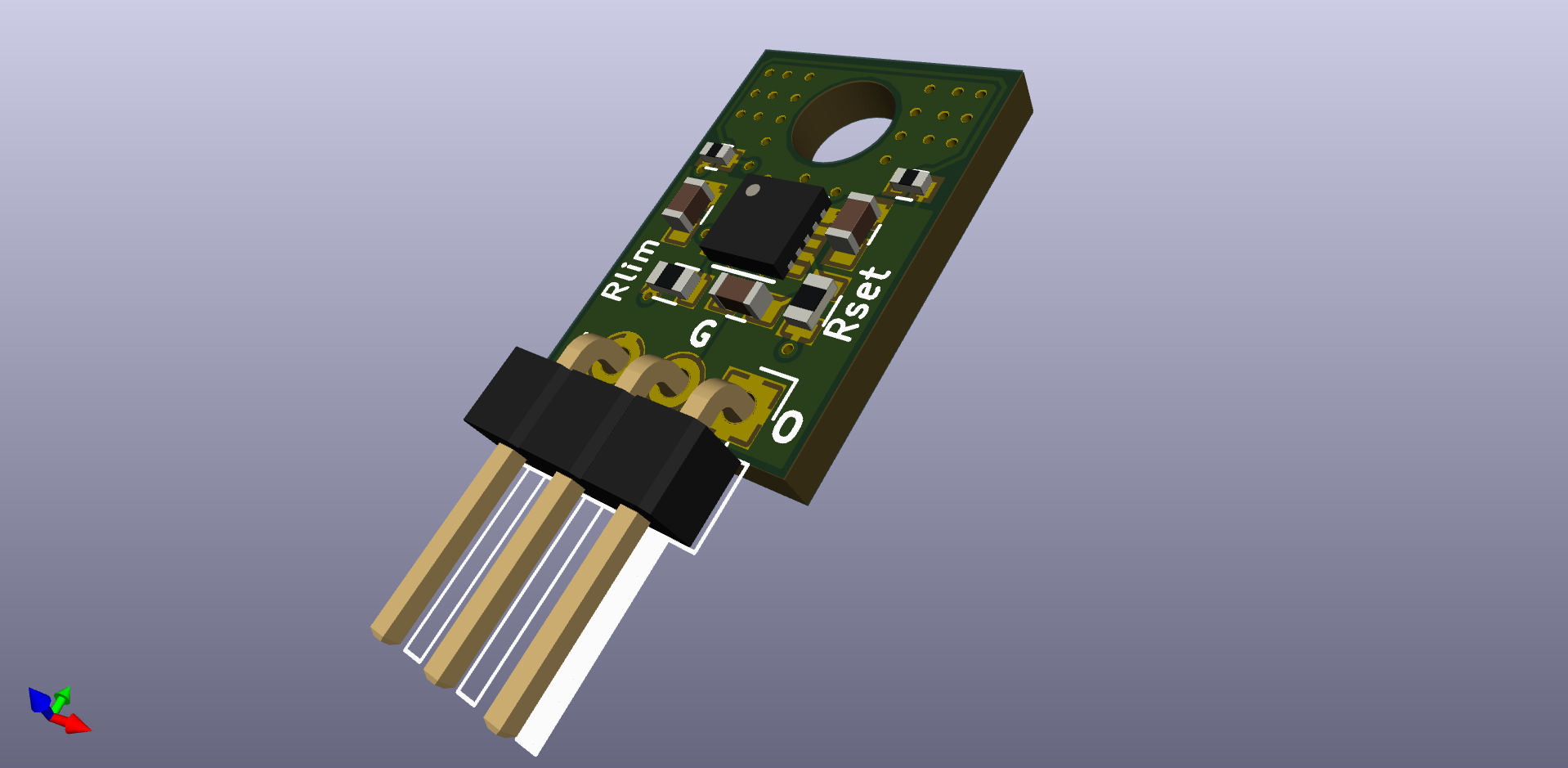

An LT3045 breakout board in 78xx size
LT3042/LT3045 Breakout Board ===================
This repository contains the KiCAD PCB project files for a breakout board for the Linear Technologies LT3042/LT3045 ultralow noise, ultrahigh PSRR, 200/500 mA LDO regulator (http://www.linear.com/product/LT3042, http://www.linear.com/product/LT3045).
About ----- This breakout board supports both the LT3042 and LT3045 LDO regulator. The package is designed as a drop-in replacement for the popular 78xx series.

Main components on the LT3045 breakout
LT3045 breakout bill of materials (BOM)
10 components, 8 distinct parts — part numbers from the project's BOM.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | LT3045EDD | DFN-10-1EP_3x3mm_Pitch0.5mm | U1 |
| 1 | CONN_01X03 | Pin_Header_Angled_1x03_Pitch2.54mm | J1 |
| 1 | NET-TIE | NET-TIE-0.15mm | W1 |
| 3 | 10u | C_0603 | C1, C2, C3 |
| 1 | 120k | R_0603 | R1 |
| 1 | 300 | R_0603 | R2 |
| 1 | 200k | R_0402 | R3 |
| 1 | 5.6k | R_0402 | R4 |
LT3045 breakout design files
The KiCad project lives in the PatrickBaus/LT3045_breakout repository on GitHub; these links point at the commit this page was built from.
- LayoutLT3045_breakout.kicad_pcb
- BOMBOM.csv
LT3045 breakout: common questions
How big is the LT3045 breakout?
The LT3045 breakout measures 10.2 × 14.6 mm, has 2 copper layers and is 1.6 mm thick.
How many components are on the LT3045 breakout?
10 components, from 8 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.
Where can I download the LT3045 breakout design files?
From the PatrickBaus/LT3045_breakout repository on GitHub, which has the KiCad layout and the BOM; the links under Design files point to each one.
Can I use the LT3045 breakout design in my own project?
Yes, under the terms of its CERN-OHL-1.2 license, which PatrickBaus chose for the repository.
