LT3090 breakout
About the LT3090 breakout
LT3090 breakout is an open source PCB design by PatrickBaus, published on GitHub under the CERN-OHL-1.2 license. It is a 2-layer board measuring 10.2 × 14.6 mm, with 7 components from 6 distinct parts.
Other key parts include the LT3090EDD. By type, the board carries 3 capacitors, 2 resistors, 1 IC and 1 connector.
It belongs with the dev boards & breakouts designs in this gallery.
From the project

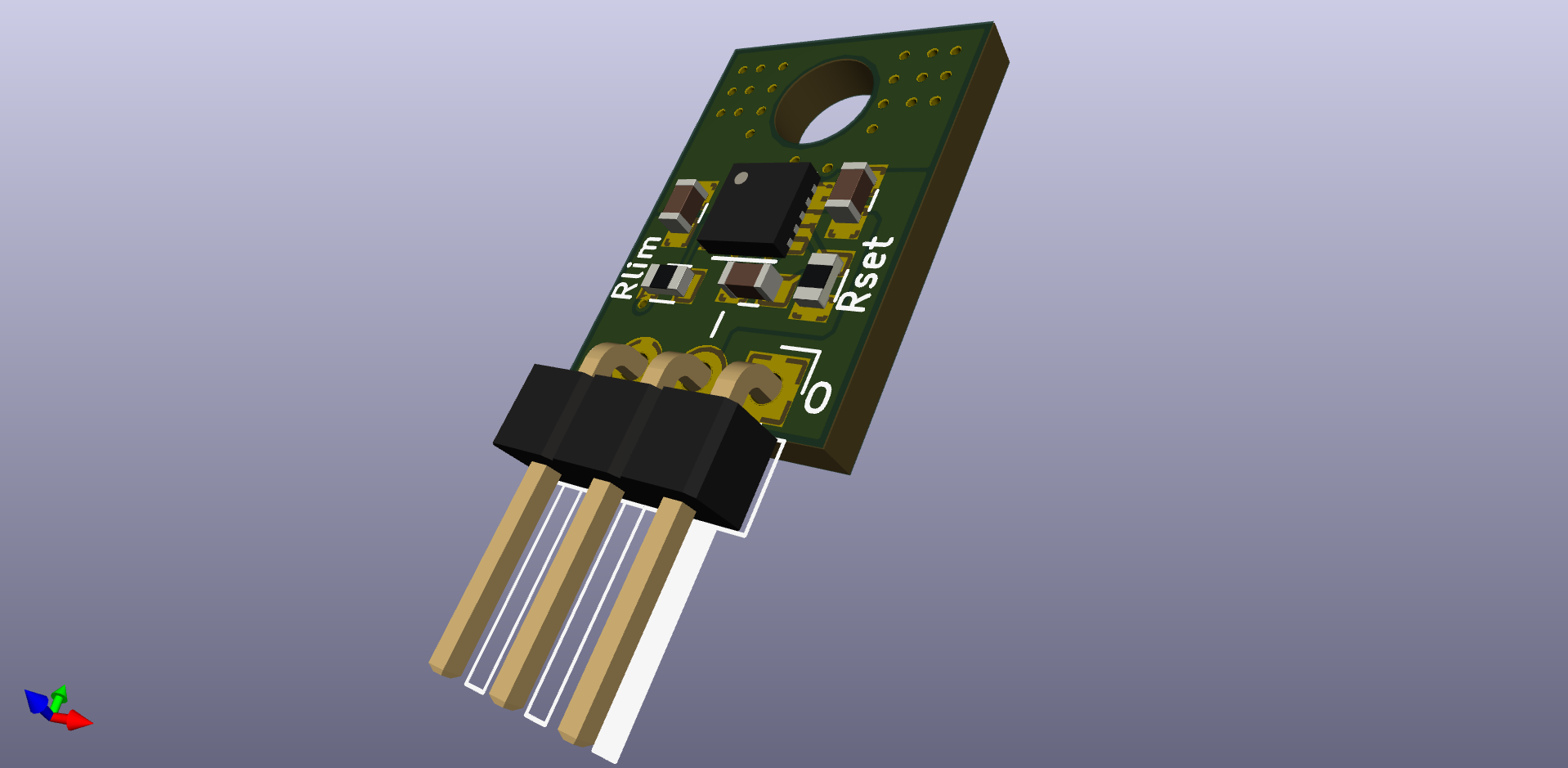

An LT3045 breakout board in 79xx size
LT3090 Breakout Board ===================
This repository contains the KiCAD PCB project files for a breakout board for the Linear Technologies LT3090 –36V, 600mA negative LDO regulator (http://www.linear.com/product/LT3090, http://www.linear.com/product/LT3090).
About ----- This breakout board supports the LT3090 LDO regulator. The package is designed as a drop-in replacement for the popular 79xx series.
Main components on the LT3090 breakout
LT3090 breakout bill of materials (BOM)
7 components, 6 distinct parts.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | LT3090EDD | DFN-10-1EP_3x3mm_Pitch0.5mm | U1 |
| 1 | CONN_01X03 | Pin_Header_Angled_1x03_Pitch2.54mm | J1 |
| 2 | 10u | C_0603 | C1, C3 |
| 1 | 100n | C_0603 | C2 |
| 1 | 10k | R_0603 | R1 |
| 1 | 243k | R_0603 | R2 |
LT3090 breakout design files
The KiCad project lives in the PatrickBaus/LT3090_breakout repository on GitHub; these links point at the commit this page was built from.
LT3090 breakout: common questions
How big is the LT3090 breakout?
The LT3090 breakout measures 10.2 × 14.6 mm, has 2 copper layers and is 1.6 mm thick.
How many components are on the LT3090 breakout?
7 components, from 6 distinct parts. The full bill of materials is listed on this page.
Where can I download the LT3090 breakout design files?
From the PatrickBaus/LT3090_breakout repository on GitHub, which has the KiCad layout; the links under Design files point to each one.
Can I use the LT3090 breakout design in my own project?
Yes, under the terms of its CERN-OHL-1.2 license, which PatrickBaus chose for the repository.
