Light-Follower

pavlovicdjordje35·Light-Follower·AltiumFiles/PCB1.kicad_pcb

Light-Follower PCB layout, top view — open source PIC board by pavlovicdjordje35

About the Light-Follower PCB

Light-Follower is an open source PIC PCB design by pavlovicdjordje35, published on GitHub. It is a 2-layer board measuring 125.4 × 80.3 mm, with 45 components from 12 distinct parts.

Its main chip is the DSPIC30F4013-20E/P, from the PIC family. Other key parts include the LM7805CT and SS-104-G-2. By type, the board carries 12 capacitors, 11 resistors, 8 diodes, 4 ICs, 1 crystal and 1 connector.

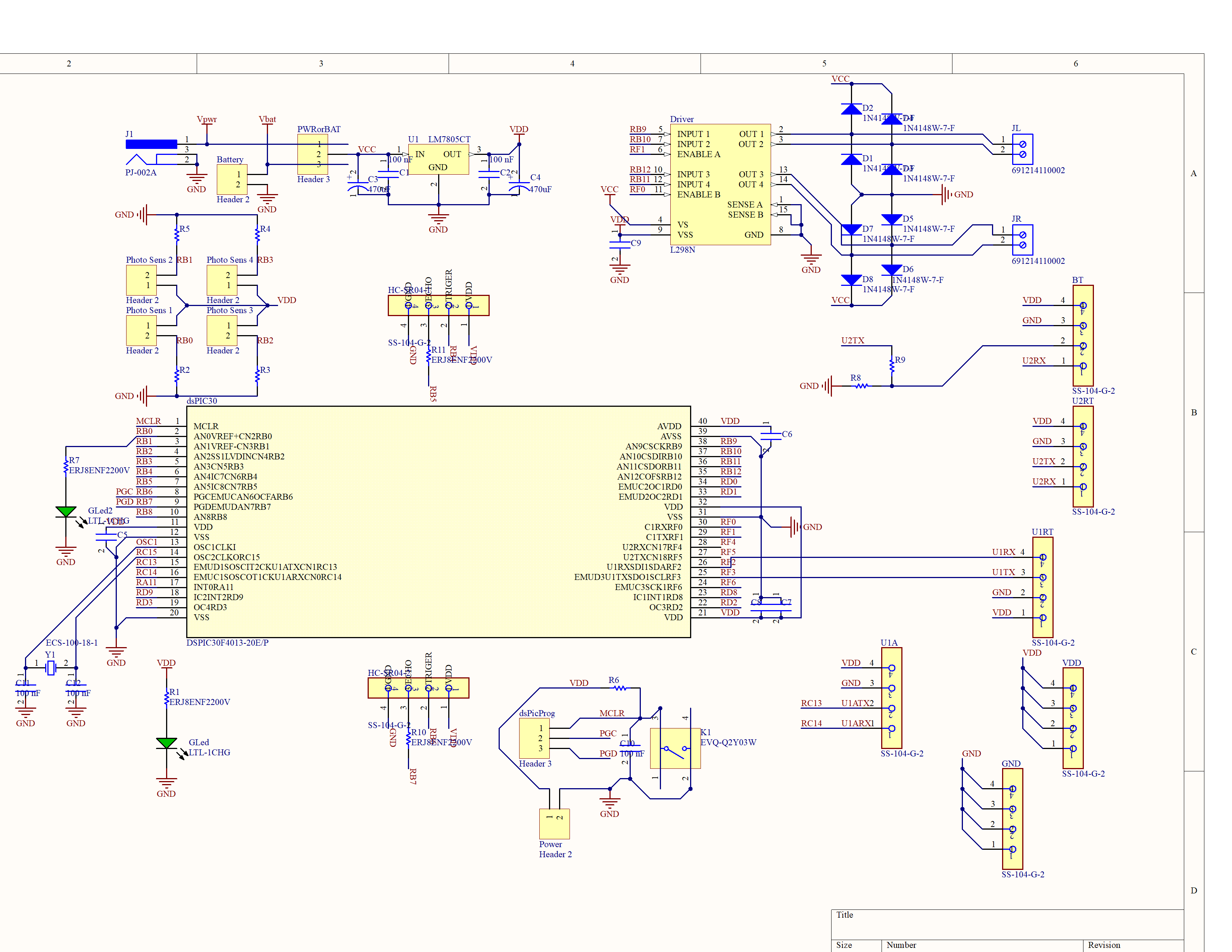

Light-Follower, from the project README
From the project README

Main components on the Light-Follower

LM7805CTSS-104-G-2

Light-Follower bill of materials (BOM)

45 components, 12 distinct parts.

QtyPartRefs
1
LM7805CT
U1
3
SS-104-G-2
U1A, U1RT, U2RT
1
ECS-100-18-1
Y1
1
PJ-002A
J1
1
LTL-1CHG
GLed2
2
SS-104-G-2
HC-SR04-1, HC-SR04-2
4
Header 2
Photo Sens 1, Photo Sens 2, Photo Sens 3, Photo Sens 4
1
DSPIC30F4013-20E/P
dsPIC30
8
1N4007
D1, D2, D3, D4, D5, D6, D7, D8
2
EEUHD1H471B
C1, C2
10
C320C104K5R5TA
C3, C4, C5, C6, C7, C8, C9, C10 +2
11
Res1
R1, R2, R3, R4, R5, R6, R7, R8 +3

Light-Follower design files

The KiCad project lives in the pavlovicdjordje35/Light-Follower repository on GitHub; these links point at the commit this page was built from.

Light-Follower: common questions

What microcontroller does the Light-Follower use?

The Light-Follower is built around the DSPIC30F4013-20E/P, from the PIC family.

How big is the Light-Follower PCB?

The Light-Follower measures 125.4 × 80.3 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the Light-Follower?

45 components, from 12 distinct parts. The full bill of materials is listed on this page.

Where can I download the Light-Follower design files?

From the pavlovicdjordje35/Light-Follower repository on GitHub, which has the KiCad layout; the links under Design files point to each one.

Can I use the Light-Follower design in my own project?

The repository has no license, so all rights stay with pavlovicdjordje35. Use it as a reference, and ask the author before reusing the design.

Can I test firmware for the Light-Follower without the hardware?

Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug PIC firmware against it before you order a PCB.
