Kicad-7-Series PCB layout, top view — open source AVR/Arduino board by pcbcupid
Simulate this board

About the Kicad-7-Series PCB

Kicad-7-Series is an open source AVR/Arduino PCB design by pcbcupid, published on GitHub under the MIT license. It is a 2-layer board measuring 60 × 60 mm, with 9 components from 9 distinct parts.

Its main chip is the ATtiny85V-10P, from the AVR/Arduino family. By type, the board carries 4 resistors, 1 IC, 1 battery holder, 1 microphone, 1 switch and 1 diode.

From the project

This Repo is a collection of project files to a series of KiCad 7 tutorial, Which will take you through the journey of learning KiCad from scratch to making your first Printed Circuit Board.

Kicad Development Series As Playlist : https://www.youtube.com/playlist?list=PLn6004q9oeqGl91KifK6xHGuqvXGb374G Kicad Development Series As Articles : https://pcbcupid.com/posts/category/tutorial/ Kicad Development Series As Compiled Version : https://www.youtube.com/watch?v=KgmsvopC9Qk Project Prototype Video : https://www.youtube.com/shorts/tJBAuqj2w3I

If you have any question or doubts regarding any of the project file, You can drop your questions here : https://pcbcupid.com/questions/

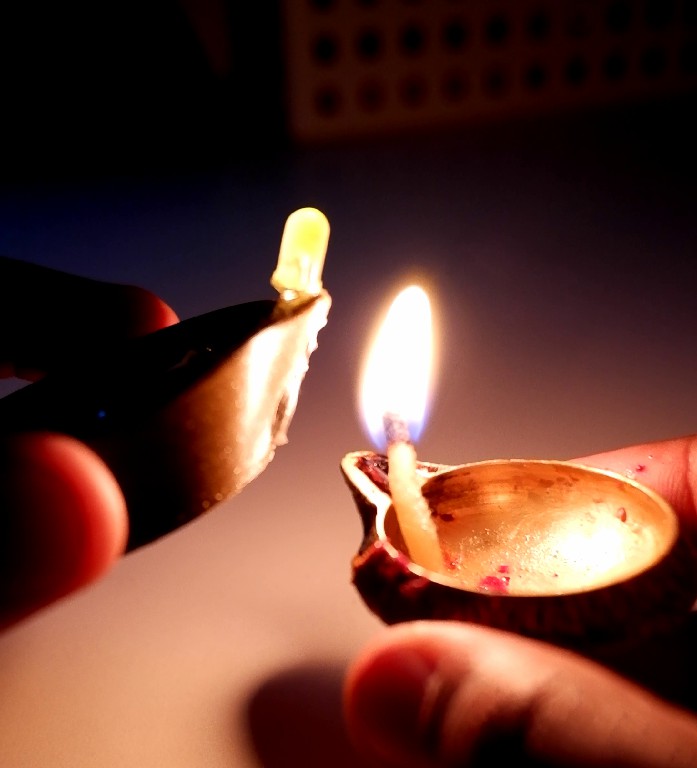

Kicad-7-Series, from the project README
From the project README

Main components on the Kicad-7-Series

ATtiny85V-10P

Kicad-7-Series bill of materials (BOM)

9 components, 9 distinct parts.

QtyPartRefs
1
ATtiny85V-10P
U1
1
3.3V Cell
BT1
1
Microphone_Condenser
MK1
1
SW_SPDT
SW1
1
5mm Yellow LED
D1
1
10k
R1
1
5mm LDR
R2
1
5.6k
R3
1
470R
R4

Kicad-7-Series design files

The KiCad project lives in the pcbcupid/Kicad-7-Series repository on GitHub; these links point at the commit this page was built from.

Kicad-7-Series: common questions

What microcontroller does the Kicad-7-Series use?

The Kicad-7-Series is built around the ATtiny85V-10P, from the AVR/Arduino family.

How big is the Kicad-7-Series PCB?

The Kicad-7-Series measures 60 × 60 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the Kicad-7-Series?

9 components, from 9 distinct parts. The full bill of materials is listed on this page.

Where can I download the Kicad-7-Series design files?

From the pcbcupid/Kicad-7-Series repository on GitHub, which has the KiCad layout and the schematic; the links under Design files point to each one.

Can I use the Kicad-7-Series design in my own project?

Yes, under the terms of its MIT license, which pcbcupid chose for the repository.

Can I test firmware for the Kicad-7-Series without the hardware?

Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug AVR/Arduino firmware against it before you order a PCB.
