About the TL866-FlashROM-Adapter PCB
TL866-FlashROM-Adapter is an open source PCB design by pdaehne, published on GitHub under the CC-BY-NC-4.0 license. It is a 2-layer board measuring 47.3 × 78.2 mm, with 4 components from 3 distinct parts.
It belongs with the retro computing designs in this gallery.
From the project

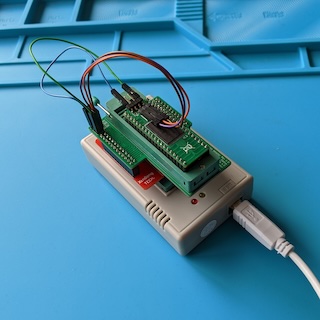

TL866 Programming Adapter for 29F400/29F800/29F160 Flash ROMs
This repository contains the KiCad project and Gerber files for a TL866 Programming Adapter for 29F400/29F800/29F160 Flash ROMs which are used to replace 29C400/29C800/29C160 EPROMs in retro machines like the Amiga.
The subdirectory "gerber-files" contains a Zip file you can use to order the PCB from PCB manufacturers like PCBWay or JLCPCB. Simply upload the Zip on their web page. I recommend to order the standard PCB thickness of 1.6mm and HASL finishing.

TL866-FlashROM-Adapter bill of materials (BOM)
4 components, 3 distinct parts.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 2 | Conn_02x12_Odd_Even | PinSocket_2x12_P2.54mm_Vertical | J1, J2 |
| 1 | ~ | ZIF_48Pin | J3 |
| 1 | Conn_02x03_Odd_Even | PinHeader_2x03_P2.54mm_Vertical | J4 |
TL866-FlashROM-Adapter design files
The KiCad project lives in the pdaehne/TL866-FlashROM-Adapter repository on GitHub; these links point at the commit this page was built from.
TL866-FlashROM-Adapter: common questions
How big is the TL866-FlashROM-Adapter PCB?
The TL866-FlashROM-Adapter measures 47.3 × 78.2 mm, has 2 copper layers and is 1.6 mm thick.
How many components are on the TL866-FlashROM-Adapter?
4 components, from 3 distinct parts. The full bill of materials is listed on this page.
Where can I download the TL866-FlashROM-Adapter design files?
From the pdaehne/TL866-FlashROM-Adapter repository on GitHub, which has the KiCad layout and the schematic; the links under Design files point to each one.
Can I use the TL866-FlashROM-Adapter design in my own project?
It is published under CC-BY-NC-4.0, which limits how it may be reused; read the license before building on it.
