Placa monitoramento lorawan

phfbertoleti·placa_monitoramento_lorawan·Hardware/placa_manutencao_preventiva/placa_manutencao_preventiva.kicad_pcb

Placa monitoramento lorawan PCB layout, top view — open source board by phfbertoleti

About the Placa monitoramento lorawan PCB

Placa monitoramento lorawan is an open source PCB design by phfbertoleti, published on GitHub under the MIT license. It is a 2-layer board measuring 58.4 × 74.7 mm, with 19 components from 15 distinct parts.

Other key parts include the Heltec_Wifi_LoRa_V1 and LM7805. By type, the board carries 7 connectors, 4 resistors, 3 diodes, 2 ICs, 2 capacitors and 1 transistor.

It belongs with the iot & wireless and displays & leds designs in this gallery.

From the project

Placa - Monitoramento LoRaWAN

Este é o repositório oficial da placa "Monitamento LoRaWAN" / placa "manutenção preventiva". Esta placa é um projeto open-source de minha autoria para monitamento de variáveis via LoRaWAN e para uso em algumas aplicações de manutenção preventiva. Este projeto faz uso do módulo Heltec wifi LoRa V1 (com conectividades LoRa/LoRaWAN, BLE e wi-fi).

Essa placa tem objetivo de facilitar o desenvolvimento de protótipos em Internet das Coisas, principalmente para aqueles focados em monitoramento remoto e manutenção preventiva. Para facilitar a montagem e uso, o Heltec wifi LoRa V1 e os módulos…

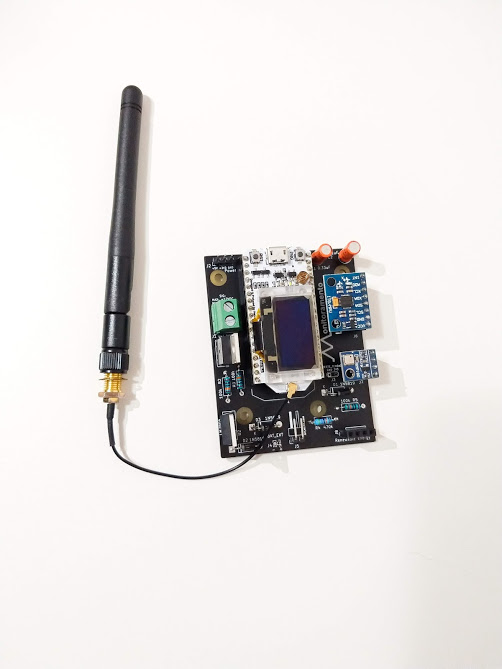

Placa monitoramento lorawan, from the project README — From the project README

Main components on the Placa monitoramento lorawan

Heltec_Wifi_LoRa_V1 LM7805

Placa monitoramento lorawan bill of materials (BOM)

19 components, 15 distinct parts.

Qty	Part	Footprint	Refs
1	Heltec_Wifi_LoRa_V1	Heltec_WiFi_LoRa_V1	U1
1	LM7805	TO-220-3_Vertical	U2
1	FQP30N06L	TO220V	Q2
1	ENT_DIGITAL	PhoenixContact_MCV_1,5_2-G-5.08_1x02_P5.08mm_Vertical	J1
1	Power	PinHeader_1x03_P2.54mm_Vertical	J2
1	BAT_EXT	PinHeader_1x02_P1.27mm_Vertical	J4
1	BAT_HELTEC_CONN	PinHeader_1x02_P2.54mm_Horizontal	J5
1	MPU6050	PinSocket_1x08_P2.54mm_Vertical	J6
1	BMP180	PinSocket_1x04_P2.54mm_Vertical	J7
1	Renewable energy	PinHeader_1x04_P2.54mm_Vertical	J8
3	1N5819	D_DO-41_SOD81_P10.16mm_Horizontal	D1, D2, D3
1	0.33uF	CP_Radial_D5.0mm_P2.00mm	C1
1	0.1uF	CP_Radial_D5.0mm_P2.00mm	C2
3	100k	R_Axial_DIN0207_L6.3mm_D2.5mm_P10.16mm_Horizontal	R2, R3, R5
1	470k	R_Axial_DIN0207_L6.3mm_D2.5mm_P10.16mm_Horizontal	R4

Placa monitoramento lorawan design files

The KiCad project lives in the phfbertoleti/placa_monitoramento_lorawan repository on GitHub; these links point at the commit this page was built from.

LayoutHardware/placa_manutencao_preventiva/placa_manutencao_preventiva.kicad_pcb

Placa monitoramento lorawan: common questions

How big is the Placa monitoramento lorawan PCB?

The Placa monitoramento lorawan measures 58.4 × 74.7 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the Placa monitoramento lorawan?

19 components, from 15 distinct parts. The full bill of materials is listed on this page.

Where can I download the Placa monitoramento lorawan design files?

From the phfbertoleti/placa_monitoramento_lorawan repository on GitHub, which has the KiCad layout; the links under Design files point to each one.

Can I use the Placa monitoramento lorawan design in my own project?

Yes, under the terms of its MIT license, which phfbertoleti chose for the repository.
