Ledcube
About the Ledcube PCB
Ledcube is an open source Raspberry Pi PCB design by philipwig, published on GitHub. It is a 4-layer board measuring 70 × 80 mm, with 85 components from 46 distinct parts.
Its main chip is the Raspberry Pi, from the Raspberry Pi family. Other key parts include the LMZ14203TZX-ADJ/NOPB, TPS53819ARGTR, CSD86360Q5D, MPU-9250 and ADS1000A0IDBVR. By type, the board carries 29 capacitors, 24 resistors, 8 connectors, 8 inductors, 6 fuses and 5 ICs.
It belongs with the power & battery designs in this gallery.
From the project

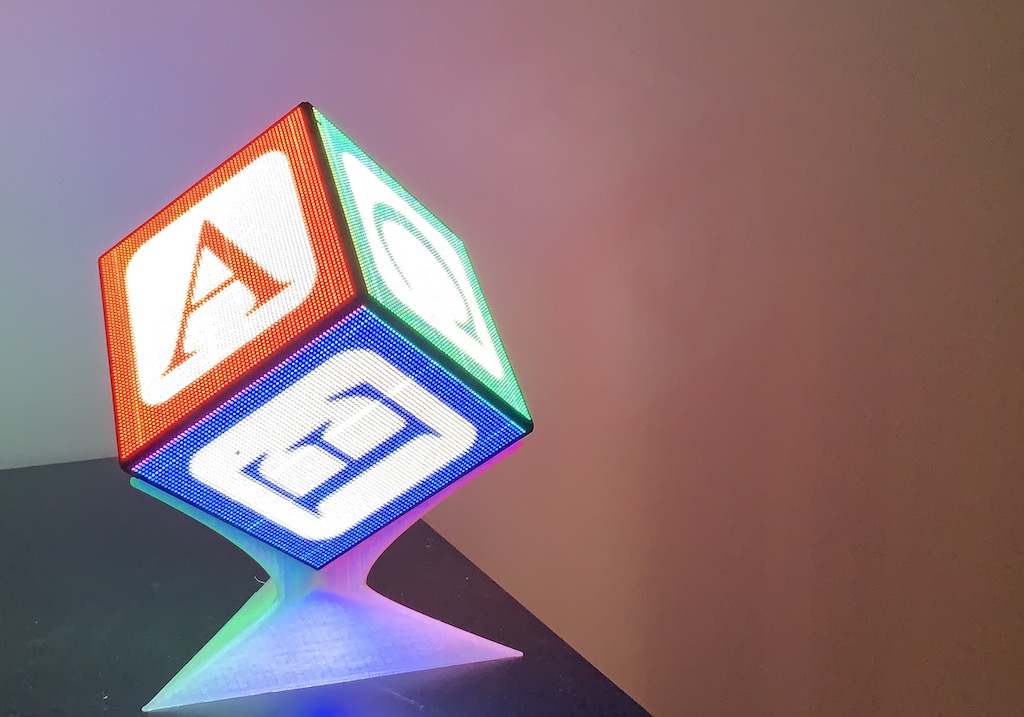

I saw Zaurak's and Polyfloyd's LED cubes, and decided I wanted to make one too. This one is smaller with denser LEDs. (2mm pitch instead of 2.5mm)
I saw Zaurak's and Polyfloyd's LED cubes, and decided I wanted to make one too. This one is smaller with denser LEDs. (2mm pitch instead of 2.5mm)
The cube's faces are six LED panels from Aliexpress. Each panel has 64×64 RGB leds and is driven by the HUB75 protocol.
The chassis is a combination of 3D printed PLA, machine screws, and magnets. The electronics can be installed and removed without tools.
Main components on the Ledcube
Ledcube bill of materials (BOM)
85 components, 46 distinct parts — part numbers from the project's BOM.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | LMZ14203TZX-ADJ/NOPB LMZ14203 TI | TO-PMOD_7 | U1 |
| 1 | TPS53819ARGTR TPS53819A TI | VQFN-16-1EP_3x3mm_P0.5mm_EP1.68x1.68mm_ThermalVias | U2 |
| 1 | CSD86360Q5D TI | Q5D | U3 |
| 1 | MPU-9250 InvenSense | InvenSense_QFN-24_3x3mm_P0.4mm | U4 |
| 1 | ADS1000A0IDBVR ADS1000 TI | SOT-23-6 | U5 |
| 1 | SI5504BDC-T1-GE3 SI5504BDC Vishay | 1206-8_or_SO-8 | Q1 |
| 1 | Battery In JST | JST_VH_B3PS-VH_1x03_P3.96mm_Horizontal | J1 |
| 6 | JST B2PS-VH JST | JST_VH_B2PS-VH_1x02_P3.96mm_Horizontal | J2, J3, J4, J5, J6, J7 |
| 1 | Raspberry Pi JST | JST_PUD_S10B-PUDSS-1_2x05_P2.00mm_Horizontal | J9 |
| 6 | NANOSMD400LR-C-2 Fuse Littelfuse | Fuse_1206_3216Metric | F1, F2, F3, F4, F5, F6 |
| 1 | SW_Push C&K | PTS645-Vx-39-2 | SW1 |
| 1 | LED, green Osram | LED_0603_1608Metric | D1 |
| 1 | LED, blue Osram | LED_0603_1608Metric | D2 |
| 1 | BAT54CTA BAT54C Diodes Inc. | SOT-23 | D3 |
| 7 | FBMJ3216HM600-T 60R Taiyo Yuden | L_1206_3216Metric | L1, L2, L3, L4, L5, L6, L7 |
| 1 | XAL1580-132MEB 1.3µH Coilcraft | Coilcraft_XAL1580 | L8 |
| 4 | GMK212B7105KG-T 1µF Taiyo Yuden | C_0805_2012Metric | C1, C6, C9, C11 |
| 2 | CGA4J2X7R2A104K125AA 100nF TDK | C_0805_2012Metric | C2, C15 |
| 1 | EDK107M050A9MAA 100µF Kemet | CP_Elec_8x10 | C3 |
| 2 | GRM21BR61E106MA73L 10µF Murata | C_0805_2012Metric | C4, C5 |
Show 26 more
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 2 | GRM188R71H103KA01D 10nF Murata | C_0603_1608Metric | C7, C29 |
| 1 | 885012206091 22nF Wurth | C_0603_1608Metric | C8 |
| 1 | LMK325BJ107MM-T 100µF Taiyo Yuden | C_1210_3225Metric | C10 |
| 3 | GRM21BR61E106MA73L 10µF Murata | C_1206_3216Metric | C13, C17, C31 |
| 1 | GMK212B7105KG-T 1µF Taiyo Yuden | C_0603_1608Metric | C14 |
| 1 | C0603C102J5RACTU 1nF Kemet | C_0603_1608Metric | C16 |
| 4 | 35SVPD47M 47µF Panasonic | CP_OSCON_Poly_F12 | C19, C20, C21, C22 |
| 4 | GRM32EC81C476KE15L 47µF Murata | C_1210_3225Metric | C23, C24, C25, C26 |
| 3 | GRM188R71C104KA01D 100nF Murata | C_0603_1608Metric | C27, C28, C30 |
| 2 | RC0603JR-07680R 680 Yageo | R_0603_1608Metric_Pad1.05x0.95mm_HandSolder | R1, R2 |
| 1 | RC0603JR-0710K 10K Yageo | R_0603_1608Metric | R3 |
| 4 | RC0603JR-07100K 100K Yageo | R_0603_1608Metric | R4, R7, R16, R24 |
| 1 | RC0603JR-07330K 330K Yageo | R_0603_1608Metric | R5 |
| 1 | RC0603JR-071K 1K Yageo | R_0603_1608Metric | R6 |
| 1 | RC0603JR-0768K 68K Yageo | R_0603_1608Metric | R8 |
| 1 | RC0603JR-076K8 6.8K Yageo | R_0603_1608Metric | R9 |
| 1 | RC0603JR-07120K 120K Yageo | R_0603_1608Metric | R10 |
| 1 | ERJ-3EKF5901V 5.90K 1% Panasonic | R_0603_1608Metric | R11 |
| 1 | ERJ-3EKF1071V 1.07K 1% Panasonic | R_0603_1608Metric | R12 |
| 1 | RMCF0603FT38K3 38.3K Stackpole | R_0603_1608Metric | R13 |
| 1 | CRCW0402294KFKED 294K Vishay-Dale | R_0402_1005Metric | R14 |
| 1 | CRCW0402976RFKED 976 VIshay-Dale | R_0402_1005Metric | R15 |
| 2 | CRCW08051R00FKEA 1 Vishay-Dale | R_0805_2012Metric | R17, R19 |
| 1 | ERJ-6RQF4R7V 4.7 Panasonic | R_0805_2012Metric | R18 |
| 2 | RNCP0603FTD10K0 10K 1% Stackpole | R_0603_1608Metric | R20, R22 |
| 2 | RC0603FR-0717K8L 1.78K 1% Yageo | R_0603_1608Metric | R21, R23 |
Ledcube design files
The KiCad project lives in the philipwig/ledcube repository on GitHub; these links point at the commit this page was built from.
Ledcube: common questions
What microcontroller does the Ledcube use?
The Ledcube is built around the Raspberry Pi, from the Raspberry Pi family.
How big is the Ledcube PCB?
The Ledcube measures 70 × 80 mm, has 4 copper layers and is 1.6 mm thick.
How many components are on the Ledcube?
85 components, from 46 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.
Where can I download the Ledcube design files?
From the philipwig/ledcube repository on GitHub, which has the KiCad layout and the BOM; the links under Design files point to each one.
Can I use the Ledcube design in my own project?
The repository has no license, so all rights stay with philipwig. Use it as a reference, and ask the author before reusing the design.
Can I test firmware for the Ledcube without the hardware?
Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug Raspberry Pi firmware against it before you order a PCB.
