001 dot flipper

pierre-muth·fast-flipdot·kicad/dot_flipper/001_dot_flipper.kicad_pcb

001 dot flipper PCB layout, top view — open source PIC board by pierre-muth

About the 001 dot flipper PCB

001 dot flipper is an open source PIC PCB design by pierre-muth, published on GitHub under the GPL-3.0 license. It is a 4-layer board measuring 71 × 10 mm, with 61 components from 10 distinct parts.

Its main chip is the PIC16F15355-I-MV, from the PIC family. Other key parts include the 7_flip_dots and NCP718BSN500T1G. By type, the board carries 21 resistors, 16 capacitors, 14 transistors, 7 connectors and 3 ICs.

From the project

Driving a flipdot matrix differently. All dots simultaneously.

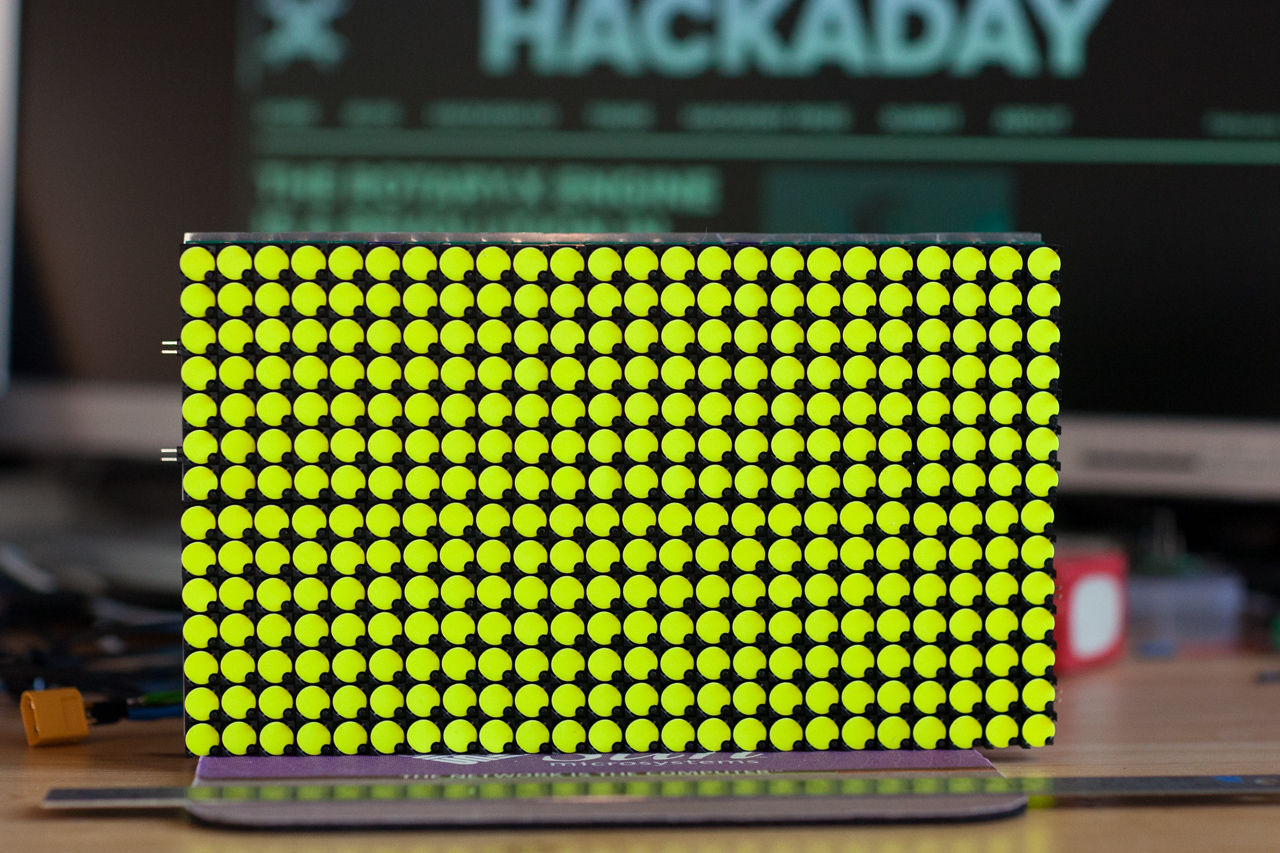

001 dot flipper, from the project README
From the project README

Main components on the 001 dot flipper

7_flip_dotsPIC16F15355-I-MVNCP718BSN500T1G

001 dot flipper bill of materials (BOM)

61 components, 10 distinct parts.

QtyPartRefs
1
7_flip_dots
U1
1
PIC16F15355-I-MV
U2
1
NCP718BSN500T1G
U3
7
DMG6602SVT
Q1, Q3, Q5, Q7, Q9, Q11, Q13
7
BSS138
Q2, Q4, Q6, Q8, Q10, Q12, Q14
6
Conn_01x02_Male
J1, J2, J3, J4, J6, J7
1
Conn_01x05_Male
J5
14
10u
C1, C2, C3, C4, C5, C6, C7, C8 +6
2
1u
C9, C10
21
100K
R1, R2, R3, R4, R5, R6, R7, R8 +13

001 dot flipper design files

The KiCad project lives in the pierre-muth/fast-flipdot repository on GitHub; these links point at the commit this page was built from.

001 dot flipper: common questions

What microcontroller does the 001 dot flipper use?

The 001 dot flipper is built around the PIC16F15355-I-MV, from the PIC family.

How big is the 001 dot flipper PCB?

The 001 dot flipper measures 71 × 10 mm, has 4 copper layers and is 1.6 mm thick.

How many components are on the 001 dot flipper?

61 components, from 10 distinct parts. The full bill of materials is listed on this page.

Where can I download the 001 dot flipper design files?

From the pierre-muth/fast-flipdot repository on GitHub, which has the KiCad layout; the links under Design files point to each one.

Can I use the 001 dot flipper design in my own project?

Yes, under the terms of its GPL-3.0 license, which pierre-muth chose for the repository.

Can I test firmware for the 001 dot flipper without the hardware?

Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug PIC firmware against it before you order a PCB.
