StreamPad
About the StreamPad PCB
StreamPad is an open source PCB design by Pixeleyesd, published on GitHub under the GPL-3.0 license. It is a 2-layer board measuring 82.6 × 99.7 mm, with 33 components from 3 distinct parts.
Other key parts include the MOUDLE-SEEEDUINO-XIAO. By type, the board carries 16 switches, 16 diodes and 1 IC.
It belongs with the keyboards and displays & leds designs in this gallery.
From the project

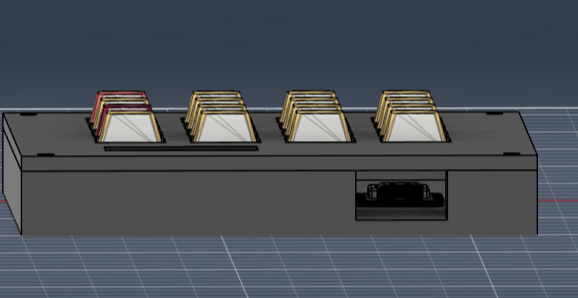

The StreamPad is an open source hackpad made for macros (designed for streaming).
The macropad is assembled by pressing heat-set inserts into the back of the top plate. Then, 16mm screws are inserted through the bottom of the base and the PCB, threading directly into the inserts to hold everything together.
You will need to flash the .uf2 provided in the Firmware folder in this repo to the Seeeduino XIAO. (Refer to help here: https://wiki.seeedstudio.com/XIAO-RP2040-with-CircuitPython/)
Main components on the StreamPad
StreamPad bill of materials (BOM)
33 components, 3 distinct parts — part numbers from the project's BOM.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | MOUDLE-SEEEDUINO-XIAO | XIAO-Generic-Hybrid-14P-2.54-21X17.8MM | U1 |
| 16 | SW_Push | SW_Cherry_MX_1.00u_PCB | SW1, SW2, SW3, SW4, SW5, SW6, SW7, SW8 +8 |
| 16 | 1N4148 | D_DO-35_SOD27_P7.62mm_Horizontal | D1, D2, D3, D4, D5, D6, D7, D8 +8 |
StreamPad design files
The KiCad project lives in the Pixeleyesd/StreamPad repository on GitHub; these links point at the commit this page was built from.
- LayoutPCB/hackpad1.kicad_pcb
- SchematicPCB/hackpad1.kicad_sch
- BOMBOM.csv
StreamPad: common questions
How big is the StreamPad PCB?
The StreamPad measures 82.6 × 99.7 mm, has 2 copper layers and is 1.6 mm thick.
How many components are on the StreamPad?
33 components, from 3 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.
Where can I download the StreamPad design files?
From the Pixeleyesd/StreamPad repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.
Can I use the StreamPad design in my own project?
Yes, under the terms of its GPL-3.0 license, which Pixeleyesd chose for the repository.
