4164-41256-tester PCB layout, top view — open source AVR/Arduino board by popovb

About the 4164-41256-tester PCB

4164-41256-tester is an open source AVR/Arduino PCB design by popovb, published on GitHub. It is a 2-layer board measuring 76.2 × 43.7 mm, with 30 components from 13 distinct parts.

Its main chip is the Arduino Pro Mini, from the AVR/Arduino family. Other key parts include the AMS1117-5.0. By type, the board carries 15 resistors, 6 connectors, 4 capacitors, 3 switches, 1 IC and 1 module.

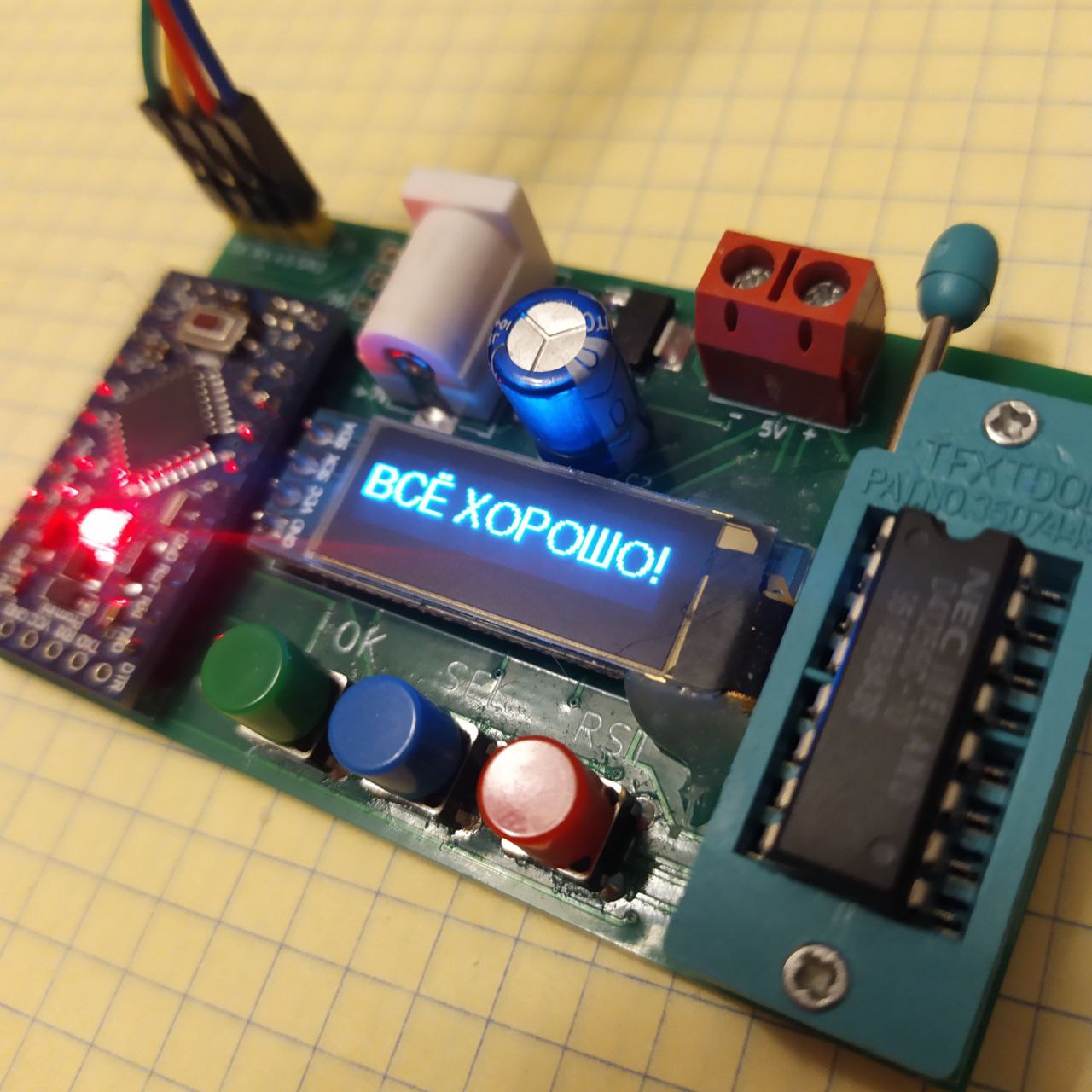

4164-41256-tester, from the project README
From the project README

Main components on the 4164-41256-tester

AMS1117-5.0Arduino Pro Mini

4164-41256-tester bill of materials (BOM)

30 components, 13 distinct parts.

QtyPartRefs
1
AMS1117-5.0
U1
1
Arduino Pro Mini
A1
1
Jack DC
J1
1
PCB Terminal Block
J2
1
ZIF-16
J3
1
Display
J4
1
Serial
J5
1
ICSP
J6
3
SW Push
SW1, SW2, SW3
3
100 nF
C1, C3, C4
1
1000 uF
C2
13
47
R1, R2, R3, R4, R5, R6, R7, R8 +5
2
10K
R14, R15

4164-41256-tester design files

The KiCad project lives in the popovb/4164-41256-tester repository on GitHub; these links point at the commit this page was built from.

4164-41256-tester: common questions

What microcontroller does the 4164-41256-tester use?

The 4164-41256-tester is built around the Arduino Pro Mini, from the AVR/Arduino family.

How big is the 4164-41256-tester PCB?

The 4164-41256-tester measures 76.2 × 43.7 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the 4164-41256-tester?

30 components, from 13 distinct parts. The full bill of materials is listed on this page.

Where can I download the 4164-41256-tester design files?

From the popovb/4164-41256-tester repository on GitHub, which has the KiCad layout and the schematic; the links under Design files point to each one.

Can I use the 4164-41256-tester design in my own project?

The repository has no license, so all rights stay with popovb. Use it as a reference, and ask the author before reusing the design.

Can I test firmware for the 4164-41256-tester without the hardware?

Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug AVR/Arduino firmware against it before you order a PCB.
