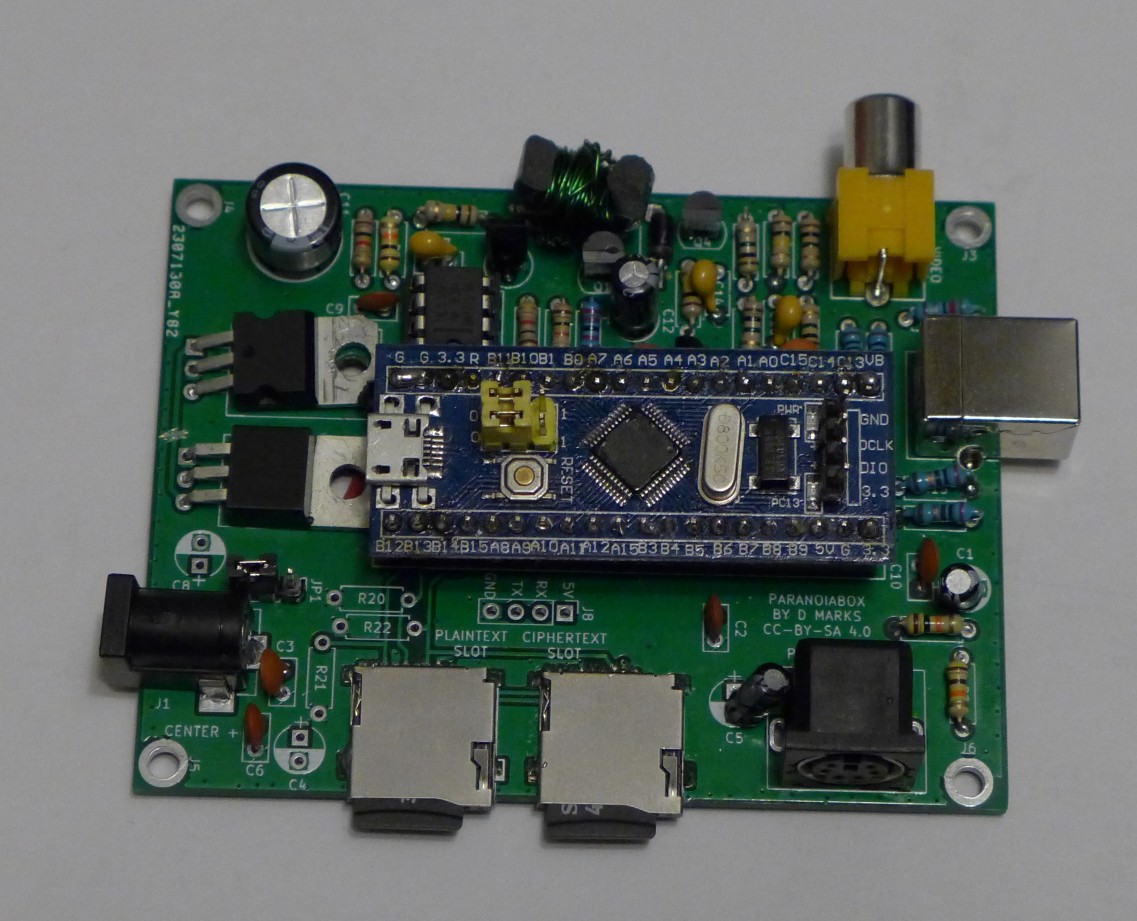

ParanoiaBox
About the ParanoiaBox PCB
ParanoiaBox is an open source PCB design by profdc9, published on GitHub. It is a 2-layer board measuring 68 × 89 mm, with 60 components from 32 distinct parts.
Other key parts include the MicroSD_SPI_CD, NE555, LM7805CT and LM1117-3.3. By type, the board carries 22 resistors, 16 capacitors, 9 connectors, 5 ICs, 4 transistors and 1 jumper.
From the project
A standalone elliptic curve/AES file encryption and decryption device
The ParanoiaBox is a standalone open hardware/software encryption device based on the STM32F103CBT6 processor. On this device, messages may be composed, encrypted, decrypted, and viewed. The device is an experiment in encryption minimalism, presenting a minimal attack surface by using a small microcontroller rather than a full personal computer with a complex operating system, while providing the functionality needed to transact encrypted messages between humans through insecure networks. The device is connected to a NTSC television and a PS/2 keyboard for user input and control. There are…
Main components on the ParanoiaBox
ParanoiaBox bill of materials (BOM)
60 components, 32 distinct parts.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 2 | MicroSD_SPI_CD | GCT-MEM2055-00-190-01-A | U1, U2 |
| 1 | NE555 | DIP-8_W7.62mm_Socket | U3 |
| 1 | LM7805CT | TO-220-3_Horizontal | U4 |
| 1 | LM1117-3.3 | TO-220-3_Horizontal | U5 |
| 1 | 2N2222 | TO-92_Inline_Wide | Q1 |
| 3 | 2N3904 | TO-92_Inline_Wide | Q2, Q3, Q4 |
| 1 | Barrel_Jack | BARREL_JACK | J1 |
| 1 | RCAJack | RCAConnectorCommon | J2 |
| 4 | Conn_01x01 | 1pin | J3, J4, J5, J6 |
| 1 | USB_B | USB_B | J7 |
| 1 | Conn_01x04 | Pin_Header_Straight_1x04_Pitch2.54mm | J8 |
| 1 | Mini-DIN_6pins_ver4 | Connector_Mini-DIN_Female_6Pin_2rows | P1 |
| 1 | Jumper_NC_Dual | Pin_Header_Straight_1x03_Pitch2.54mm | JP1 |
| 1 | BLUEPILL | BLUEPILL | UB1 |
| 1 | UF4007 | D_DO-41_SOD81_P7.62mm_Horizontal | D1 |
| 1 | 100 uH | L_Toroid_Horizontal_D5.1mm_P9.00mm_Diameter6-5mm_Amidon-T20 | L1 |
| 5 | 10 uF | CP_Radial_D5.0mm_P2.50mm | C1, C4, C5, C8, C12 |
| 7 | 100 nF | C_Disc_D5.0mm_W2.5mm_P2.50mm | C2, C3, C6, C9, C10, C13, C15 |
| 1 | 100 pF | C_Disc_D5.0mm_W2.5mm_P2.50mm | C7 |
| 1 | 100 uF | CP_Radial_D10.0mm_P5.00mm | C11 |
Show 12 more
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 2 | 1 uF | C_Disc_D5.0mm_W2.5mm_P5.00mm | C14, C18 |
| 2 | 4k7 | R_Axial_DIN0207_L6.3mm_D2.5mm_P7.62mm_Horizontal | R1, R2 |
| 1 | 10k | R_Axial_DIN0207_L6.3mm_D2.5mm_P7.62mm_Horizontal | R3 |
| 3 | 1k | R_Axial_DIN0207_L6.3mm_D2.5mm_P7.62mm_Horizontal | R4, R5, R14 |
| 1 | 560R | R_Axial_DIN0207_L6.3mm_D2.5mm_P7.62mm_Horizontal | R6 |
| 1 | 240R | R_Axial_DIN0207_L6.3mm_D2.5mm_P7.62mm_Horizontal | R7 |
| 3 | 100k | R_Axial_DIN0207_L6.3mm_D2.5mm_P7.62mm_Horizontal | R8, R12, R19 |
| 1 | 82R | R_Axial_DIN0207_L6.3mm_D2.5mm_P7.62mm_Horizontal | R9 |
| 4 | 1M | R_Axial_DIN0207_L6.3mm_D2.5mm_P7.62mm_Horizontal | R10, R11, R17, R18 |
| 1 | 22k | R_Axial_DIN0207_L6.3mm_D2.5mm_P7.62mm_Horizontal | R13 |
| 2 | 22R | R_Axial_DIN0207_L6.3mm_D2.5mm_P7.62mm_Horizontal | R15, R16 |
| 3 | 220R | R_Axial_DIN0207_L6.3mm_D2.5mm_P7.62mm_Horizontal | R20, R21, R22 |
ParanoiaBox design files
The KiCad project lives in the profdc9/ParanoiaBox repository on GitHub; these links point at the commit this page was built from.
ParanoiaBox: common questions
How big is the ParanoiaBox PCB?
The ParanoiaBox measures 68 × 89 mm, has 2 copper layers and is 1.6 mm thick.
How many components are on the ParanoiaBox?
60 components, from 32 distinct parts. The full bill of materials is listed on this page.
Where can I download the ParanoiaBox design files?
From the profdc9/ParanoiaBox repository on GitHub, which has the KiCad layout; the links under Design files point to each one.
Can I use the ParanoiaBox design in my own project?
The repository has no license, so all rights stay with profdc9. Use it as a reference, and ask the author before reusing the design.
