Atreus62 PCB layout, top view — open source AVR/Arduino board by profet23

About the Atreus62 PCB

Atreus62 is an open source AVR/Arduino PCB design by profet23, published on GitHub under the GPL-3.0 license. It is a 2-layer board measuring 270.2 × 112.9 mm, with 126 components from 4 distinct parts.

Its main chip is the ARDUINO_PRO_MICRO, from the AVR/Arduino family. By type, the board carries 63 switches, 62 diodes and 1 IC.

It belongs with the keyboards designs in this gallery.

From the project

Design files for the atreus62 keyboard

Atreus62 components can be purchased from the online store.

This keyboad is inspired by the original atreus keyboard.

This version utilizes a Pro Micro for its controller and has a 62 key layout.

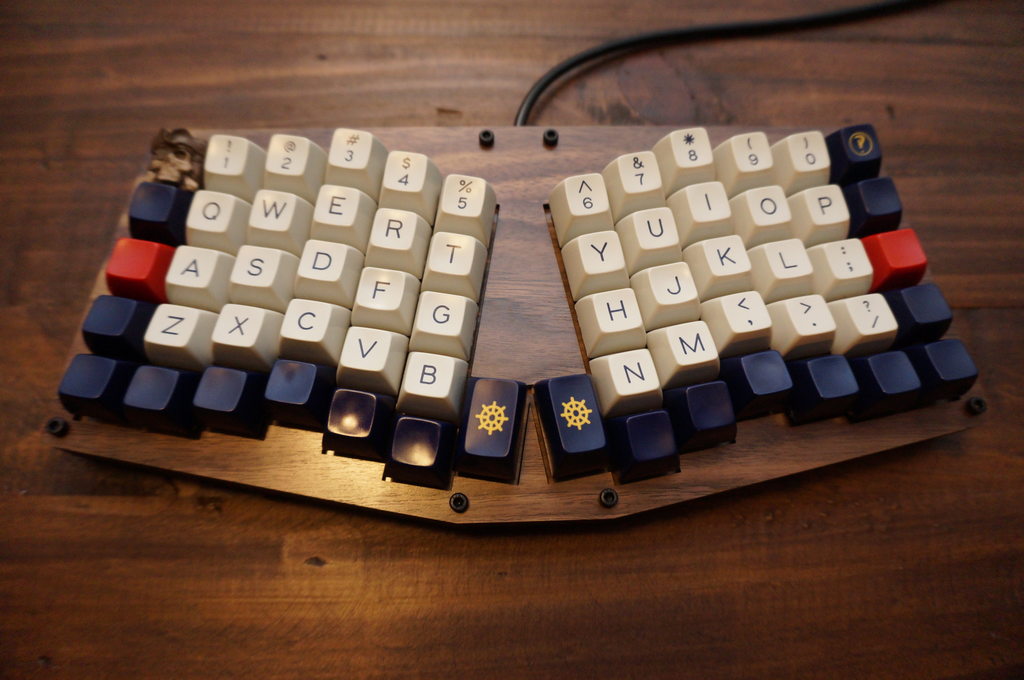

Atreus62, from the project README
From the project README

Main components on the Atreus62

ARDUINO_PRO_MICRO

Atreus62 bill of materials (BOM)

126 components, 4 distinct parts.

QtyPartRefs
1
ARDUINO_PRO_MICRO
U1
62
SWITCH_PUSH
SW1, SW2, SW3, SW4, SW5, SW6, SW7, SW8 +54
1
SWITCH_PUSH
SW-RST1
62
DIODE
D1, D2, D3, D4, D5, D6, D7, D8 +54

Atreus62 design files

The KiCad project lives in the profet23/atreus62 repository on GitHub; these links point at the commit this page was built from.

Atreus62: common questions

What microcontroller does the Atreus62 use?

The Atreus62 is built around the ARDUINO_PRO_MICRO, from the AVR/Arduino family.

How big is the Atreus62 PCB?

The Atreus62 measures 270.2 × 112.9 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the Atreus62?

126 components, from 4 distinct parts. The full bill of materials is listed on this page.

Where can I download the Atreus62 design files?

From the profet23/atreus62 repository on GitHub, which has the KiCad layout; the links under Design files point to each one.

Can I use the Atreus62 design in my own project?

Yes, under the terms of its GPL-3.0 license, which profet23 chose for the repository.

Can I test firmware for the Atreus62 without the hardware?

Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug AVR/Arduino firmware against it before you order a PCB.
