About the Trellis core PCB
Trellis core is an open source PCB design by protolux-electronics, published on GitHub under the CERN-OHL-P-2.0 license. It is a 4-layer board measuring 50 × 50 mm, with 84 components from 25 distinct parts.
Other key parts include the TLV62569PDDCR, T113M4020DC0, USBLC6-2SC6, ZDSD04GLGEAG and SN74AHC1G08DCKR. By type, the board carries 44 capacitors, 25 resistors, 6 ICs, 2 crystals, 2 switches and 2 inductors.
From the project
A barebones KiCad project for Allwinner T113-based designs
This repo serves as a minimum hardware design for the Allwinner T113-S4 (part number sometimes referred to as T113M4020). This is pin-compatible with the T113-S3, but with 256MB of RAM in-package. Although generally software-agnostic, this repo is designed to be used with Nerves and nervessystemtrellis.
Want to view the schematic and layout in your browser? Paste this repo's URL into KiCanvas by @theacodes.

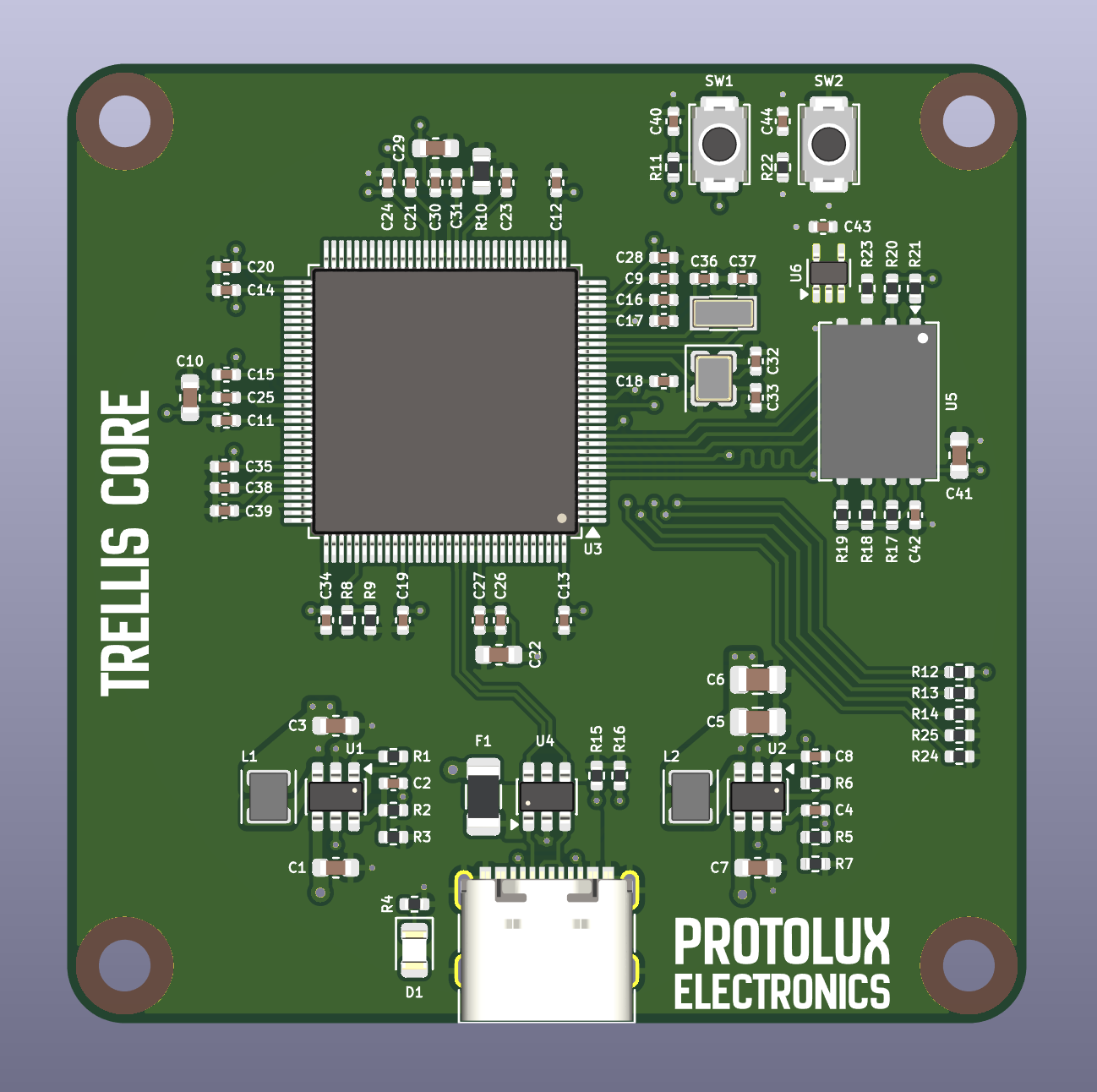

Main components on the Trellis core
Trellis core bill of materials (BOM)
84 components, 25 distinct parts.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 2 | TLV62569PDDCR Texas Insturments | SOT-23-6 | U1, U2 |
| 1 | T113M4020DC0 T113-S3 Allwinner | T113-S3 | U3 |
| 1 | USBLC6-2SC6 TECH PUBLIC | SOT-23-6 | U4 |
| 1 | ZDSD04GLGEAG ZDSD08GLGEAG Zetta | LGA-8_8x6mm_P1.27mm | U5 |
| 1 | SN74AHC1G08DCKR SN74AHC1G08 Texas Insturments | Texas_R-PDSO-G5_DCK-5 | U6 |
| 1 | CM4024M00008001 24MHz huaxindianzi | Crystal_SMD_2520-4Pin_2.5x2.0mm | Y1 |
| 1 | Q13FC13500004 32.768kHz EPSON | Crystal_SMD_3215-2Pin_3.2x1.5mm | Y2 |
| 1 | HX TYPE-C 16P L8.35 USB_C_Receptacle_USB2.0_14P hanxia | USB_C_Receptacle_G-Switch_GT-USB-7010ASV | J1 |
| 1 | JK-nSMD100-16 1A Jinrui Electronic Materials Co. | Fuse_1206_3216Metric | F1 |
| 2 | TSA010A2026B SW_Push BZCN | SW_Push_SPST_NO_Alps_SKRK | SW1, SW2 |
| 1 | NCD0805R1 RED | LED_0805_2012Metric | D1 |
| 2 | XRIM252012S2R2MBCA 2u2 XR | L_Wuerth_MAPI-2510 | L1, L2 |
| 7 | CL10A106MA8NRNC 10u | C_0603_1608Metric | C1, C3, C7, C10, C22, C29, C41 |
| 4 | CL05C100JB5NNNC 10p | C_0402_1005Metric | C2, C4, C32, C33 |
| 2 | CL21A226MAQNNNE 22u | C_0805_2012Metric | C5, C6 |
| 25 | CL05B104KB54PNC 100n | C_0402_1005Metric | C8, C11, C12, C13, C14, C15, C17, C18 +17 |
| 4 | CL05A225MQ5NSNC 2u2 | C_0402_1005Metric | C9, C16, C28, C40 |
| 2 | 0402CG180J500NT 18p | C_0402_1005Metric | C36, C37 |
| 5 | 0402WGF1003TCE 100k | R_0402_1005Metric | R1, R3, R6, R7, R11 |
| 1 | 0402WGF4533TCE 453k | R_0402_1005Metric | R2 |
Show 5 more
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 9 | 0402WGF5101TCE 5k1 | R_0402_1005Metric | R4, R12, R13, R14, R15, R16, R22, R24 +1 |
| 6 | 0402WGF5102TCE 51k | R_0402_1005Metric | R5, R17, R18, R19, R20, R21 |
| 2 | TODO | R_0402_1005Metric | R8, R9 |
| 1 | 0603WAF2400T5E 240R | R_0603_1608Metric | R10 |
| 1 | 0402WGF220JTCE 22R | R_0402_1005Metric | R23 |
