PlayStation-1-Reset-Mod

pyroesp·PlayStation-1-Reset-Mod·schematic and pcb/PlayStation 1 Reset Mod.kicad_pcb

PlayStation-1-Reset-Mod PCB layout, top view — open source PIC board by pyroesp
Simulate this board

About the PlayStation-1-Reset-Mod PCB

PlayStation-1-Reset-Mod is an open source PIC PCB design by pyroesp, published on GitHub under the CC-BY-SA-4.0 license. It is a 2-layer board measuring 14.5 × 12 mm, with 4 components from 4 distinct parts.

Its main chip is the PIC16F18325-ISL, from the PIC family. By type, the board carries 3 capacitors and 1 IC.

From the project

PlayStation 1 Controller Reset mod

PlayStation 1 controller combination reset mod. This mod when installed, allows you to reset your PlayStation through a button combination on the controller port 1.

Disclaimer ---------- Anyone contributing to this mod is in no way responsible to whatever happens to your PlayStation 1 after installing or removing it. You do this at your own risk. If you don't know what you're doing, go to someone that does.

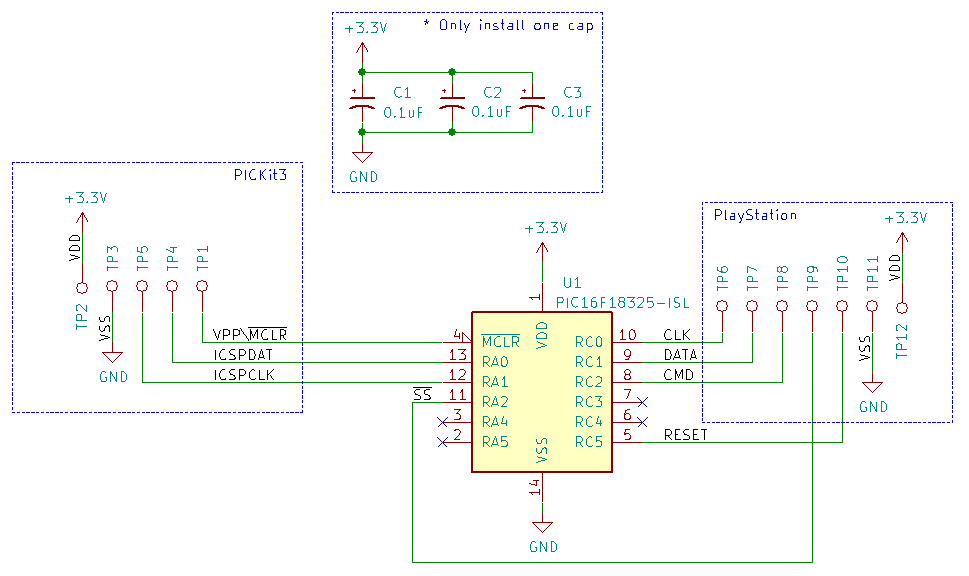

PlayStation-1-Reset-Mod, from the project README
From the project README

Main components on the PlayStation-1-Reset-Mod

PIC16F18325-ISL

PlayStation-1-Reset-Mod bill of materials (BOM)

4 components, 4 distinct parts.

QtyPartRefs
1
PIC16F18325-ISL
U1
1
0.1uF
C1
1
0.1uF
C2
1
0.1uF
C3

PlayStation-1-Reset-Mod design files

The KiCad project lives in the pyroesp/PlayStation-1-Reset-Mod repository on GitHub; these links point at the commit this page was built from.

PlayStation-1-Reset-Mod: common questions

What microcontroller does the PlayStation-1-Reset-Mod use?

The PlayStation-1-Reset-Mod is built around the PIC16F18325-ISL, from the PIC family.

How big is the PlayStation-1-Reset-Mod PCB?

The PlayStation-1-Reset-Mod measures 14.5 × 12 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the PlayStation-1-Reset-Mod?

4 components, from 4 distinct parts. The full bill of materials is listed on this page.

Where can I download the PlayStation-1-Reset-Mod design files?

From the pyroesp/PlayStation-1-Reset-Mod repository on GitHub, which has the KiCad layout; the links under Design files point to each one.

Can I use the PlayStation-1-Reset-Mod design in my own project?

Yes, under the terms of its CC-BY-SA-4.0 license, which pyroesp chose for the repository.

Can I test firmware for the PlayStation-1-Reset-Mod without the hardware?

Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug PIC firmware against it before you order a PCB.
