Rc car remote

qb-creates·rc-car·eda/rc-car-remote-kicad/rc-car-remote.kicad_pcb

Rc car remote PCB layout, top view — open source AVR/Arduino board by qb-creates

About the Rc car remote PCB

Rc car remote is an open source AVR/Arduino PCB design by qb-creates, published on GitHub under the MIT license. It is a 2-layer board measuring 120 × 48 mm, with 31 components from 22 distinct parts.

Its main chip is the ATmega164A-A, from the AVR/Arduino family. Other key parts include the TPS3840, MCP73831-2-OT and MIC5225-3.3YM5. By type, the board carries 9 capacitors, 8 resistors, 5 connectors, 4 ICs, 2 diodes and 1 transistor.

It belongs with the iot & wireless, robotics & motion and rf & radio designs in this gallery.

From the project

Custom DIY RC car featuring in-house PCB design, 3D-printed components, and dual ATmega164A firmware for wireless drive and steering control.

- Project Video (YouTube): https://youtu.be/qdBbDeDglmY - Bidirectional Motor Driver (H-Bridge): https://en.wikipedia.org/wiki/H-bridge - Steering Servo PWM Control: https://en.wikipedia.org/wiki/Servo_control - nRF24L01 Wireless Transceiver Module: https://www.instructables.com/NRF24L01-Tutorial-Arduino-Wireless-Communication/

The RF stack is configured in configureRFRadio() with:

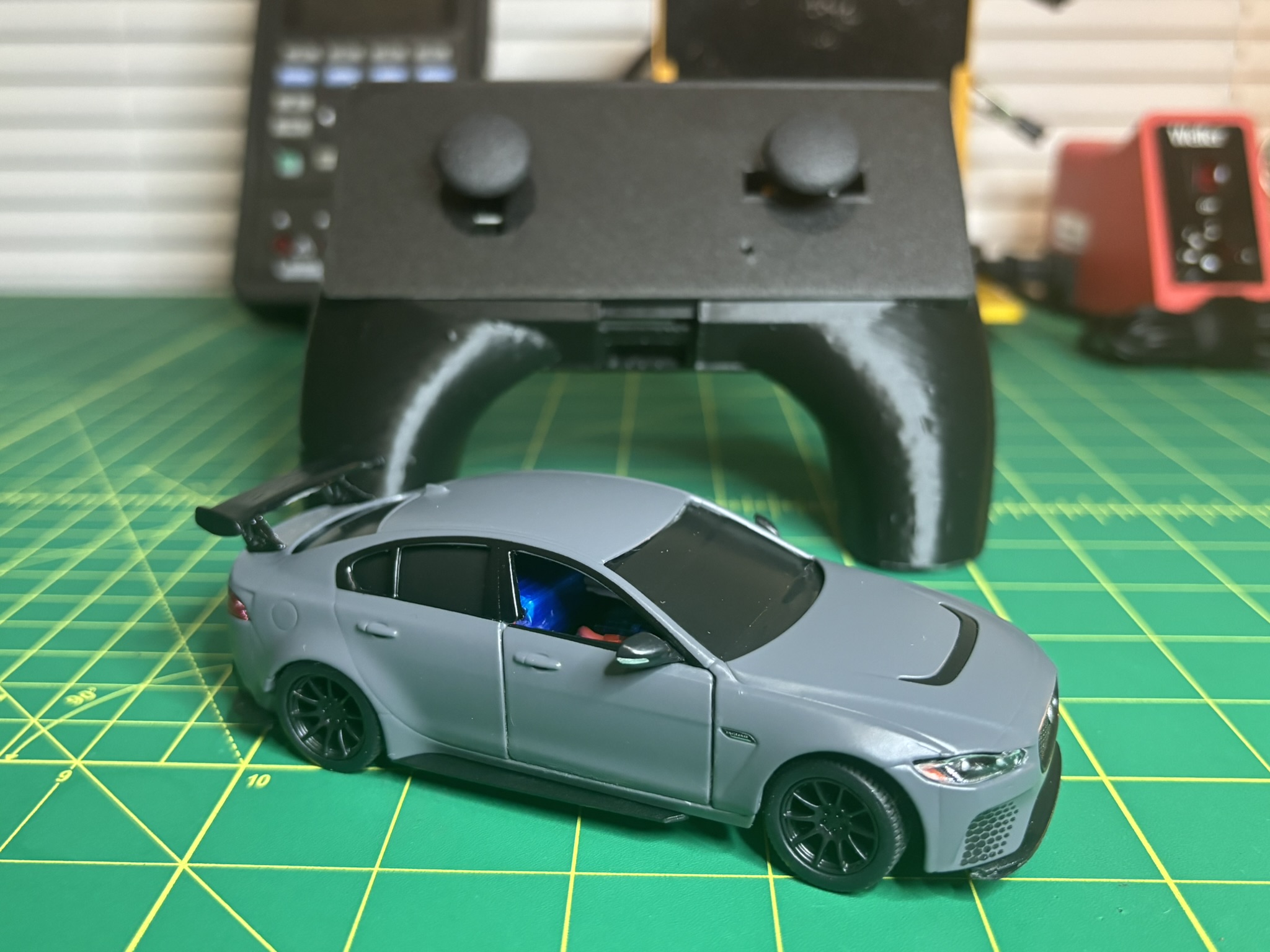

Rc car remote, from the project README
From the project README

Main components on the Rc car remote

TPS3840MCP73831-2-OTMIC5225-3.3YM5ATmega164A-A

Rc car remote bill of materials (BOM)

31 components, 22 distinct parts.

QtyPartRefs
1
TPS3840
U1
1
MCP73831-2-OT
U2
1
MIC5225-3.3YM5
U3
1
ATmega164A-A
U4
1
IRLML6244
Q1
1
USB_C_Receptacle_USB2.0_14P
J1
1
AVR-ISP-10
J2
1
nRF24L01+ Headers
J3
2
B09Y2R1GLV
j4, j5
1
4.2V Lipo
BT1
1
SW_SPST
SW1
2
LED
D1, D2
2
4.7uF
C1, C2
2
1uF
C3, C4
1
2.2uF
C5
4
.1uF
C6, C7, C8, C9
2
5.1k
R1, R2
1
150k
R3
1
1.5k
R4
2
10k
R5, R6
Show 2 more
QtyPartRefs
1
330
R7
1
1.3k
R8

Rc car remote design files

The KiCad project lives in the qb-creates/rc-car repository on GitHub; these links point at the commit this page was built from.

Rc car remote: common questions

What microcontroller does the Rc car remote use?

The Rc car remote is built around the ATmega164A-A, from the AVR/Arduino family.

How big is the Rc car remote PCB?

The Rc car remote measures 120 × 48 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the Rc car remote?

31 components, from 22 distinct parts. The full bill of materials is listed on this page.

Where can I download the Rc car remote design files?

From the qb-creates/rc-car repository on GitHub, which has the KiCad layout and the schematic; the links under Design files point to each one.

Can I use the Rc car remote design in my own project?

Yes, under the terms of its MIT license, which qb-creates chose for the repository.
