One-Inch-Photodetector

Quantum-Electronic-Devices·One-Inch-Photodetector

One-Inch-Photodetector PCB layout, top view — open source board by Quantum-Electronic-Devices

About the One-Inch-Photodetector PCB

One-Inch-Photodetector is an open source PCB design by Quantum-Electronic-Devices, published on GitHub under the CERN-OHL-W-2.0 license. It is a 4-layer board measuring 25.4 × 25.4 mm, with 21 components from 16 distinct parts.

Other key parts include the ADA4898-2YRDZ and LT3032IDE-12#PBF. By type, the board carries 8 capacitors, 5 resistors, 2 ICs, 2 connectors, 2 jumpers and 1 diode.

It belongs with the audio designs in this gallery.

From the project

A Photodetector on a 1″ diameter PCB. Fits into Thorlabs SM1 threaded mounts.

- Schematics as a PDF - Gerber files - Pick & place position files - Bill of materials as a CSV file, as well as an interactive HTML version

The latest revision of those files can be found here.

- MAJOR versions in this context mean a breaking change to the external interface of the hardware like different connectors or functions. - MINOR versions contain changes to the hardware that only affect the inner workings of the circuit, but otherwise the performance is unaffected. - PATCH versions do not affect the schematics or invalidate older bill of materials. These changes may include updated…

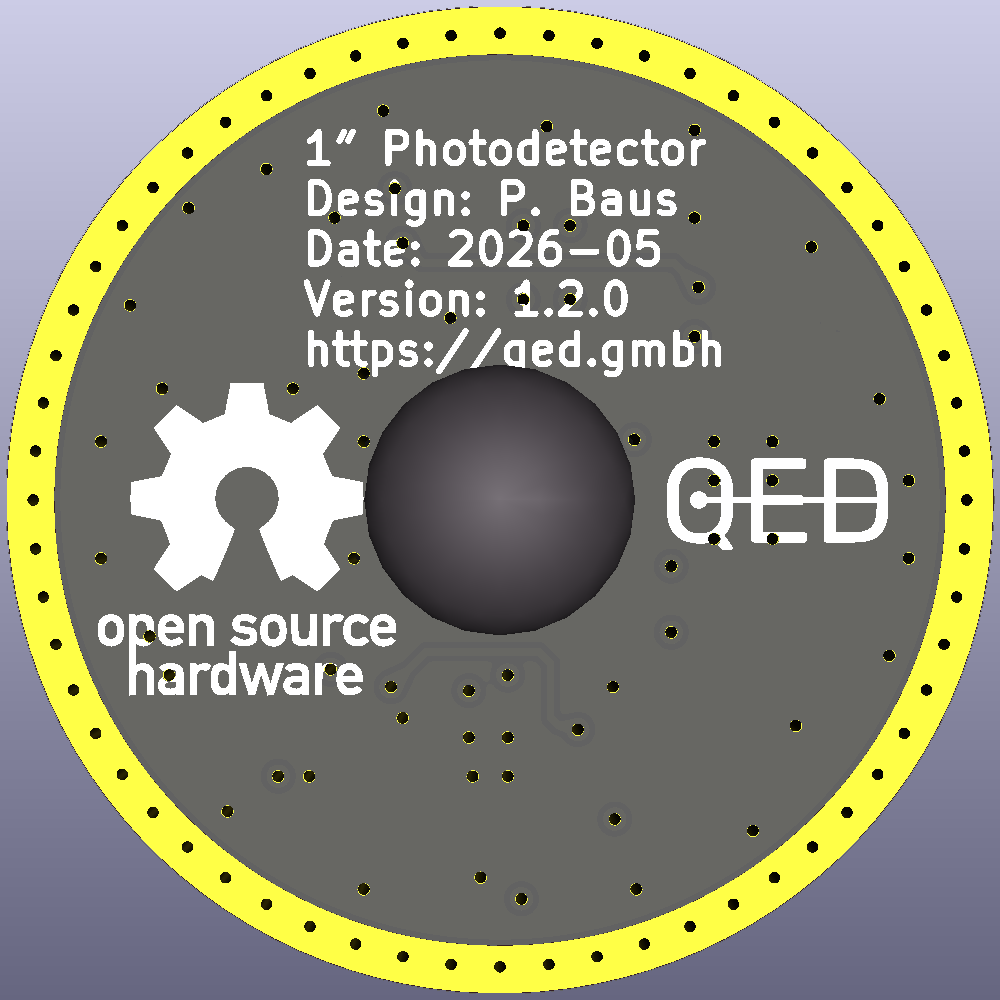

One-Inch-Photodetector, from the project README
From the project README

Main components on the One-Inch-Photodetector

ADA4898-2YRDZLT3032IDE-12#PBF

One-Inch-Photodetector bill of materials (BOM)

21 components, 16 distinct parts.

QtyPartRefs
1
ADA4898-2YRDZ
ADA4898-2
U1
1
LT3032IDE-12#PBF
LT3032IDE-12
U2
1
53398-0371
Conn_01x03
J1
1
CONSMP001-SMD-G-T
Conn_Coaxial
J2
2
Jumper_2_Open
JP1, JP2
1
SFH 203 FA
SFH203
D1
1
MLF2012C101KTD25
100u
L1
1
AC0603BRNPO9BN2R0
2p
C1
1
CGA3E1X7R1V105K080AC
1u
C2
2
GCM1885C2A101JA16D
100p
C3, C4
4
CGA4J1X7S1E106K125AC
10u
C5, C6, C7, C8
1
HRG3216P-49R9-D-T1
49.9R
R1
1
RG1608P-103-D-T5
10k
R2
1
RG1608P-122-D-T5
1.2k
R3
1
RG1608P-301-B-T5
300R
R4
1
RG1608Q-200-D-T5
20R
R5

One-Inch-Photodetector design files

The KiCad project lives in the Quantum-Electronic-Devices/One-Inch-Photodetector repository on GitHub; these links point at the commit this page was built from.

One-Inch-Photodetector: common questions

How big is the One-Inch-Photodetector PCB?

The One-Inch-Photodetector measures 25.4 × 25.4 mm, has 4 copper layers and is 1.596 mm thick.

How many components are on the One-Inch-Photodetector?

21 components, from 16 distinct parts. The full bill of materials is listed on this page.

Where can I download the One-Inch-Photodetector design files?

From the Quantum-Electronic-Devices/One-Inch-Photodetector repository on GitHub, which has the KiCad layout and the schematic; the links under Design files point to each one.

Can I use the One-Inch-Photodetector design in my own project?

Yes, under the terms of its CERN-OHL-W-2.0 license, which Quantum-Electronic-Devices chose for the repository.
