ESP-Marauder PCB layout, top view — open source board by R09Aditya
Simulate this board

About the ESP-Marauder PCB

ESP-Marauder is an open source PCB design by R09Aditya, published on GitHub. It is a 2-layer board measuring 72 × 154.5 mm, with 10 components from 4 distinct parts.

Other key parts include the NRF24L01_Breakout and Adafruit_Feather_HUZZAH32_ESP32. By type, the board carries 5 switches, 3 ICs, 1 module and 1 connector.

It belongs with the iot & wireless, keyboards and power & battery designs in this gallery.

From the project

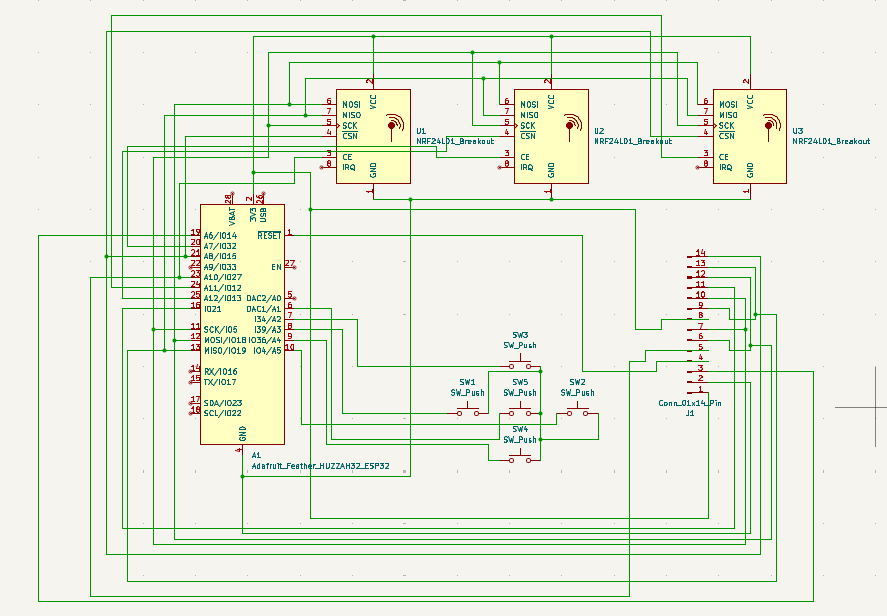

ESP Marauder is a cybersecurity tool used to jam, analyze and do alot of things on wifi or bluetooth.

ESP-Marauder, from the project README
From the project README

Main components on the ESP-Marauder

NRF24L01_BreakoutAdafruit_Feather_HUZZAH32_ESP32

ESP-Marauder bill of materials (BOM)

10 components, 4 distinct parts — part numbers from the project's BOM.

QtyPartRefs
3
NRF24L01_Breakout
U1, U2, U3
1
Adafruit_Feather_HUZZAH32_ESP32
A1
1
Conn_01x14_Pin
J1
5
SW_Push
SW1, SW2, SW3, SW4, SW5

ESP-Marauder design files

The KiCad project lives in the R09Aditya/ESP-Marauder repository on GitHub; these links point at the commit this page was built from.

ESP-Marauder: common questions

How big is the ESP-Marauder PCB?

The ESP-Marauder measures 72 × 154.5 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the ESP-Marauder?

10 components, from 4 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.

Where can I download the ESP-Marauder design files?

From the R09Aditya/ESP-Marauder repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.

Can I use the ESP-Marauder design in my own project?

The repository has no license, so all rights stay with R09Aditya. Use it as a reference, and ask the author before reusing the design.
