Ublox NINA-W102 minimal breakout

rac2030·breakout-boards·ublox_NINA-W102/NINA-W102_minimal_breakout.kicad_pcb

Ublox NINA-W102 minimal breakout layout, top view — open source board by rac2030

About the Ublox NINA-W102 minimal breakout

Ublox NINA-W102 minimal breakout is an open source PCB design by rac2030, published on GitHub under the MIT license. It is a 2-layer board measuring 47 × 20.7 mm, with 13 components from 10 distinct parts.

Other key parts include the NINA-W102. By type, the board carries 4 capacitors, 3 resistors, 2 switches, 1 IC, 1 jumper and 1 diode.

It belongs with the dev boards & breakouts designs in this gallery.

From the project

Various breakoutboards for electronic components I play with

Hackaday Project entry: https://hackaday.io/project/151749-ublox-nina-w102-minimal-breakout

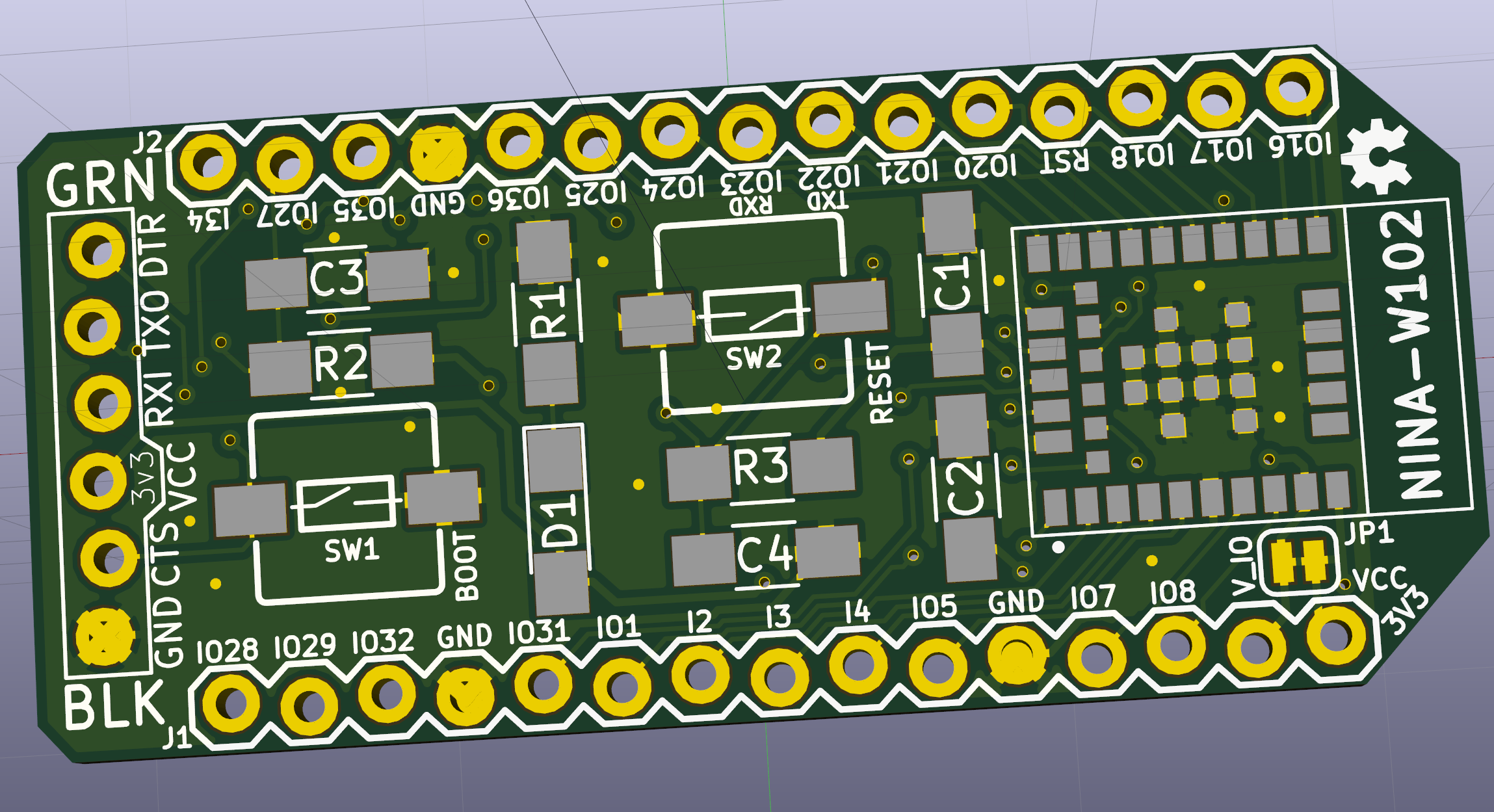

Ublox NINA-W102 minimal breakout, from the project README
From the project README

Main components on the Ublox NINA-W102 minimal breakout

NINA-W102

Ublox NINA-W102 minimal breakout bill of materials (BOM)

13 components, 10 distinct parts.

QtyPartRefs
1
NINA-W102
U1
1
JUMPER-SMT_2_NC
JP1
1
G***
MakeZurich-15x11-silk
1
BOOT
SW1
1
RESET
SW2
1
PWR RED
D1
2
100nF
C1, C2
2
1uF
C3, C4
1
1k
R1
2
10k
R2, R3

Ublox NINA-W102 minimal breakout design files

The KiCad project lives in the rac2030/breakout-boards repository on GitHub; these links point at the commit this page was built from.

Ublox NINA-W102 minimal breakout: common questions

How big is the Ublox NINA-W102 minimal breakout?

The Ublox NINA-W102 minimal breakout measures 47 × 20.7 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the Ublox NINA-W102 minimal breakout?

13 components, from 10 distinct parts. The full bill of materials is listed on this page.

Where can I download the Ublox NINA-W102 minimal breakout design files?

From the rac2030/breakout-boards repository on GitHub, which has the KiCad layout; the links under Design files point to each one.

Can I use the Ublox NINA-W102 minimal breakout design in my own project?

Yes, under the terms of its MIT license, which rac2030 chose for the repository.
