AS5600
About the AS5600 PCB
AS5600 is an open source PCB design by racerxdl, published on GitHub under the MIT license. It is a 2-layer board measuring 22.9 × 22.9 mm, with 9 components from 8 distinct parts.
Other key parts include the AS5600. By type, the board carries 4 resistors, 2 connectors, 2 capacitors and 1 IC.
From the project
Kicad Board Collection for use in 3D Projects

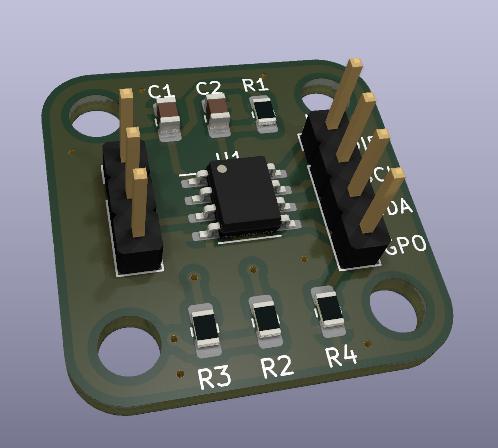

In the real board the 4 pin header is a bit more to the top of the board than in the current model, so at least a 1mm tolerance should be considered.
https://s.click.aliexpress.com/e/_APSxKB
Main components on the AS5600
AS5600 bill of materials (BOM)
9 components, 8 distinct parts.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | AS5600 | SOIC-8_3.9x4.9mm_P1.27mm | U1 |
| 1 | Conn_01x04_Male | PinHeader_1x04_P2.54mm_Vertical | J1 |
| 1 | Conn_01x03_Male | PinHeader_1x03_P2.54mm_Vertical | J2 |
| 1 | 100nF | C_0805_2012Metric_Pad1.18x1.45mm_HandSolder | C1 |
| 1 | 6,7uF | C_0805_2012Metric_Pad1.18x1.45mm_HandSolder | C2 |
| 1 | 0 | R_0805_2012Metric_Pad1.20x1.40mm_HandSolder | R1 |
| 2 | 10k | R_0805_2012Metric_Pad1.20x1.40mm_HandSolder | R2, R3 |
| 1 | 1k | R_0805_2012Metric_Pad1.20x1.40mm_HandSolder | R4 |
AS5600 design files
The KiCad project lives in the racerxdl/kicad-board-collection repository on GitHub; these links point at the commit this page was built from.
- LayoutAS5600/AS5600.kicad_pcb
- SchematicAS5600/AS5600.kicad_sch
AS5600: common questions
How big is the AS5600 PCB?
The AS5600 measures 22.9 × 22.9 mm, has 2 copper layers and is 1.6 mm thick.
How many components are on the AS5600?
9 components, from 8 distinct parts. The full bill of materials is listed on this page.
Where can I download the AS5600 design files?
From the racerxdl/kicad-board-collection repository on GitHub, which has the KiCad layout and the schematic; the links under Design files point to each one.
Can I use the AS5600 design in my own project?
Yes, under the terms of its MIT license, which racerxdl chose for the repository.
