MPU6050
About the MPU6050 PCB

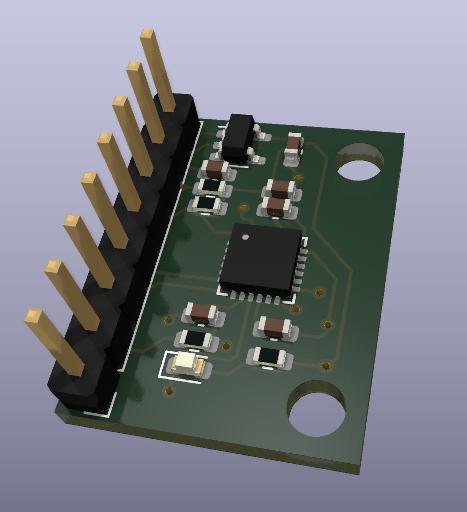

MPU6050 is an open source PCB design by racerxdl, published on GitHub under the MIT license. It is a 2-layer board measuring 16 × 21 mm, with 14 components from 6 distinct parts.
Other key parts include the MPU-6050 and TC2185-3.3VxCTTR. By type, the board carries 6 capacitors, 4 resistors, 2 ICs, 1 connector and 1 diode.
From the project
Kicad Board Collection for use in 3D Projects
https://s.click.aliexpress.com/e/_Abl2sP
Main components on the MPU6050
MPU6050 bill of materials (BOM)
14 components, 6 distinct parts.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | MPU-6050 | InvenSense_QFN-24_4x4mm_P0.5mm | U1 |
| 1 | TC2185-3.3VxCTTR | SOT-23-5 | U2 |
| 1 | Conn_01x08_MountingPin | PinHeader_1x08_P2.54mm_Vertical | J1 |
| 1 | LED | LED_0603_1608Metric | D1 |
| 6 | C | C_0603_1608Metric | C1, C2, C3, C4, C5, C6 |
| 4 | R | R_0603_1608Metric | R1, R2, R3, R4 |
MPU6050 design files
The KiCad project lives in the racerxdl/kicad-board-collection repository on GitHub; these links point at the commit this page was built from.
- LayoutMPU6050/MPU6050.kicad_pcb
- SchematicMPU6050/MPU6050.kicad_sch
MPU6050: common questions
How big is the MPU6050 PCB?
The MPU6050 measures 16 × 21 mm, has 2 copper layers and is 1.6 mm thick.
How many components are on the MPU6050?
14 components, from 6 distinct parts. The full bill of materials is listed on this page.
Where can I download the MPU6050 design files?
From the racerxdl/kicad-board-collection repository on GitHub, which has the KiCad layout and the schematic; the links under Design files point to each one.
Can I use the MPU6050 design in my own project?
Yes, under the terms of its MIT license, which racerxdl chose for the repository.
