Traditional
About the Traditional PCB
Traditional is an open source PCB design by Ravinx001, published on GitHub under the MIT license. It is a 2-layer board measuring 76 × 99.5 mm, with 20 components from 14 distinct parts.
Other key parts include the 74LS83, LM7805_TO220 and 7447. By type, the board carries 7 resistors, 5 switches, 3 ICs, 3 capacitors, 1 battery holder and 1 LED.
It belongs with the displays & leds and power & battery designs in this gallery.
From the project
An educational electronics project demonstrating the complete hardware design lifecycle. Features a 2-bit binary adder circuit designed in KiCad, fabricated using traditional chemical etching methods, and housed in a custom Fusion 360 3D-printed enclosure.
Complete Electronics Design Lifecycle Schematic Design • Chemical Etching • 3D-Printed Enclosure
A complete electronics design project demonstrating a 2-bit binary adder built from the ground up. This project encompasses schematic design, PCB layout, traditional chemical etching fabrication, and a custom 3D-printed enclosure.

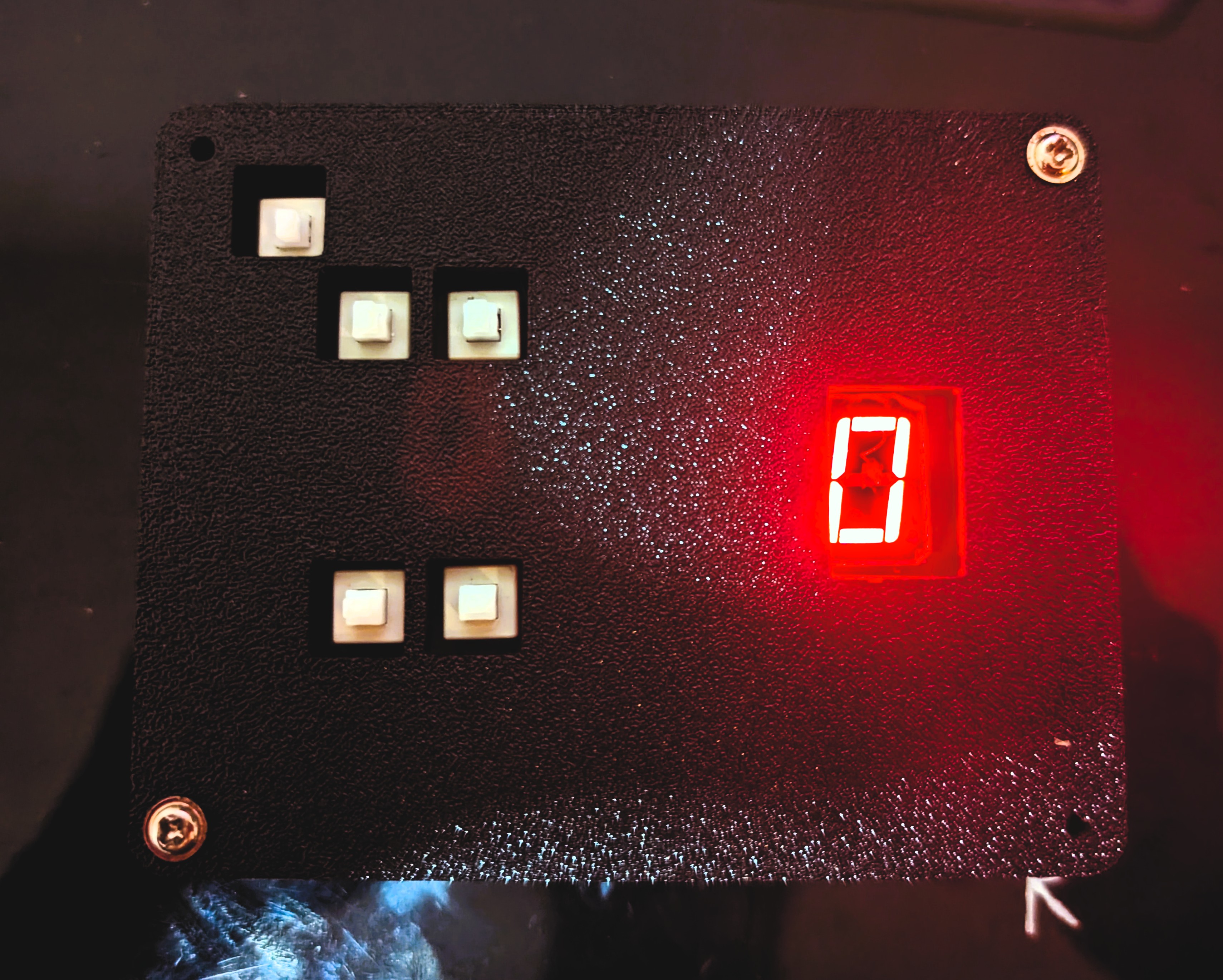

The device accepts two 2-bit binary numbers via toggle switches, calculates the sum using a 4-bit binary adder IC, and displays the decimal result on a 7-segment LED display.
Main components on the Traditional
Traditional bill of materials (BOM)
20 components, 14 distinct parts.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | 74LS83 | DIP-16_W7.62mm_Socket_LongPads | U1 |
| 1 | LM7805_TO220 | TO-220-3_Horizontal_TabDown | U3 |
| 1 | 7447 | DIP-16_W7.62mm_Socket_LongPads | U4 |
| 1 | 9V | JST_XH_B2B-XH-A_1x02_P2.50mm_Vertical | BT1 |
| 1 | A0 | SW_Push_2P2T_Toggle_CK_PVA2xxH2xxxxxxV2 | SW1 |
| 1 | A1 | SW_Push_2P2T_Toggle_CK_PVA2xxH2xxxxxxV2 | SW2 |
| 1 | B0 | SW_Push_2P2T_Toggle_CK_PVA2xxH2xxxxxxV2 | SW3 |
| 1 | B1 | SW_Push_2P2T_Toggle_CK_PVA2xxH2xxxxxxV2 | SW4 |
| 1 | POWER | SW_Push_2P2T_Toggle_CK_PVA2xxH2xxxxxxV2 | SW6 |
| 1 | LTS-6960HR | 7SegmentLED_LTS6760_LTS6780 | AFF1 |
| 1 | 10u | CP_Radial_D8.0mm_P3.50mm | C1 |
| 1 | 0.22u | CP_Radial_D8.0mm_P3.50mm | C2 |
| 1 | 0.1u | CP_Radial_D8.0mm_P3.50mm | C3 |
| 7 | 200R | R_Axial_DIN0207_L6.3mm_D2.5mm_P7.62mm_Horizontal | R1, R2, R3, R4, R5, R6, R7 |
Traditional design files
The KiCad project lives in the Ravinx001/traditional_pcb_design repository on GitHub; these links point at the commit this page was built from.
- LayoutKicad_Project_Files.kicad_pcb
- SchematicKicad_Project_Files.kicad_sch
Traditional: common questions
How big is the Traditional PCB?
The Traditional measures 76 × 99.5 mm, has 2 copper layers and is 1.6 mm thick.
How many components are on the Traditional?
20 components, from 14 distinct parts. The full bill of materials is listed on this page.
Where can I download the Traditional design files?
From the Ravinx001/traditional_pcb_design repository on GitHub, which has the KiCad layout and the schematic; the links under Design files point to each one.
Can I use the Traditional design in my own project?
Yes, under the terms of its MIT license, which Ravinx001 chose for the repository.
