LEDPLAT
About the LEDPLAT PCB
LEDPLAT is an open source PCB design by rayanyahiaoui13, published on GitHub under the GPL-3.0 license. It is a 2-layer board measuring 69.3 × 149.5 mm, with 26 components from 2 distinct parts.
By type, the board carries 24 diodes and 2 connectors.
It belongs with the displays & leds designs in this gallery.
From the project

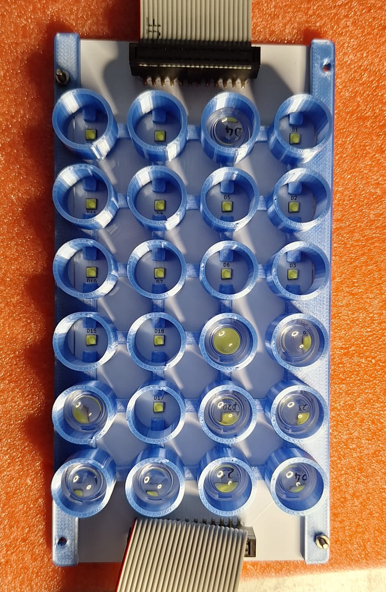

The goal of this system is to provide independent and precise control of a 24-LED matrix composed of high-power LEDs to independently illuminate 24 wells of a Greiner plate containing duckweed. This setup is integrated within a Jubilee robot architecture (a 3D printer transformed
The goal of this system is to provide independent and precise control of a 24-LED matrix composed of high-power LEDs to independently illuminate 24 wells of a Greiner plate containing duckweed. This setup is integrated within a Jubilee robot architecture (a 3D printer transformed into a plant culture robot). The architecture is divided into two main stages: two dedicated PCA9685 PWM controllers that handle 12 channels each, and individual power modules equipped with AL8861 components.
LEDPLAT bill of materials (BOM)
26 components, 2 distinct parts.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 2 | Conn_02x12_Odd_Even | PinHeader_2x12_P2.54mm_Vertical_SMD | J1, J2 |
| 24 | LED | LED_OSLON_SSL80 | D1, D2, D3, D4, D5, D6, D7, D8 +16 |
LEDPLAT design files
The KiCad project lives in the rayanyahiaoui13/24PowerLEDsController repository on GitHub; these links point at the commit this page was built from.
LEDPLAT: common questions
How big is the LEDPLAT PCB?
The LEDPLAT measures 69.3 × 149.5 mm, has 2 copper layers and is 1.6 mm thick.
How many components are on the LEDPLAT?
26 components, from 2 distinct parts. The full bill of materials is listed on this page.
Where can I download the LEDPLAT design files?
From the rayanyahiaoui13/24PowerLEDsController repository on GitHub, which has the KiCad layout and the schematic; the links under Design files point to each one.
Can I use the LEDPLAT design in my own project?
Yes, under the terms of its GPL-3.0 license, which rayanyahiaoui13 chose for the repository.
